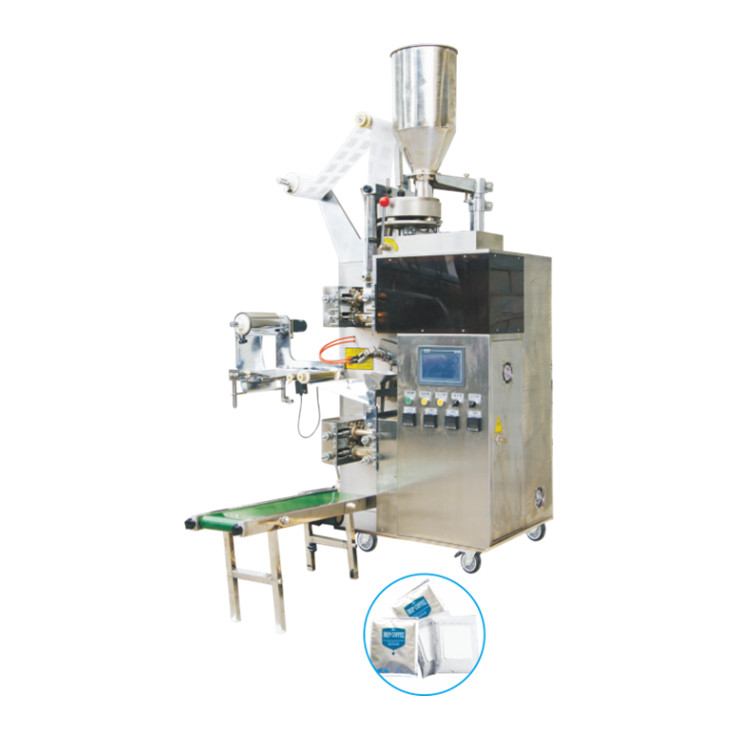

Non-woven Spout-Ear Coffee Inner and Outer Bag Packaging Machine Equipment

Series: Over-the-ear Coffee Packaging Machine

Product Model: QD-18-KF

Product Name: Over-Ear Coffee Inner and Outer Bag Packaging

Suitable Range: This machine is suitable for single-use packaging of small granular materials such as tea leaves, herbal tea, coffee, root diameter, and slices.

Key Features:

1. The outer packaging paper is controlled by a stepper motor, ensuring consistent bag length and precise positioning.

2. Utilizing a PID temperature controller for more precise temperature regulation.

3. Utilizes PLC control for the entire machine's operation, featuring a human-machine interface for easy operation.

4. All accessible material parts are made of SUS304 stainless steel, ensuring the product's hygiene and reliability.

5. Some work cylinders are equipped with *parts, ensuring their accuracy and stability in operation.

6. The machine is equipped with additional features for flat-cutting, date printing, and easy-tear notches.

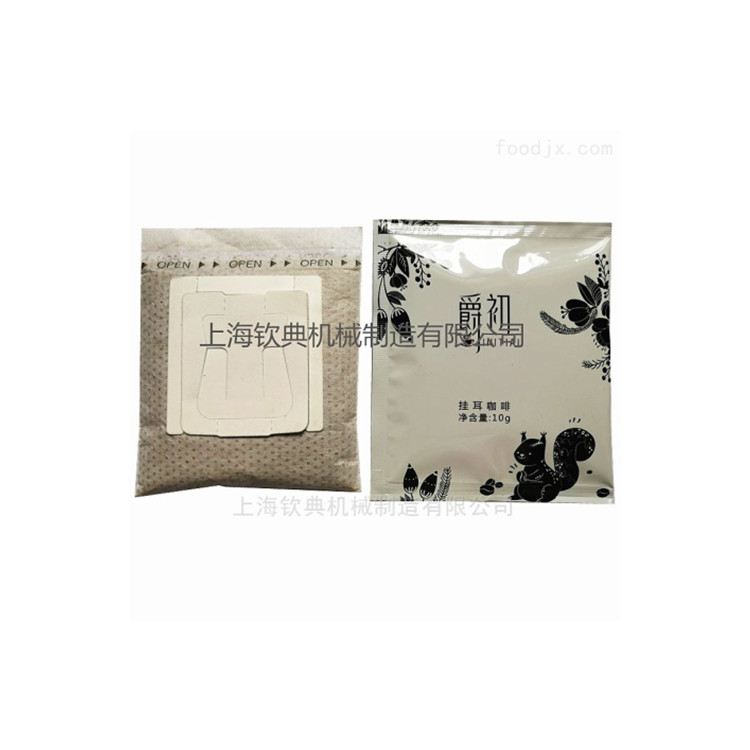

7. Packaging Materials: Over-ear coffee filter paper, aluminum foil composite film.

Key Technical Parameters:

Packaging Type: Three-Sided Seal

Outer Bag Size: Length 85~120mm; Width 75~100mm

Aluminized composite film width: 200mm, bagging specifications: 100x120mm）

Inner pocket size: Length 50~75mm; Width 50~90mm

Filter Paper Width: 180mm, Bagging Specifications: 90x75mm）

Packing Speed: 30~60 bags per minute

Packaging Capacity: 1~15g

Power: Single-phase 220V, 50Hz, 3.7KW

Total Machine Weight: 400 kg

Dimensions: Length 1200 x Width 900 x Height 1900mm
