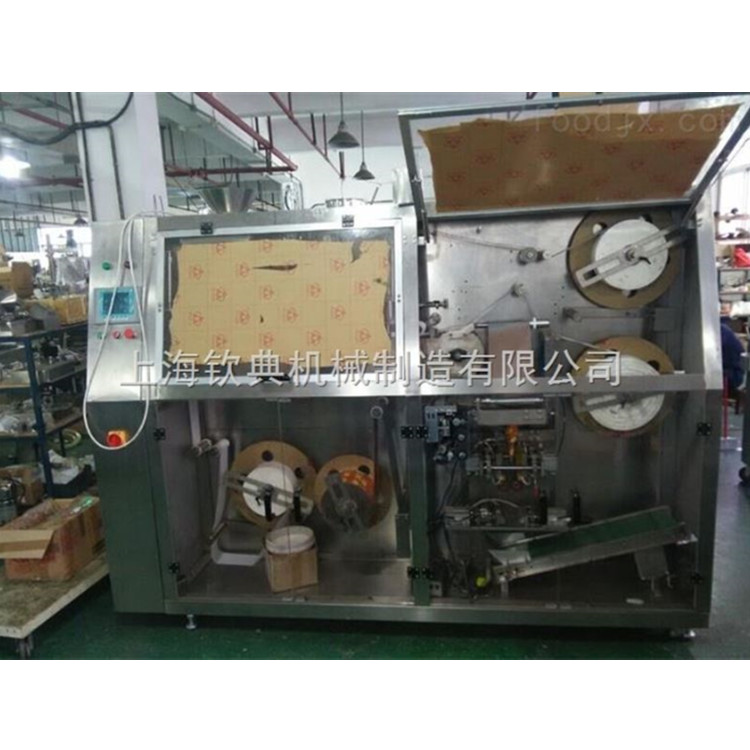

QD-496 Round Coffee Cake Inner and Outer Bag Packaging Machine

Section 1: Applicable to:

This machine is suitable for fine materials such as tea powder, coffee powder, and Chinese herbal powder.

II. Features:

This machine is equipped with automatic functions for bag-making, weighing, filling, sealing, and cutting.

Utilizing precise control systems to regulate the machine's operation, featuring a compact structure, user-friendly interface design, easy operation, easy adjustment, and simple maintenance.

The inner bag length is driven by a servo motor, ensuring precise positioning and stable bag length. The outer bag uses a photoelectric switch for positioning and stepper motor to pull the film, resulting in accurately and aesthetically pleasing bag length.

All contact materials are made of SUS304 stainless steel, ensuring the product's sanitation and reliability.

The machine is equipped with accessories for flat-cutting and easy-tear features.

III. Technical Specifications:

Bagging Size: Width (W): 85-90mm, Length (L): 100mm

Measuring Range: 4-10 grams per packet

Power: 220V/50Hz, Single Phase

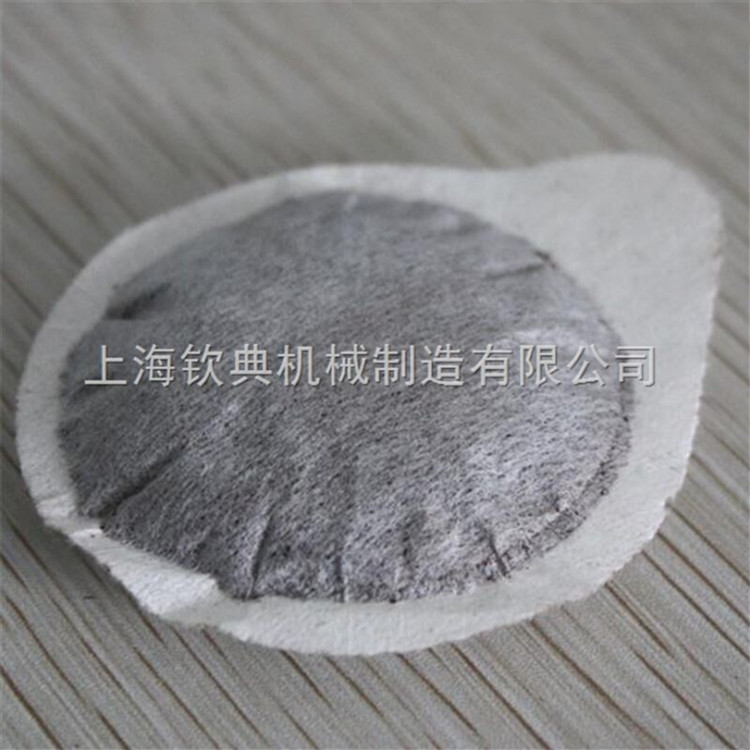

Seal Type: External bag with three-side sealing / internal bag with round sealing

Overall Weight: 2000 kg

Dimensions: (Length x Width x Height) 2500×850×1770mm
