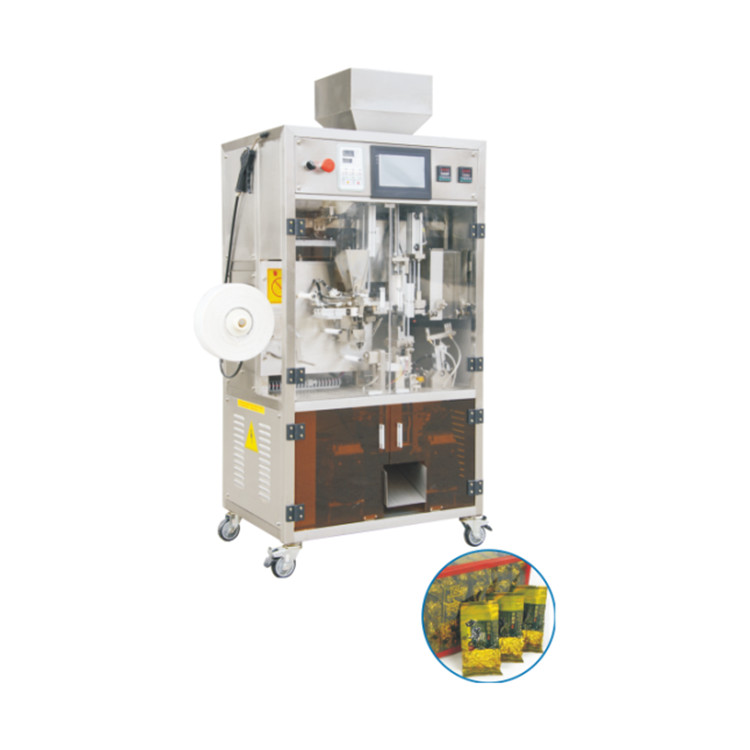

QD-48-11 External and Internal Pouch Tea Vacuum Packaging Machine

Applicable to:

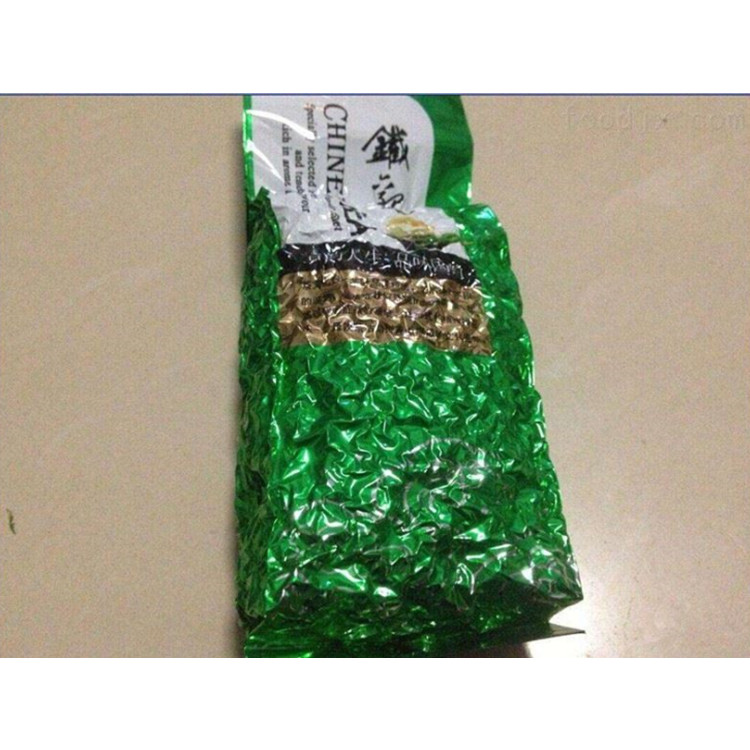

This machine is suitable for packaging various types of tea, including short strips, granules, needle-shaped, flat, sheet, and block shapes, among others (such as white tea, black tea, Pu'er tea, Tieguanyin, green tea, flower tea, chrysanthemum tea, goji berries, etc.).

Features:

Utilizing a PID temperature controller to regulate the sealing temperature ensures a flat seal and improves the yield of finished products.

Equipped with a PLC controller for overall machine operation and a touch screen operation interface for easy operation.

Some cylinders are originally imported, ensuring their accuracy and stability in operation.

This unit is capable of performing automatic weighing, bag picking, bag opening, vacuum packaging, and automatic sealing, among other one-time vacuum packaging functions.

Fast vacuum-packing, quick packaging, precise measurement, and easy operation.

Each person can manage over 10 machines on their own, significantly reducing labor costs.

Technical Specifications:

Bagging Size: Width (W): 50-58 mm, Length (L): 105-130 mm

Packaging speed: Approximately 20 bags per minute

Measurement Range: 3-15 g

Power Source: 220V/ 50Hz/ 1.8KW

Gas Source 0.6 MPa

Air Consumption: 0.30 m³/min

Overall Weight: 120 kg

Dimensions (Length x Width x Height): 580*650*1400mm
