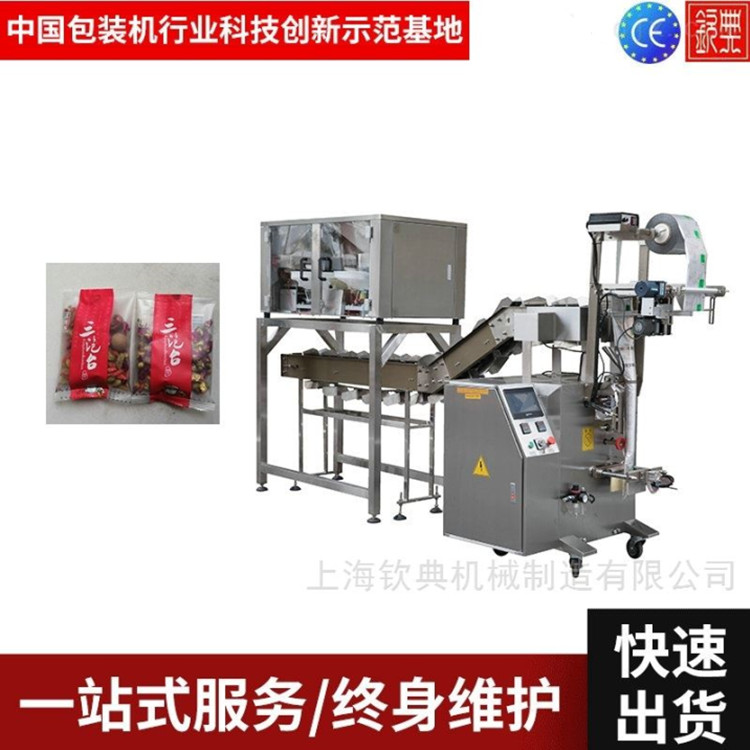

Automatic Full-Automatic Flower Tea and Mixed Tea Granules Cereal Packaging Machine

Key Features:

The main unit features a touch screen and a stable, reliable high-precision microcontroller for control.

2. Integrated design with an intuitive human-machine interface, easy to operate;

3. Utilizes a spiral ascending material channel to avoid the disadvantage of traditional straight-vibration structures prone to clogging.

4. Multi-point shock absorption mechanism, low machine vibration and noise

5. Users of packaging special materials can adjust parameters as needed and save them for future use.

Application Range:

This machine can automatically perform bag-making, measurement, filling, sealing, label positioning, cutting, counting, and variable speed control functions, suitable for packaging granulated tea leaves, strip tea, flower tea, broken tea, blended tea, as well as quantitative packaging of small particles like seeds and medicines. It features a food-grade hopper, vibration control for tea discharge with photoelectric eyes, and a large single storage bin.

Performance Parameters:

Model: QD-60DS (With Conveyor Bucket)

Bagging Volume: 20-200 ML

Bagging Size: Length (L) 40-180MM, Width (W) 40-140MM

Measuring Range: 1-20 grams per packet (special specifications available upon request)

Packing Speed: 25-40 bags per minute

Packaging Precision: ±0.2 (Special specifications available upon request)

Input Voltage: 220V/50Hz

Total Power: 1.6 kW

Overall Weight: 350 kg

Dimensions: 800mm x 640mm x 1600mm (Length does not include the conveyor belt)
