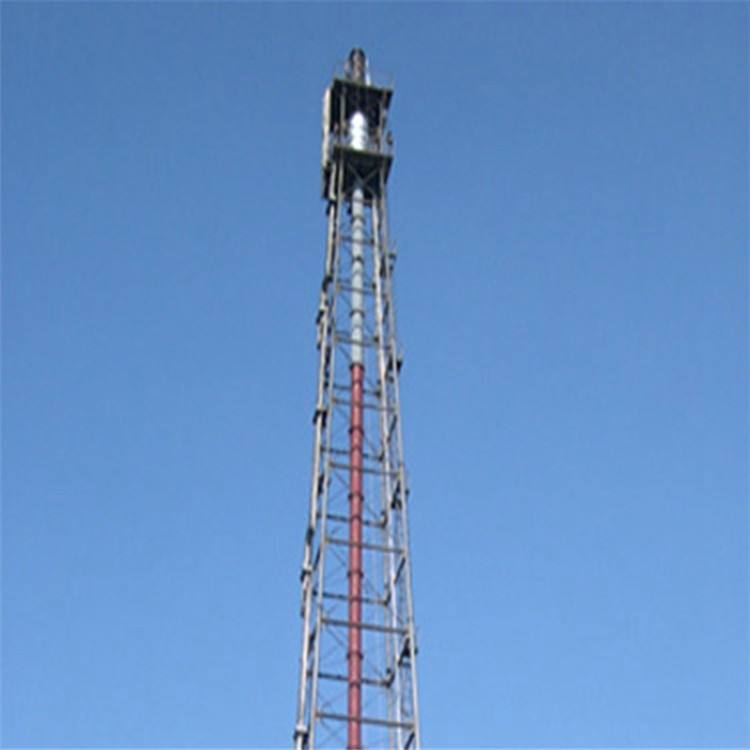

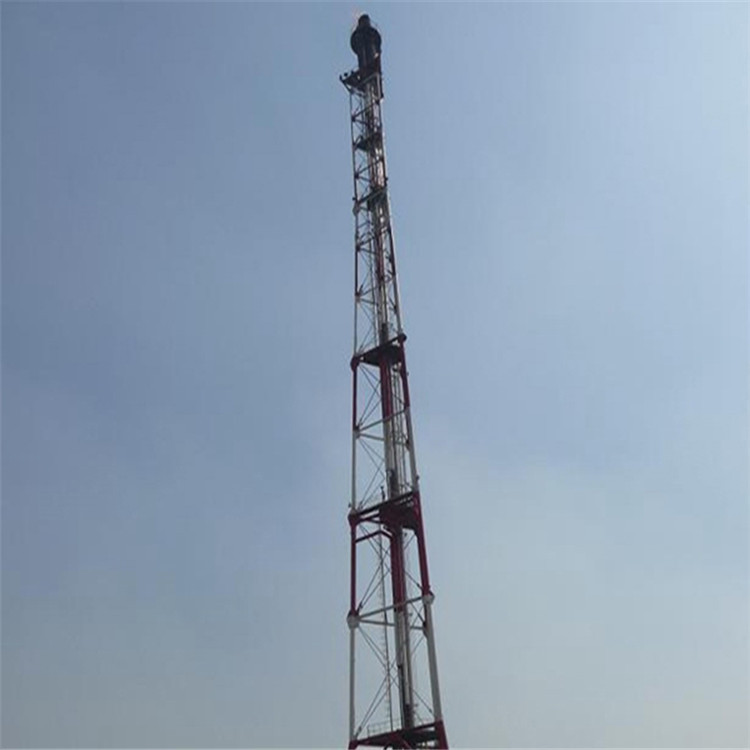

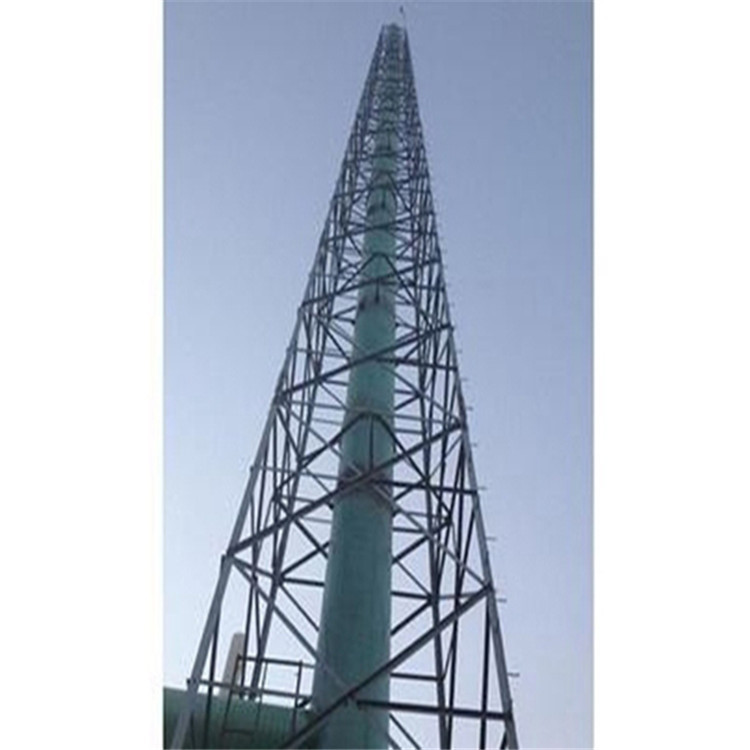

Chimney towers and chimneys features:

1. High-Temperature Resistance: In accordance with the general flue gas temperature of around 200℃ in boilers and the high temperature of diesel generator sets ranging from 480℃ to 680℃, various thicknesses of insulating materials such as aluminum silicate and ultra-fine glass wool are set. This ensures that the exterior wall temperature of the chimney does not exceed 50℃ as specified in the "Chimney Design Standards."

2. Rational Structure: The inner and outer layers of the chimney are connected with special stainless steel prefabricated connectors, ensuring precise positioning and high strength. The sections of the chimney are connected using lightweight TFD flanges (U-shaped clips), reducing the weight of the chimney and saving valuable architectural space occupied by traditional flange connection techniques. This improves the space utilization efficiency of the building and meets the installation requirements of narrow shafts.

3. Advanced Technology: Utilizes seamless precision TIG welding technique, single-sided welding with double-sided shaping, ensuring the longevity of the chimney.

4. Long service life: Designed for a service life of 30-50 years.

5. Low maintenance costs: No maintenance required during the normal working life of the product.

6. Easy Installation: Chimney sections are pre-formed in the workshop and assembled on-site, streamlining the installation process. This ensures the quality of manufacturing for the inner lining, insulation, and outer shell, among other components, guaranteeing the overall quality of the project.

7. One-stop service: Full range of chimney accessories available for daily supply, streamlining the procurement process.
