I. Product Description

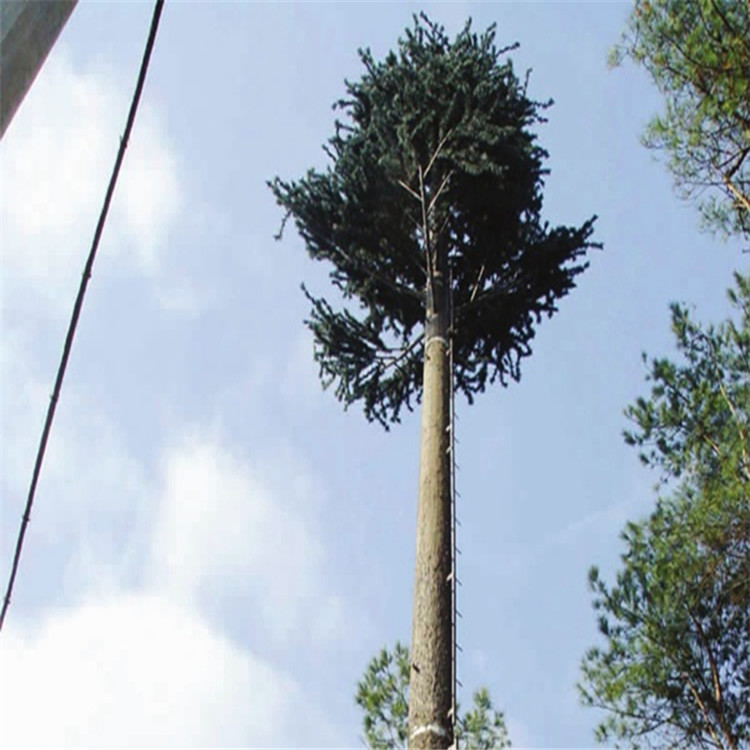

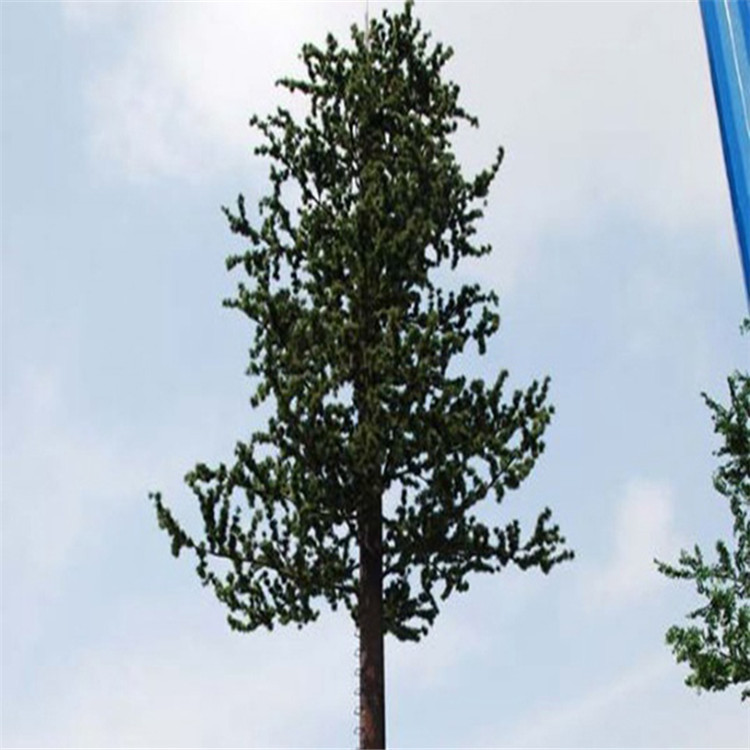

Bionic Tree Lightning Rod, also known as a bionic tree, mimics the shape of a tree to communicate poles, using artificial leaves and trunks to decorate antenna masts and antennas, thereby achieving camouflage and beautification of mobile communication base station antennas.
II. Advantages
Simulated Tree Lightning Rods/Bio-mimetic Tree Lightning Rods/Bio-mimetic Tower Lightning Rods are designed to harmonize with the natural environment in ancient architectural areas and scenic spots, effectively solving the difficulty of establishing stations in scenic areas. These products use synthetic resin as the binder, supplemented by high-grade chemical raw materials to create plastic objects, serving as sculptural base materials for trunks, tree joints, bark, roots, etc. They are coated with high-grade acrylic coatings to decorate and protect the surface, enhancing durability with a promise of no discoloration for 5 years and no cracking or peeling for 10 years, while also being recoatable.
1. Delicately crafted with lifelike structure and elegant appearance. As the biomorphic tower is modeled after actual plants, it closely resembles the real counterpart. Thanks to its exquisite craftsmanship, it blends seamlessly into natural settings like scenic areas, parks, and squares with tree clusters of the same species. The innovative large line frame replaces the traditional platform, hidden among the foliage without compromising the tower's overall aesthetics. The humanized design of the biomorphic tower exudes a vibrant, contemporary vibe.
2. Strong structural stability and good technical performance. The tower base is constructed with a standalone reinforced concrete structure, effectively preventing uneven subsidence of the foundation. The feedline fixing bracket is located inside the tower body, protecting the feedline from wind, rain, and sun exposure, thereby addressing the factors that can damage the feedline and extending its service life. Each section of the tower is connected with precision-machined internal flanges, ensuring concentricity and verticality, and avoiding safety risks associated with other connection methods.
3. Compact land use with significant economic benefits. The tower adopts a conical single-tube structure, occupying only 1-2 square meters of land, with the foundation at 4-6 square meters. Additionally, no base station fence is required, thereby reducing the land acquisition area for users and saving costs, especially in urban and suburban areas.
4. Long service life and durable appearance due to the relatively small external force on the tower and its reasonable structure and high-quality materials, the iron tower has a longer lifespan. The surface is coated with hot-dipped galvanized for excellent corrosion resistance. The surface is also fitted with simulated bark, which, like the simulated branches and leaves, is made from a high-grade composite material that combines waterproofing, fire resistance, and corrosion resistance, ensuring the appearance remains intact for a long time without peeling.
5. Our biomimetic towers include pine trees, broad-leaved trees, bamboo, banana trees, palm trees, coconut trees, and other biomimetic towers. We can also process and make them according to customer requirements.
Section 3: Technical Features
Antenna mechanical down tilt adjustment range: 0° to 15°, horizontal azimuth can be adjusted freely.
2. The rod body is hot-dipped galvanized and then coated with simulated bark, which effectively enhances both aesthetics and anti-corrosion properties.
3. The overall wind resistance of the rod body is designed for 12-level gales.
4. Branches are made of flame-retardant insulating materials, with not less than 13 layers, each layer containing at least 4 branches. The lower branches of the 15m beautification tree are 5.3m from the ground, with a layer spacing of 1.2m; the lower branches of the 20m beautification tree are 6.9m from the ground, with a layer spacing of 1.2m; the lower branches of the 25m beautification tree are 10.4m from the ground, with a layer spacing of 1.2m. Implementation will be based on actual site conditions and the requirements of the construction party.
5. The bark is made of glass fiber reinforced plastic or silicone rubber (the manufacturer must respond to the specific material used), with a realistic surface texture. It is coated with hot-dipped galvanized steel, FRP, and environmentally friendly仿生漆. The color is camouflage brown/dark brown, and can be customized according to customer requirements; the leaf shapes can be coniferous or broad-leaved, implemented as per the actual situation and requirements of the construction party.
6. The bark must fully encase the inner steel pipe, ensuring strong adhesion to the pipe and preventing leakage from rainwater.
7. Genuine leaves must be made of PVC or PE material, with colors and shapes similar to surrounding trees. The leaf layer of 15 meters should not be less than 11 layers, 20 meters should not be less than 16 layers, and 25 meters should not be less than 21 layers, and can be customized according to customer requirements.
