Product Description and Product Advantages:
The double-row bottle capping servo rotation machine is mainly used for capping plastic and metal lids, featuring automatic lid loading, pneumatic gripper lid picking, and balanced rotation. It applies even force during sealing, first gripping the cap with the pneumatic gripper and then pressing and rotating to seal. The machine boasts a beautiful appearance, compact structure, reasonable design, stable operation, low noise, fast sealing speed, and high-quality sealing. It is suitable for mass production in various beverage, food, and daily chemical factories.
1. User-friendly interface setup, intuitive operation, PLC control for easy handling, automatic counting
2. Fully automated for capping, bottle clamping, conveying, and screwing. The machine boasts excellent stability and easy adjustment.
3. Meets food production requirements; made of stainless steel material + lightweight aluminum profiles
4. Excellent flexibility; adjustable to bottle height and cap size, with tightness customizable to customer requirements.

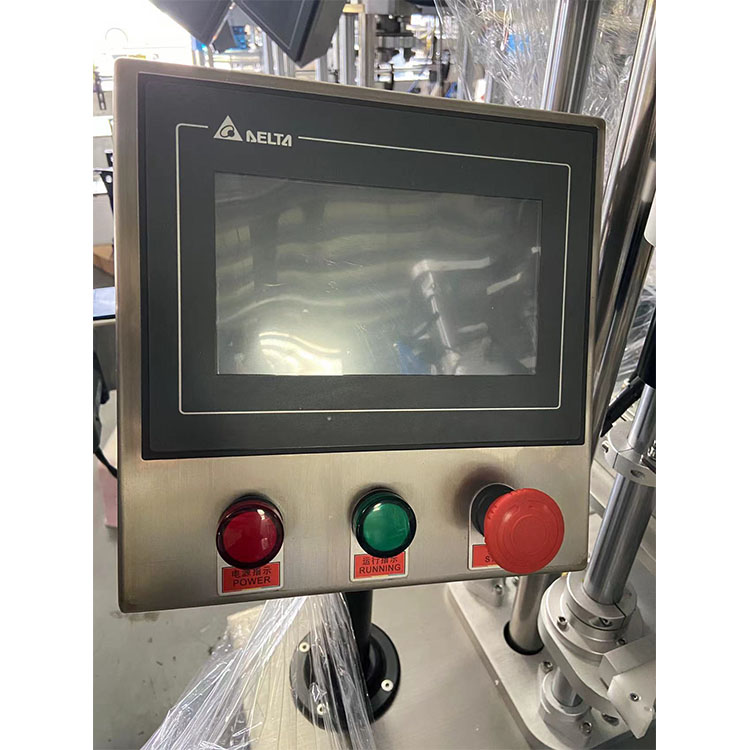

5. Servo control with adjustable torque, allowing the拧盖力度 to be adjusted via a touch screen, thereby regulating the tightness of the cap.

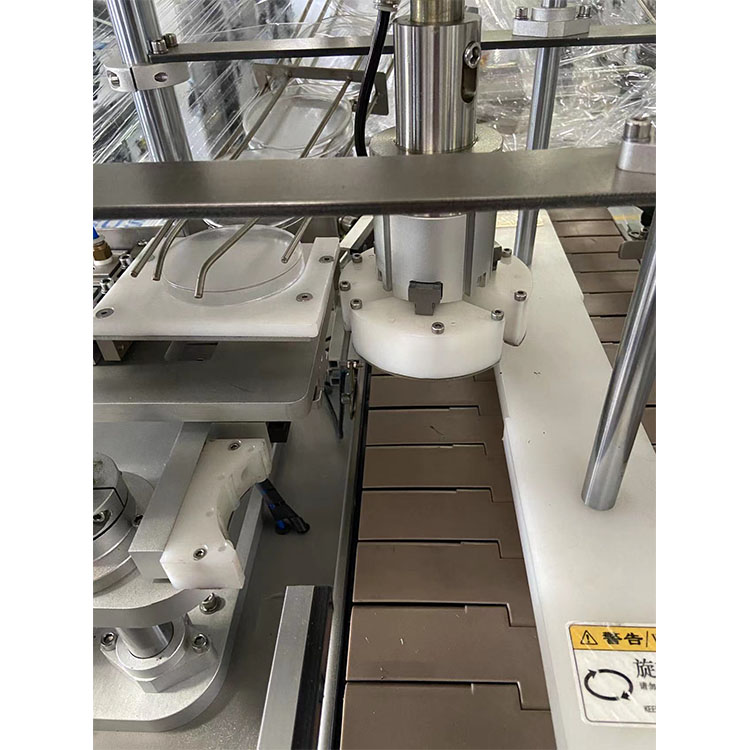

6. Bottom cover gripper for picking, avoiding the issue of unevenly mounted lids on lid-style covers, for greater stability and reliability.
Product Specifications:
1. Bottom Cover Style: Clamp-type Bottom Cover.
2. Lid Handling Method: Lift-type lid handling, different lids require changing of the guide rail and lid delivery component
3. Bottom Lid Speed: 1800~2400 bottles/hour (actual measurement based on lid size)
4. Cap Rotation Method: Servo limited-torque gripping rotation cap
5. Cap Turning Speed: 1800~2400 bottles/hour (actual measurement based on cap size)
6. The conveyor belt features 114mm wide POM chain links, with a belt surface height from the ground of 850mm.
6. Total Power: 1.4 kW
7. The shell material is made of 304 stainless steel plate.
8. Screw Cap Motor: Delta Servo Motor
9. Dimensions: Length 2800mm x Width 1400mm x Height 2100mm
10. Power Supply: AC 220V, 50/60Hz
11. Air Consumption (Compressed Air): 0.5-0.6 MPA
12. Current: 7A
13. Applicable Range:罐径 φ30-φ103mm, 罐高 50-220mm
