We know that color steel panels, when exposed to wind and sun for a long time, will experience aging of the surface paint layer, leading to the mentioned issue where oxygen in the air comes into direct contact with the substrate, causing rust. Therefore, the process of renovation and anti-corrosion is essentially to isolate the substrate from direct air contact using paint, creating a completely sealed environment for the substrate. This prevents it from reacting with oxygen in the air, achieving the purpose of anti-corrosion and rust prevention.
Water-based paint for color steel roof, environmentally friendly, non-flammable and non-explosive, resistant to aging and yellowing, water-resistant, maintains surface color after coating, retains vibrant colors, strong surface film resistance to aging, UV-resistant, paint film withstands high temperatures of 60-80°C without issues, low temperatures down to -40°C without issues, bubble-free for 7x24 hours, effectively extending service life by 6-10 years.
Updating and renovating a color steel roof typically involves rust removal, sanding, polishing, and then applying corrosion-resistant paint. However, traditional rust-proofing materials, due to inadequate environmental protection and their pungent odor, can lead to significant air pollution. Moreover, they also increase labor costs and the difficulty of construction projects.
The painted layer on the galvanized steel roof panels can undergo water-based anti-rust treatment and moisture-proof maintenance, even in acidic or alkaline natural environments over the long term. The lifespan of the steel panels can still reach 5-10 years. The product's highlighted anti-rust treatment properties are particularly effective, especially for roofs with severe rust, yielding significant results.
Galvanized steel refinishing paint, suitable for metal roof surfaces such as color steel, metal, galvanized, and steel structures, offering high and low-temperature corrosion protection.
Features of Color Steel Roofing Paint
1. Strong rust prevention: The advanced anti-corrosion additives incorporated into the product ensure the coating offers superior resistance to acids and alkalis and corrosion, far surpassing decorative functions and outperforming various self-drying paints and alkyd paints.
2. Enhanced Weather Resistance: Significantly improves the color steel sheet's ability to withstand high temperatures, resist ultraviolet radiation, and aging.
3. Paint Film: The finish is glossy and bright, colors can be customized to meet customer requirements. Exposed to the outdoors for a long time, it can ensure no significant discoloration for up to 3-5 years.
4. Excellent Film Formation: The paint film is durable, crack-resistant, has strong adhesion, and does not flake off.
5. High compatibility: Compatible with various oil-based or water-based epoxy paints, polyurethane, fluorocarbon, propionic acid, and other primers, as well as with existing paint surfaces.
6. Easy Construction: The product is easy to apply with high coating rate and fast drying. It can be applied using a roller brush or mechanical spraying equipment.
Avoid direct sunlight exposure or prolonged exposure to high temperatures during summer. Maintain temperatures below 35℃ and store in a cool, well-ventilated area to extend shelf life; generally, the product should not be stored for more than 1 year and should be used within 6 months.
Factory Roof Color Steel Sheet Renovation: Water-based Renovation Paint, Jiusheng Custom Construction – After prolonged exposure to wind and rain, color steel sheets may develop rust, aging, discoloration, and chalking of the paint film. When these issues are detected in the color steel sheets, it is neither feasible to send them back to the factory for respraying nor practical to replace the roof directly, as it would be more costly and inefficient.
Drying Time: Surface dry in 1 hour, fully dry in 24 hours, recoating interval 2 hours.
One, odorless, harmless to human health, truly green.
Non-flammable and non-explosive, easy to transport.
Three, dilute with tap water; also clean construction tools, equipment, and containers with tap water, significantly reducing coating costs.
Four, faster drying time increases efficiency and reduces labor costs.
Section 5: Applicable Range: Industries such as automotive, marine, grid structures, machinery manufacturing, containers, railroads, bridges, wind turbine blades, and steel structures.
Cautionary Notes
Film must be completely dry before filling with water; no outdoor work should be done in rainy or foggy weather. No water should be added to the paint; high humidity and enclosed spaces can slow down the film-forming speed. Store and transport the product between 5°C to 40°C, protecting from sun and rain, and fire, in a well-ventilated and cool area. Shelf life is 12 months.
Recommended Dosage
1kg/2-4 sq. meters
One, Color steel refinishing paint application range:
Ideal for high and low temperature corrosion protection treatment on metal surfaces such as color steel roof, metal roof, galvanized steel roof, and steel structure roof.
Section II: Features of Color Steel Roofing Paint
1. Strong rust prevention: The advanced anti-corrosion additives in the product ensure the paint film boasts excellent resistance to acids, alkalis, and corrosion. Not just decorative, its performance far exceeds that of various self-drying paints and alkyd paints.
2. Strong weather resistance: Significantly improves the color steel sheet's ability to withstand high temperatures, resist ultraviolet rays, and aging.
3. Preserve Strength: The paint film has a lustrous and bright finish, and colors can be custom mixed to meet customer requirements. Exposed to the outdoors for long periods, it ensures there is no significant color change within 3-5 years.
4. Excellent film-forming properties: coating is tough, crack-resistant, has strong adhesion, and does not flake off.
5. High compatibility: Can be matched with various oil or water-based epoxy paints, polyurethane, fluorocarbon, acrylic, and other types of primers, as well as has good compatibility with old paint surfaces.
6. Easy Installation: The product is easy to apply with high coating rate and quick drying. Can be applied using a roller brush or mechanical spraying equipment.
Color steel panel refinishing paint technical specifications: In container, free of lumps; after stirring, presents a uniform consistency.
Metal roof renovation construction: Painting is convenient and unobstructed.
Paint Consumption: 5 square meters per kilogram (twice coated).
Drying Time: Surface dry in 1 hour, fully dry in 24 hours, recoating interval 2 hours
III. Reasons for Regularly Renovating Color Steel Roofing:
1. Due to rainfall and environmental climate factors, there may be some impact on the color steel roof, especially as the roof has been in use for a long time, leading to varying degrees of rusting and corrosion.
2. Color steel sheet material contains a high iron content, and upon contact with acids, alkalis, or organic solvents, it will undergo a chemical reaction to form iron oxide, commonly known as rust. Severe rusting of color steel sheets can lead to corrosion perforations.
3. During rainy seasons, the roof surface is affected by environmental elements and the oxidation decomposition of acidic and alkaline rainwater. The rain runs off the color steel panels, leaving rust stains. Over time, the roof has developed extensive rusting areas.
If not timely for anti-corrosion and renovation, the color steel plate will gradually rust more severely, even to the point of穿孔, leading to more serious water leakage. By then, the repair will not only involve anti-corrosion and renovation but also require waterproofing and anti-corrosion for the entire roof, resulting in a higher cost.
4. The roof's color steel sheets are of good quality, but most of the roof now has rust spots, with some areas being quite severe. If not timely treated with anti-corrosion and renovation to prevent further rusting, the longer the rusting goes on, the more likely the color steel sheets on the roof will develop rust holes. By then, the cost of repair will increase.
It is recommended to sand and remove rust from the corroded areas of the roof as soon as possible, and perform anti-corrosion renovation work to prevent re-oxidation and rust. After anti-corrosion treatment, not only is the color steel roof protected in a timely manner, but the lifespan of the roof panels is also extended, and the color steel roof is rejuvenated!
Color steel roofing water-based anti-corrosion paint
1: Primarily used for the second-time renovation of steel structure color steel panels, offering advantages such as simple construction, low cost, and long warranty periods.
2: Surface should be primed first, followed by rust removal and then two coats of paint.
Waterproof and rust-inhibiting renovation, color steel roofing paint with five years of no fading and eight years without cracking or peeling: First, clean the dust on the surface of the color steel roofing. Then, use an electric grinding wheel or wire brush, and sandpaper to sand the rust and oxides on the metal surface clean. Use high-pressure water to wash away the floating dust on the metal surface. For oil stains, use gasoline or solvent for cleaning. Pay special attention to the rust removal at the bolt connections and welds, ensuring the rust removal level reaches ST2, exposing the metal luster completely. Reinforcement of the metal roof without loosening, rust, or dust; perform the following anti-corrosion renovation when the roof is dry.
When using paint, ensure it is well-mixed and free of color variations before applying. For corrosion-proofing of color steel tiles, a two-coat method is employed for application (one coat of anti-rust primer; two coats of finish paint). After the coating is fully dry, the film thickness should be over 0.15mm.
The process of renovating colored steel roofing is not as easy as one might imagine, but it can save a significant amount of costs, making it widely favored by people in real life.
Most applications of color steel panels are outdoors, where they must withstand harsh climatic conditions. Over time, the surface is inevitable subject to varying degrees of corrosion, rust, and leakage issues. After prolonged use, considering a renovation of the color steel panels is necessary to extend their lifespan. Renovating with water-based color steel panel renovation paint is a good choice.
Color steel panels, also known as colored corrugated sheets, are made by rolling and cold bending colored coated steel plates into various wave patterns. They are suitable for industrial and residential buildings, warehouses, special structures, large-span steel structures, and for roofing, walling, and interior and exterior decoration. They feature light weight, high strength, rich colors, easy and quick installation, earthquake resistance, fire resistance, waterproofing, long lifespan, and maintenance-free characteristics. They are primarily used in industrial factories, self-built simple houses, containers, and have been widely applied. Now, let's discuss the construction process for the renovation of color steel panels.
Before refinishing the color steel roof with paint, the first thing you need to do is inspect the corrosion condition of the color steel roof. If there is rust, it should be sanded first to effectively remove the rust from the corroded areas. It is recommended not to take shortcuts by using so-called rust inhibitors; the practical results are not as good as those from a proper sanding and rust removal process.
After polishing is complete, dust and debris from the polishing process should be cleaned up.
Next, employ high-pressure water jets to rinse off the surface, removing any rust and loose dust left from sanding, ensuring the board is clean to create favorable conditions for the application of water-based paint for the renovation of the steel tile roof.
After the surface water has dried, apply the galvanized steel sheet renovation undercoat spray. Once the undercoat is dry, apply the renovation topcoat. Whether applying the undercoat or topcoat, mix the galvanized steel sheet renovation paint thoroughly before use. Ensure the paint film adheres firmly to the base material and between layers without peeling or flaking; the dry film thickness of each layer meets the spraying requirements; the base surface is flat, with no unevenness; there are no defects like runs, drips, or pinholes. This ensures a glossy, full paint film with uniform color and luster; the overall effect is harmonious and aesthetically pleasing.
Step 1: Roof Cleaning
Including roof screw installation and reinforcement at loose panels, sand the area twice with a grinder, then clean thoroughly with high-pressure water, inspecting for roof leaks.
Step Two: Roof Waterproofing Construction
The sides of the light panel are coated with a special waterproof base coat, then polyester fabric is applied, followed by a waterproof top coat. Additional layer treatment is done around the roof structure, and the roof is inspected to ensure there are no leakage points.

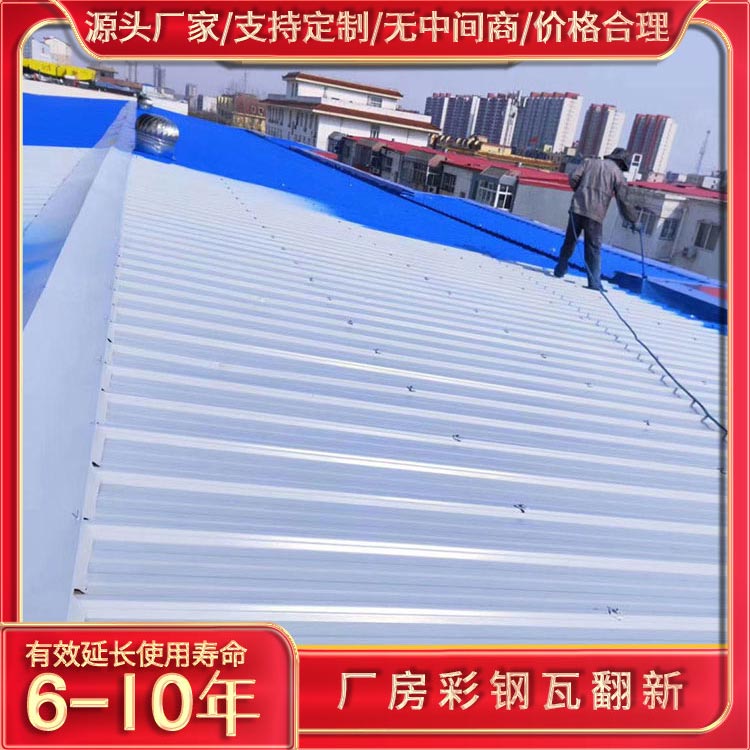

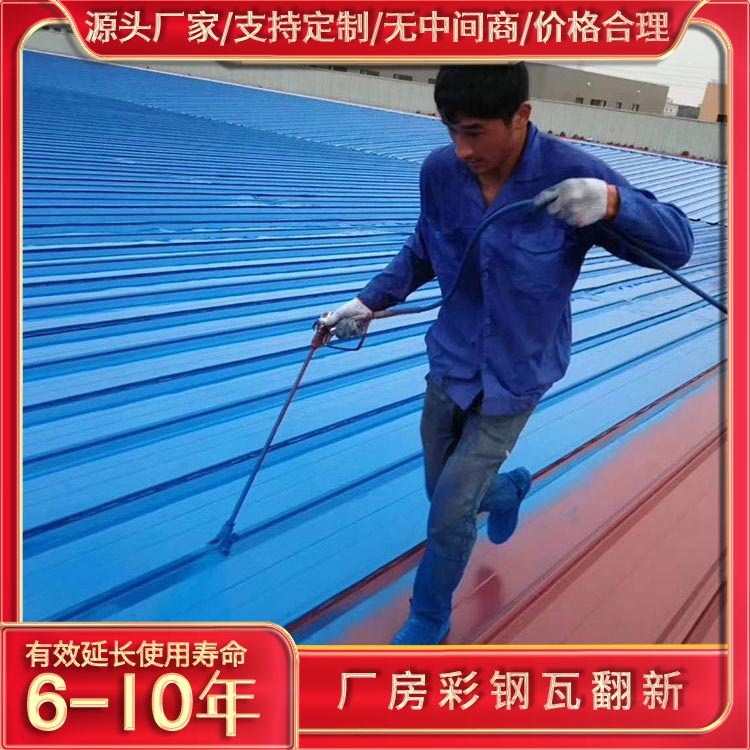

Step Three: Overall Roof Coating with Primer and Topcoat
Two coats of durable rust-inhibiting primer specifically for re-coating galvanized steel roof tiles are applied to enhance their corrosion resistance. After full drying, two coats of the same series CW310 custom anti-corrosion finish paint are applied, providing the roof with excellent anti-aging, high-temperature resistance, corrosion resistance, and acid-base resistance, thus extending its lifespan.
Step 4: Apply base and finish paint to the facade walls
The masonry walls are rusted and cleaned using an angle grinder, followed by reinforcing the waistline sections and window perimeters with two layers of glass fiber reinforced with epoxy resin. The surface should be flat, without any hollow spots or wrinkles. After that, apply a single coat of CW308 (thick paste) durable weatherproof undercoat for color steel tiles. Then, apply two coats of CW310 customized weather-resistant topcoat for color steel tiles.
Step 5: Conduct a comprehensive inspection of the roof
Ensure all areas of the roof are fully constructed and make necessary repairs.
Construction Plan
The coastal regions, primarily characterized by hilly and mountainous terrain, enjoy a subtropical monsoon climate, which is warm and humid, classifying them as humid areas. Based on the climate and our understanding of the on-site work, we have preliminarily identified the cause of the factory building's rust. Considering the installation of photovoltaic solar panels on the iron horse factory roof and the environmental requirements, which demand resistance to water and salt雾, and heavy corrosion prevention, we have customized the renovation and corrosion prevention construction process for the factory's color steel roof. We recommend a high-performance corrosion prevention system solution. The project is planned to use the CW series color steel roof renovation paint, which will provide long-lasting corrosion prevention after renovation.
Step 1: Roof Cleaning Work.
Including roof screw replacement and reinforcement of loose panels, the surface is sanded twice using our self-developed color steel roof renovation and anti-corrosion machine, followed by a thorough cleaning with ultra-high-pressure water, and then inspecting for roof leaks. Leak treatment is performed first.
Step Two: Apply rust-inhibiting primer and corrosion-resistant topcoat.
A single coating of CW series color steel roof renovation paint is applied to the entire roof, enhancing the corrosion resistance of the color steel tiles. After full drying, two coatings of custom gray corrosion-resistant topcoat are applied, providing the roof with excellent resistance to aging, high temperatures, corrosion, and acidity/alkalinity, thereby extending its lifespan.
Step Three: Identify and Fill Gaps.
Conduct a comprehensive inspection of the roof to ensure all areas are properly constructed.
The technical site survey analyzes the surrounding environment and the warehouse production of the factory, identifying the primary cause of roof rust.
The region experiences a high humidity and rainy climate, making the roof prone to corrosion.
2. Workshop production grinding results in floating rust, acid washing parts generates corrosive gases upon heating.
3. The workshop is equipped with baking equipment, which generates high temperatures and causes gradual corrosion to the roof.
4. No regular roof inspections are conducted. Precautionary protective measures should be taken in advance.
We use polishing and spray painting techniques, first thoroughly cleaning the base material to remove surface rust and flaking layers through sanding, allowing the primer to adhere well to the base material for rust prevention and corrosion resistance. After sanding, we perform high-pressure cleaning on the entire color steel tile roof renovation, using high-pressure water jets from top to bottom to rinse off rust particles and stains on the surface. We then apply one coat of water-based color steel tile specialized primer, followed by two coats of acid-resistant, alkali-resistant, and weather-resistant specialized topcoat after drying. This renovated color steel tile roof can be used for over 8 years.
