Shore hardness tester
The Shore hardness tester is used to measure the hardness of soft plastics, synthetic rubber, felt, leather, and printing rollerswait
Meets the following standards:
Rubber pocket hardness tester indentation hardness test methodGB/T 531-1999； Plastic Shore Hardness Test Method GB/T 2411-80; DIN 53505； ISO 868； ISO 7619； ASTMD 2240； JISK7215。
*Average calculation function.
*Lock function.
*Undervoltage alarm indication function.
*Communication with PC is achieved through "USB data cable output" and "RS-232 data cable output".
*Provide Bluetooth data output options.
display parameters | Hardness value, average value, |
measurement range | 0 ~ 100 H |
accuracy | ＜ 1% H |
resolution | 0.1 H |
Auto Shutdown | |
Battery voltage indication | Low voltage prompt |
Usage environment | Temperature: 0~40 ℃ Humidity: 10~90% RH |
power supply | 4 No. 7 batteries |
Overall dimensions | 162 x 65 x 28 mm |
weight | 170 g (excluding battery) |
Product model information:
model | probe | Measurable materials | hardness value |
A | 0.79 truncated cone shape | Soft plastic, rubber, synthetic rubber, felt, leather, printing roller | 20 ~ 90 A |
B | R 0.1 cone shape | Medium hard rubber material and typewriter rollers, etc | Greater than 90 A, less than 20 D |
C | 0.79 truncated cone shape | Plastic and intermediate hard rubber materials | Greater than 90 B, less than 20 D |
D | R 0.1 cone shape | Fiber plastic, hard rubber, hard plastic materials, organic glass, rigid thermoplastic, laminated wood, printing brush roller, vinyl board Cellulose acetate, etc | Greater than 90 A |
DO | R 1.2 Hemisphere | Plastic to hard rubber material | Greater than 90 ° C and less than 20 ° D |
O | R 1.2 Hemisphere | Soft elastic materials, printing rollers, textile fabrics, cotton fibers, acrylic fibers, synthetic silk, Beilong | Less than 20 DO |
OO | R 1.2 Hemisphere | Sponge, foam rubber, silica gel, gel materials | Less than 20 O |
E | R 2.5 Half spherical | Hard sponge EVA | greater than90 DO， Less than 20 D
|
Standard Appendix:
1. Host 1 unit
2. Portable box 1 of them
3. Instruction manual 1 copy
4. Shore gauge needle length test block ... 1 yuan
Optional Accessories :
1. Shore hardness tester testing rack

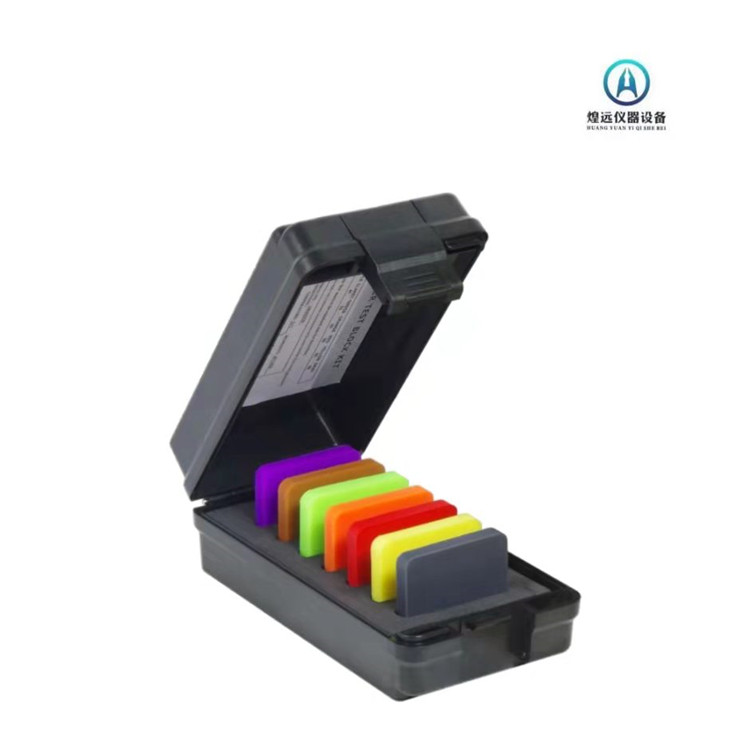

2. Shore rubber hardness test block (A/D type)
