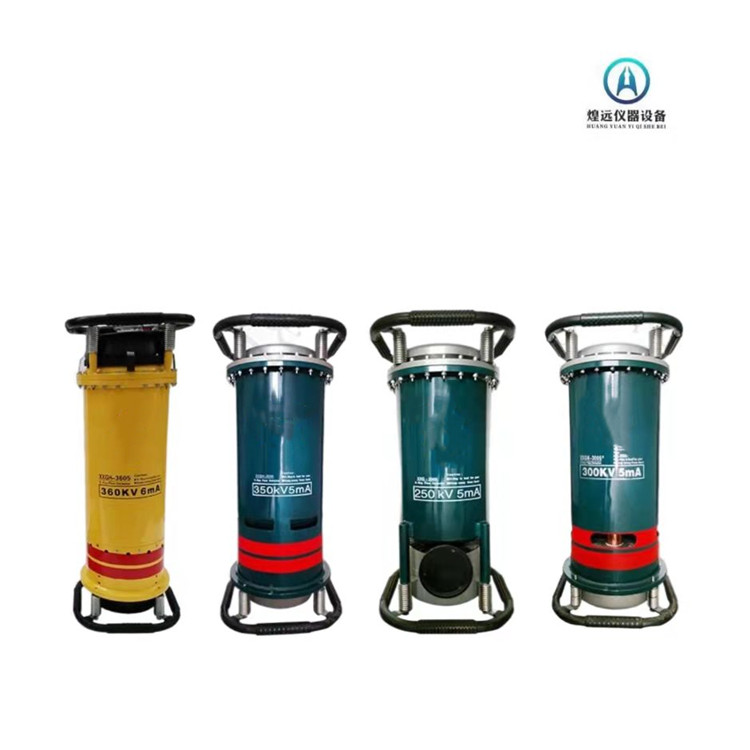

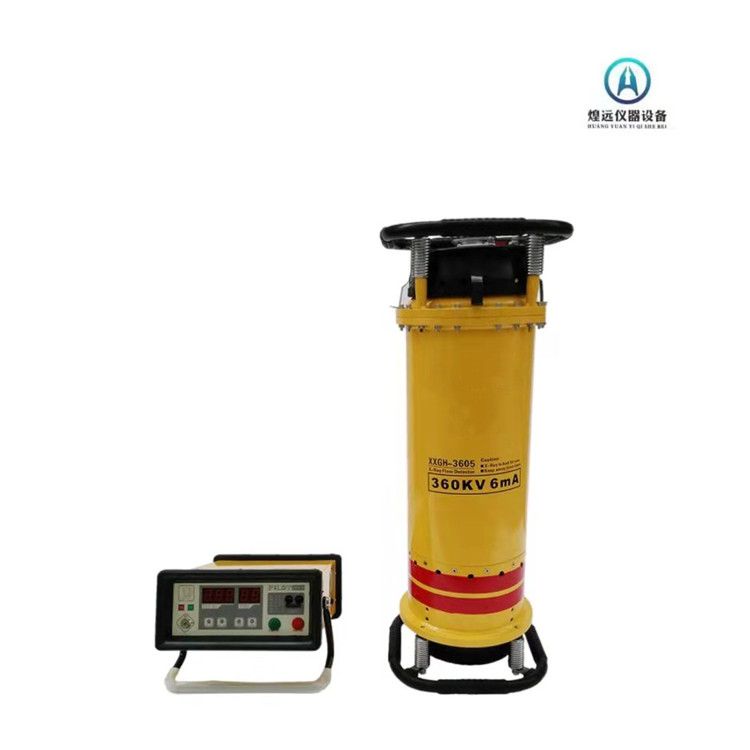

X-ray flaw detector
The X-ray non-destructive testing machine adopts high voltage, small size, stable performance, light weight, easy to carry, simple operation, novel design, stable quality, and high degree of automation. Therefore, the isolation display strictly works and rests in a 1:1 ratio to ensure the service life of the machine and has stronger anti-interference ability of hardware and software components.
Technical Specifications
project | Sub projects | Technical data |
input | AC power supply | single-phase50HZ AC220±10 |
output | X non-destructive tube current (average value) | 5mA |
High voltage transformer input electric fluctuation | ±1% | |
X lossless generator | cooling method | forced air cooling |
Insulation method | SF6 gas insulation | |
Safety work pressure（20℃） | 0.35Mpa～0.45Mpa | |
working environment | temperature | -30℃～+40℃ |
relative humidity | ＜85% | |
altitude | 1000m | |
Penetration thickness condition | steel plate | A3（mm） |
focal length | 600mm | |
exposure | ≤30mAmin | |
film | ⅢDouble sided lead foil for increased sensitivity | |
darkroom processing | temperatureDevelopment time at 20 ℃± 2 ℃ for 5 minutes | |
Optical density | D≥2.0 | |
controller | weight | 12KG |
size | 360mmx300mmx145mm | |
Timing error | 5min±10% | |
working method | press1: 1. Work and rest mode, with a preset exposure time of 9.5 minutes (5 minutes) | |
