Explosion proof containers can be used to store flammable and explosive materials such as alcohol, fuel, chemicals, and dangerous goods. Protection and placement of large, medium, and small prefabricated equipment
Product sea transportation packaging, equipment monitoring in harsh environments, construction, etc.
Product Features
1. Activity: movable and easy to lift.
2. Quick assembly: Short manufacturing period and no need for foundation.
3. Safety: Steel frame structure, windproof, shockproof.
4. Beautiful appearance (choose the color of the box independently).
5. Durability: Steel plate outer wall, acid resistance, high weather resistance for use.

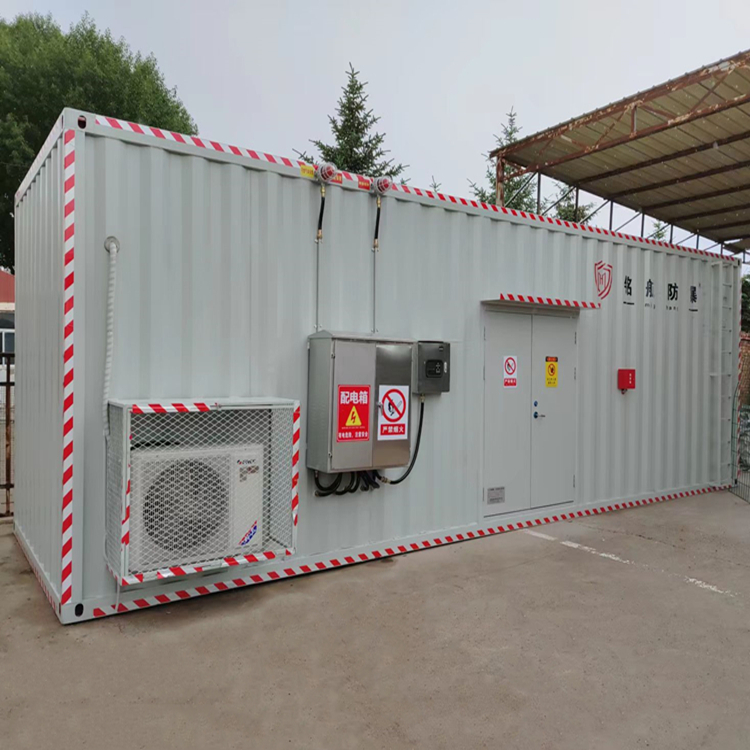

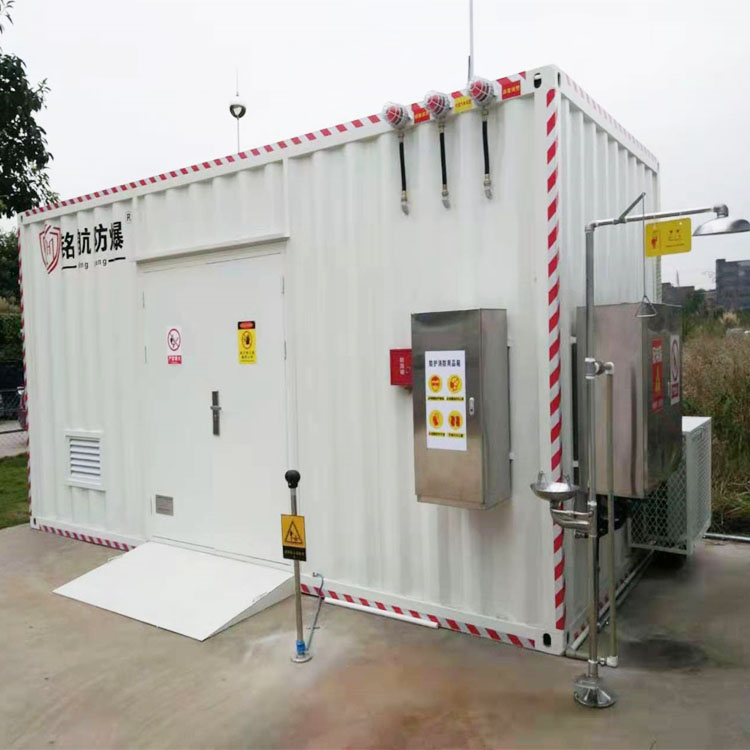

1、 Basic structure of explosion-proof container:
1. Dimensions: 2550 (H) * 12000 (L) * 2350 (W) mm2. Main components and requirements of the box: ① Steel plate welding composition; ② External
The top layer is equipped with explosion-proof facilities; ③ The internal walls are covered with rock wool layer and floor panel grid board; ④ One fireproof and explosion-proof door and one emergency door each; ⑤ Internal safety warning signs
⑥ External rust and rain prevention treatment ⑦ Laying of freight slopes
2、 Internal structural system
1. Explosion proof air conditioner: BKGR-72 3 horsepower air conditioner, 1 unit, power supply: 220V, wall mounted installation
2. Lighting system:
Internally, according to the requirements of explosion-proof electrical GB3836, 4 sets of explosion-proof all plastic fluorescent lamps, 1 explosion-proof lighting distribution box, 2 explosion-proof plugs, and explosion-proof emergency lighting have been added
One lamp, one explosion-proof marker lamp, and one explosion-proof lighting switch. Operated by explosion-proof electrical installation professionals, using steel pipe wiring and explosion-proof pipe fittings for connection. explosion-proof
Galvanized pipe wiring for lighting distribution box
3. Explosion proof ventilation system
① One explosion-proof exhaust fan or explosion-proof axial fan, voltage: 220V, air volume: 2880m3/h, helps with internal ventilation.
② Explosion proof windows 2, size: 400 * 600, installed on the back or both sides of the container
4. Fire alarm system
① Two explosion-proof sound and light alarms; ② Two explosion-proof combustible gas alarms; ③ 2 explosion-proof smoke detectors and 4 explosion-proof fire extinguishers; ⑤ Outdoor spray eye wash
1 set of equipment, Party A needs to lead the water source to the site ⑥ 1 set of anti-static discharge device ⑦ 1 set of lightning protection device
(For example only, dimensions can be customized according to needs, and internal explosion-proof electrical appliances can be configured according to requirements)
