Heat-resistant steel welding wire PP-TIG-R30 argon arc welding wire
Standard: GB/T8110ER55-B2
Explanation: PP-TIG-R30 is a low-alloy heat-resistant steel tungsten inert gas arc welding wire containing Cr1.25% - Mo0.5%. Weld metal has excellent plasticity and toughness. The weld seam has a beautiful appearance and good welding performance at all positions. Usually, during welding, the welded parts need to be preheated and maintained at a temperature of 160-200 ℃, and then tempered at 675-705 ℃ after welding.
Purpose: Used for manual tungsten inert gas arc welding and full argon welding of heating surface pipes of boilers with working temperatures below 550 ℃, steam pipelines and high-pressure vessels below 520 ℃, and petroleum refining equipment (such as 15CrMo, P11, P12 steel). It can also be used for repairing 30CrMnSi cast steel parts.

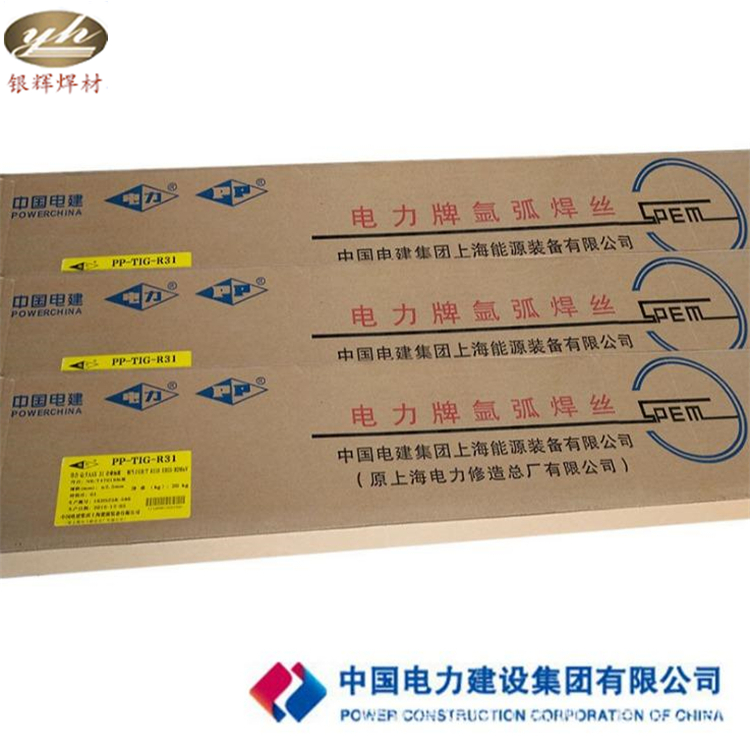

PP-TIG-R31 heat-resistant steel tungsten inert gas arc welding wire
Standard: GB/T8110ER55-B2-MnV Description: PP-TIG-R31 is a low-alloy heat-resistant steel tungsten inert gas arc welding wire containing Cr1.25% - Mo0.5% - V. Weld metal has excellent plasticity and toughness. The weld seam has a beautiful appearance and good welding performance at all positions. Usually, during welding, the welded parts need to be preheated and maintained at a temperature of 250-300 ℃ between the passes, and then tempered at 715-745 ℃ after welding.
Purpose: Used for manual tungsten inert gas arc welding and full argon welding of heating surface pipes of boilers with working temperatures below 580 ℃, steam pipelines below 540 ℃, petroleum cracking equipment, and high-temperature synthetic chemical machinery (such as 12Cr1MoV, T/P11 steel).
PP-TIG-R34 argon arc welding wire
Explanation: PP-TIG-R34 is a low-alloy heat-resistant steel tungsten inert gas arc welding wire containing Cr2% - Mo0.6% - VWB. The weld metal has good mechanical properties and excellent all position welding performance. Usually, during welding, the welded parts need to be preheated and maintained at a temperature of 320-360 ℃ between the passes, and then undergo tempering treatment at 745-775 ℃ after welding.
Purpose: Used for welding 12Cr2MoWVB (steel 102) heat-resistant steel structures with working temperatures below 620 ℃, such as manual tungsten inert gas arc welding for steam pipes, superheater pipes, etc. in high-temperature and high-pressure boilers, and full argon welding.
Brand: Shanghai Electric Power
Manufacturer: Shanghai Electric Power Maintenance Factory Co., Ltd
PP-TIG-R40 argon arc welding wire
Standard: GB/T8110ER62-B3 AWSER90S-B3
Explanation: PP-TIG-R40 is a low-alloy heat-resistant steel tungsten inert gas arc welding wire containing Cr2.25% - Mo1%. Weld metal has excellent plasticity and toughness. The weld seam has a beautiful appearance and good welding performance at all positions. Usually, during welding, the welded parts need to be preheated and maintained at a temperature of 160-200 ℃, and then tempered at 675-705 ℃ after welding.
Purpose: Used for welding boiler heating surface pipes with working temperatures below 580 ℃ and high temperature and high pressure steam pipes and containers below 550 ℃; Manual tungsten inert gas welding and full argon welding for petroleum cracking equipment and high-temperature synthetic chemical machinery (such as 10CrMo910, P22 steel, etc.).
Product Description:
PP-TIG-R71 is a heat-resistant steel tungsten inert gas arc welding wire containing Cr9% - Mo1% - Ni0.7% - VNb. The weld metal has good mechanical properties and excellent all position welding performance. Usually, during welding, the welded parts need to be preheated and maintained at a temperature of 200-300 ℃ between the passes, and then subjected to 735-765 ℃ tempering treatment after welding.Structural features:Used for manual tungsten inert gas arc welding and full argon welding of improved 9Cr1Mo heat-resistant steels (such as T/P91, F9, etc.) with welding working temperatures between 600~650 ℃, such as steam pipes, superheater pipes, and furnace pipes of high-temperature and high-pressure boilers, as well as oil cracking units.Technical Specifications:
|
The product name conforms to the standard application
|
ER55-B2 HIC |
GB/T8110:ER55-B2 HIC |
High purity and mechanical performance heat-resistant steels such as 15CrMoR (HIC) used for welding work below 520 ℃, such as boiler pipelines, high-pressure vessels, and petrochemical equipment. |
|

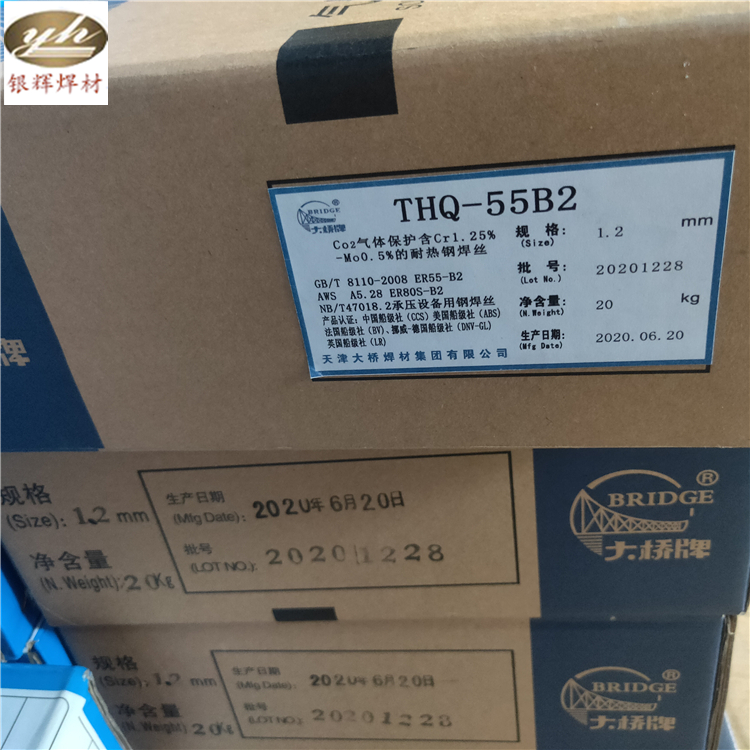

ER55-B2 |
GB: ER55-B2 |
Used for welding 15CrMo heat-resistant steel with working temperature below 520 ℃. |
|
ER55-B2Mn |
GB: ER55-B2-Mn |
Used for welding 15CrMo heat-resistant steel with a working temperature of 520 ℃. |
|
ER55-B2-MnV |
GB: ER55-B2-MnV |
Used for welding 12Cr1MoV heat-resistant steel with working temperature below 540 ℃. |
|
ER62-B3 |
GB: ER62-B3 |
Used for welding Cr2.25Mo1 heat-resistant steel with working temperature below 550 ℃. |
|
H1Cr 5Mo |
GB: ER55-B6 |
Used for welding Cr5Mo type pearlite heat-resistant steel. |
