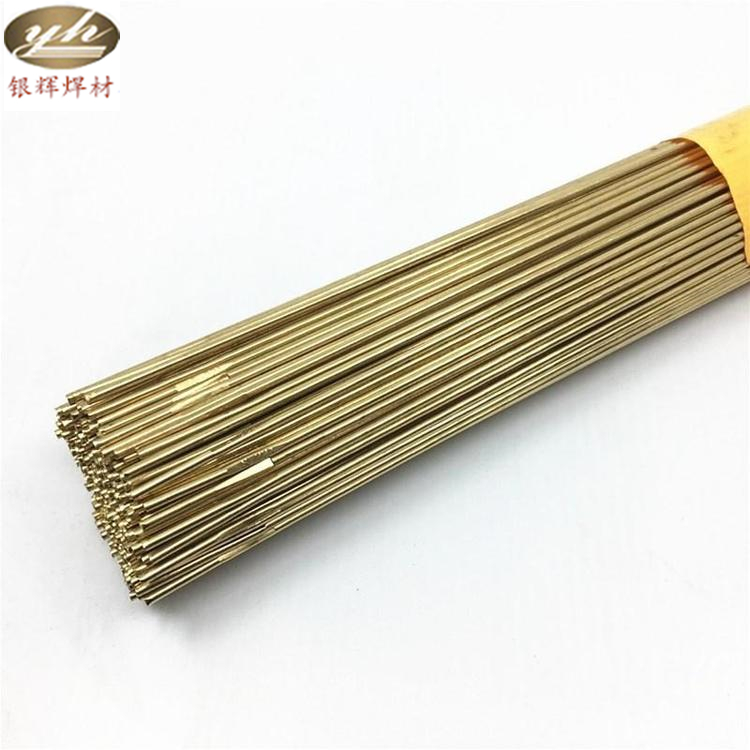

S211 copper welding wire HSCuSi silicon bronze welding wire ERCuSi-A copper alloy welding wire SG CuSi3 welding wire Cu6560
Application description: Welding and overlay welding of copper zinc alloys and low copper alloys. The overlay welding of low-alloy steel, non alloy steel, and cast iron has excellent wear resistance and is suitable for MIG welding of galvanized sheets. Suggest preheating when used for large-area TIG welding; When welding multiple layers of steel, pulse arc welding is used.
Chemical composition regional standard (%)
|
grade
|
copper
|
aluminium
|
silicon
|
zinc
|
manganese
|
phosphorus
|
lead
|
tin
|
iron
|
other
|
|
HSCuSi
|
margin
|
≤0.01
|
2.8-4.0
|
≤1.5
|
≤1.5
|
|
≤0.20
|
≤1.1
|
≤0.5
|
≤0.50
|
|
SG-CuSi3
|
margin
|
≤0.01
|
2.8-4.0
|
≤0.2
|
0.5-1.5
|
≤0.02
|
≤0.02
|
≤0.2
|
≤0.3
|
≤0.4
|
|
ERCuSi-A
|
margin
|
≤0.01
|
2.8-4.0
|
≤1.0
|
≤1.5
|
|
≤0.02
|
≤1.0
|
≤0.50
|
≤0.50
|
Physical properties of deposited metal
Conductivity 3.5-4.0 S · m/mm2 Density 8.5 kg/dm3
Solid phase line 910 ℃ Liquid phase line 1025 ℃
Tensile strength 330-370 N/mm2 elongation 40%
Hardness 80-90 HB
