Product Introduction

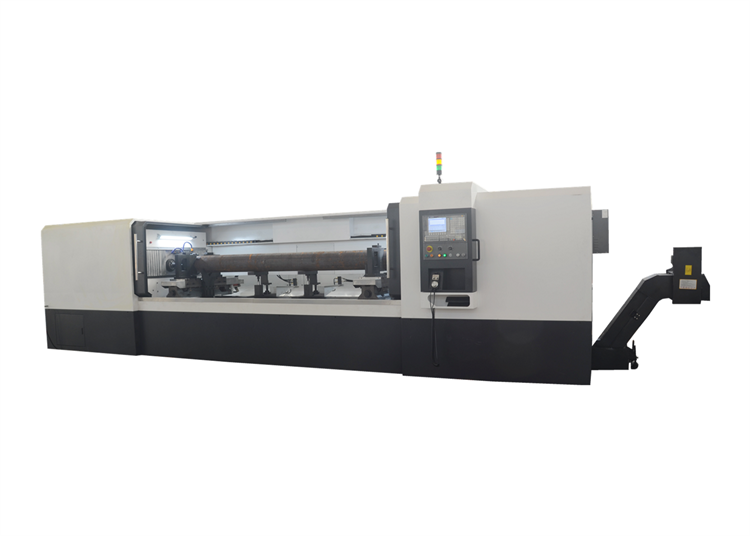

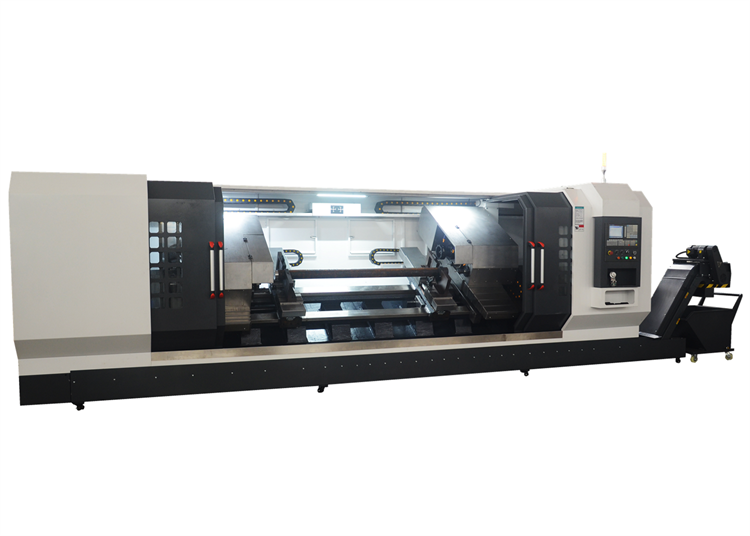

This series of milling end face drilling center hole machine is designed for processing medium and large shaft parts with a diameter of 160mm or less and a length of 1800mm or less. The machine adopts a 45 degree inclined bed structure and the industry's first fully enclosed guide rail protective cover. Compared with a flat bed, it has the advantages of lower feeding height, closer distance, and smoother chip removal.

Key Features:

1. Adopting gear rack hydraulic self centering vise, the guide surface is quenched to a hardness of HRC52 or above, the sliding surface is carefully scraped and assembled, and centralized lubrication and oil supply are used. The lubrication is sufficient and reliable, the performance is stable, the clamping is convenient, and the clamping force is strong.

2. The high rigidity rectangular guide rail has been quenched to a hardness of HRC52 or higher, with a cross-sectional width of 130mm. The guide rail surface has been treated with plastic coating to prevent low-speed crawling and improve its service life. It adopts precision grinding grade double screw ball screw transmission, with high precision and long service life.

3. Adopting a dual spindle design with milling and drilling separation, the structure is reasonable and easy to adjust the tool. The power head adopts gear transmission, with high torque and strong cutting force.

4. Four axis servo CNC system, accurate positioning, simple position handwheel operation, and easy adjustment.

5. Adopting a positive displacement electric lubrication pump to fully and effectively lubricate the guide rail and screw, improving the service life of the machine tool.

6. Standard track type chip conveyor, can choose rear or side row

7. Low feeding height, close distance, smooth chip removal, and easy operation
