Cutting Machine Instructions

Classification of panel saws

Type of cutting machine

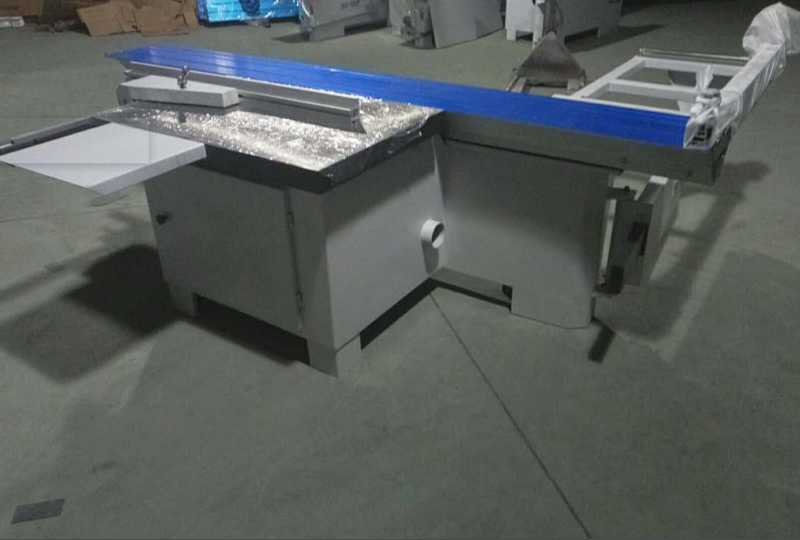

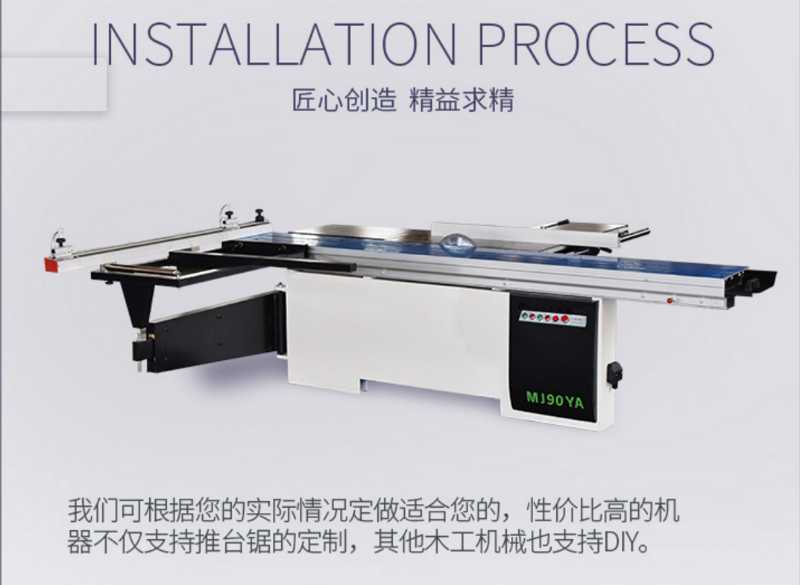

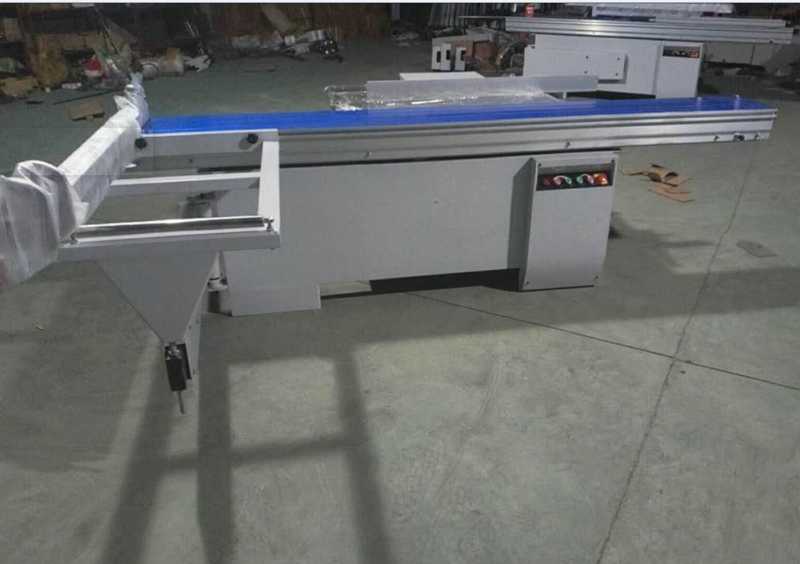

Host structureThe main part of the precision panel saw includes the bed, worktable, longitudinal and transverse guide plates, main saw, marking saw, transmission and other components. The structure and working principle are similar to ordinary circular saw machines, and can be used separately as ordinary circular saw machines. Composition of panel saw: 1. Frame 2. Main saw part 3. Slot saw part 4. Horizontal guide plate 5. Fixed worktable 6. Sliding push table 7. Diagonal saw guide plate 8. Bracket 9. Diagonal saw angle display device 10. Lateral guide plate

Customized cutting machine

Precautions1. The board should be tightly against the stopper and cannot be moved; 2. Adjust the cutting speed according to the thickness and hardness of the board, and push the machine tool at a constant speed without being too fast or too strong. 3. When cutting small materials, use wooden strips to press and push them forward. 4. Operators should wear face masks, gloves, loose clothing, and long hair. 5. Do not directly reach the rotating saw blade with your hands to retrieve the item. If necessary, you can use other long accessories to push it aside before retrieving it. 6. If there are defects in the edges and corners of the opened board, replacement of the saw blade should be considered. 7. After completing the cutting task, turn off the power and clean the saw table and surrounding areas.
