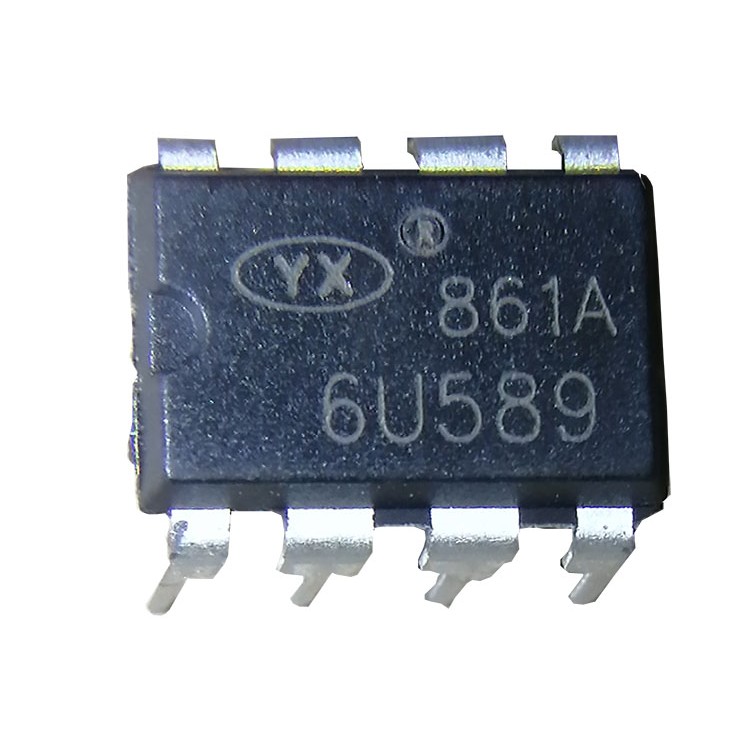

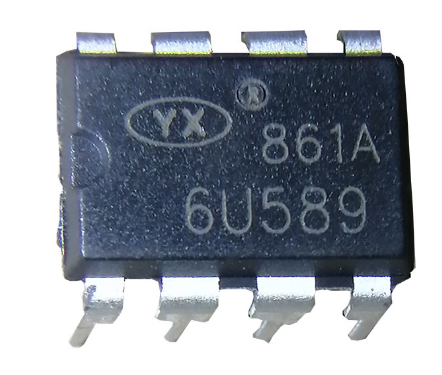

YX8616 A dual-function solar string light control chip, suitable for1-3 Section1.2V Solar-powered with rechargeable battery

The products feature two functions: constant light and flashing light.

Solar EnergyLED String Light ControllerYX8616 It is based on solar energy by our company.LED String lights feature specially designed functionality.Available

LED String Controller Chip, featuring main functions such as boost and photocontrol.LED Feature-driven, solar-powered charging, etc.

The controller boasts high conversion efficiency:80~85％(typical value), reduces the power requirement of solar cells; output

Adjustable current, minimal peripheral components, and adjustable flash frequency.

Features:

Efficiency:80~85％（typical value），fully exploits solar cellsLED Flicker Frequency Adjustment

Adjustable input current, current range:8-200mA

 Low enable voltage ensures that the lighting turns on only when the ambient light is sufficiently dark.Enable control with Schmidt characteristics, ensuring stability during light intensity transitionPeripheral components are minimal, requiring only3 Piece(s)1 A resistor.1 A coil inductor1 Individual electrical appliance
