Key Features:

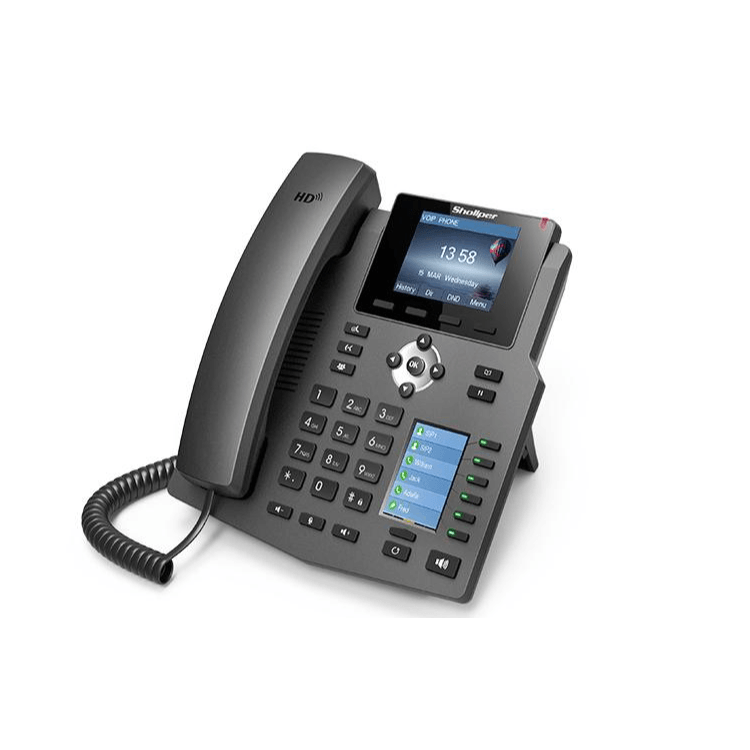

  • 2 LCD screens: Main Screen (2.8-inch color screen) + DSS Display (2.4-inch color screen), offering an abundant visual experience.

  • Smart DSS Corresponding Display — Dynamically displays 5 pages, with each page capable of setting the status of 6 DSS keys, supporting customizable configuration for up to 30 DSS keys. Each DSS key can be set as Line/BLF/Direct Dial Extension, etc.

  • 4 SIP lines.

  • Supports 100/1000Mbps Ethernet — Adaptive 10/100/1000Mbps network port, offering high-speed network transmission, and supports POE power supply.

  • High compatibility — Compatible with mainstream SIP-based IPPBX/softswitch/IMS platforms, etc.

  • Local phone directory (500 entries), network phone directory (supports XML/LDAP, 500 entries).

  • Call Logs (Unanswered/Inbound/Outbound Calls, 600 entries).

  • Block Call List / Allow Call List.

  • Screen Saver on Standby.

  • Voice Mail Waiting Indication (VMWI).

  • Handle / Hands-free / Headset mode.

  • User-defined DSS key/soft key.

  • Network Time Synchronization.

  • Support Plantronics and Jabra wireless headphones.

  • Supports recording (either through a recording card or server-side recording).

  • Automated deployment and configuration (Auto-Provisioning) via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PnP/TR-069.

  • Action URL / Active URI。

  • uaCSTA。

  • Web Management Interface



Call Function

Dial/Answer/Reject, Mute/Unmute (Microphone), Call Hold/Resume, Call Waiting, Intercom Function, Caller ID, Speed Dial, Anonymous Call, Call Forwarding (Unconditional/Busy/No Answer), Call Transfer (In attendance/Out of attendance), Call Park/Grab (Server required), Redial, Do Not Disturb, Auto-Answer, Voice Mail (Server required), Conference Call, Hotline, Shared Phone (Hot desking).



Audio Features

  • High-Definition Handle/Hold (Handle/Hold, 0~7KHz Frequency Response).

  • 16KHz sampling for Broadband ADC/DAC.

  • Narrowband Encoding: G.711a/u, G.723.1, G.726-32K, G.729AB.

  • Broadband Coding: G.722.

  • Full-duplex hands-free calling, with Acoustic Echo Cancellation (AEC) support.

  • Voice Activity Detection (VAD) / Comfortable Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR).

  • Packet Loss Compensationncealment )。

  • Dynamic adaptive jitter buffer up to 300ms; DTMF: In-band audio, Out-of-band - DTMF relay (RFC2833) / SIP INFO.



Network Features

  • 10/100/1000Mbps Ethernet (Bridge Mode)

  • IP Acquisition Method: Static IP Setup / DHCP / PPPoE.

  • Supports 802.1x network access authentication.

  • Virtual Private Network (VPN): L2TP / OpenVPN.

  • Virtual Local Area Network (VLAN).

  • Link Layer Discovery Protocol (LLDP)

  • Quality of Service (QoS) Guarantee

  •  RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)。


Relevant agreements

SIP2.0 over UDP/TCP/TLS、RTP/RTCP/SRTP、STUN、DHCP、 PPPoE、LLDP、802.1x L2TP、OpenVPN、SNTP、FTP/TFTP、HTTP/HTTPS、TR-069。



Physical Specifications:

Screen:

Main Screen: 2.8-inch Color Screen (320)x240）。

DSS Display: 2.4-inch color screen.

Keyboard:38 keys, including:

  • 4 Dynamic Soft-Keys

  • 6 functional keys (hold/transfer/conference/phonebook/call log/redial)

  • 4 directional keys

  • 1 OK button

  • 12 standard telephone number keys

  • 3 voice control keys, volume up/down/mute (microphone)

  • 1 Hands-Free Button

  • 6 DSS Keys (with tri-color LED indicator lights)

  • 1 page button

RJ9 Connector: 2 pieces.

RJ45 Interface2 pieces.



Technical Specifications:

Power Supply:PoE or 5V/1A

Power Consumption:Standby: 1.8W~2.5W, Peak: 3W~4.5W

Operating Temperature: 0~40℃

Relative Humidity:10~95%

Installation Method:Desktop or Wall-Mounted

Color:Black

Product Dimensions:Ø

  • Desk-top Model (Angle 1): 196x169x172mm

  • Desk Top (Angle 2): 196x185.7x153mm

  • Wall-mounted: 196x102.9x218mm

Packaging Dimensions:270x270x65mm
