Key Features:

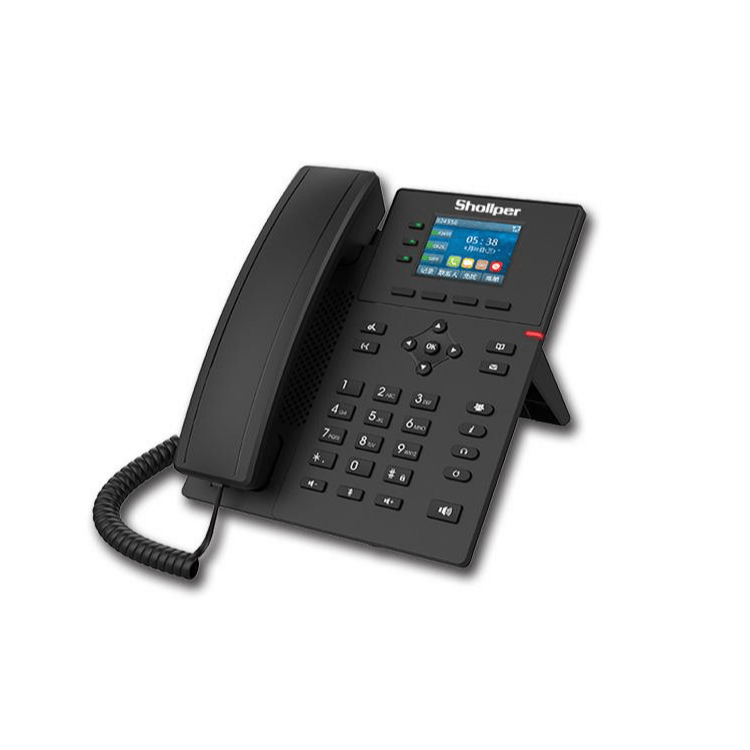

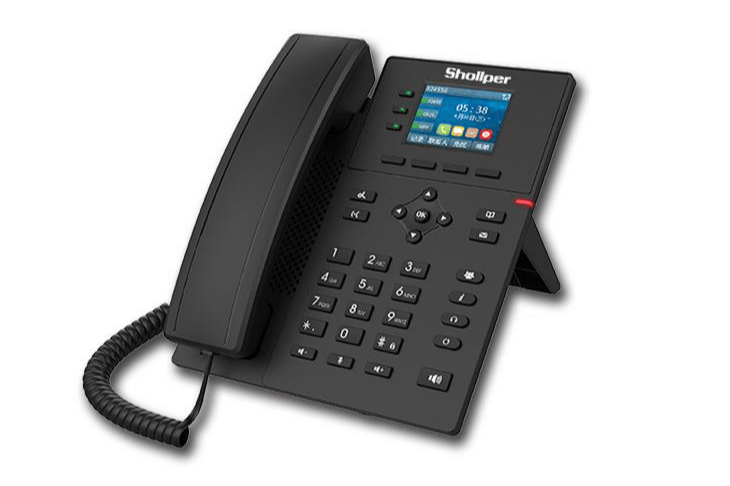

  • Equipped with 2.4-inch 320240 Color Display, offering a comfortable visual and operational experience.

  • High-definition voice, supporting wideband audio decoding G.722 and Opus, with echo cancellation and noise reduction capabilities.

  • Supports a 6-party local conference function, enabling efficient coordination and office work within the enterprise.

  • Supports external EHS wireless headphones, allowing you to answer calls while handling other tasks.

  • 100 Mbps Ethernet - Adaptive 10/100 Mbps network port, offering high-speed data transfer, with PoE power supply support.

  • Two installation options: desk placement or wall mounting, suitable for various application scenarios.

  • Automated deployment and configuration through FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PnP/TR-069.

  • Web Management Interface.

  • Local Telephone Directory (1,000 entries).

  • Web Phonebook (supports XML/LDAP, up to 1,000 entries).

  • Call Logs (Missed Calls/Incoming Calls/Outgoing Calls, 600 Entries).

  • Block Call List/Allow Call List.

  • Screen Saver on Standby.

  • Voice Mail Waiting Indicator (VMWI).

  • User-defined DSS key/soft key.

  • Network Time Synchronization

  • Support Plantronics wireless headsets/Jabra wireless headsets.

  • Supports recording (server-side recording).

  • Action URL/Active URI。

  • uaCSTA。



Call Function

Dialing/Answering/Rejecting Calls, Mute/Unmute (Microphone), Call Hold/Resume, Call Waiting, Intercom Function, Call Display, Speed Dial, Anonymous Call, Call Forwarding (Unconditional/Busy/No Answer), Call Transfer (In/Out of Office), Call Park/Grab (Server Supported), Redial, Do Not Disturb, Auto-Answer, Voice Mail (Server Supported), 6-Way Conference, Hotline, Shared Phone (Hot Desking).



Audio Features

  • Broadband ADC/DAC 16kHz Sampling

  • Narrowband Encoding: G.711a/u, G.723.1, G.726, G.729A/B, iLBC

  • Broadband Coding: G.722, Opus 1 full-duplex hands-free calling, supports acoustic echo cancellation (AEC)

  • Voice Activity Detection (VAD) / Comfortable Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)

  • Packet Loss Compensationncealment )

  • Dynamic Adaptive Jitter Cache

  • DTMF: In-band, Out-of-band (RFC2833/SIP INFO)

  • VQM Voice Quality Monitoring



Network characteristics

  • 10/100 Mbps Ethernet.

  • IP Mode: IPv4/IPv6.

  • IP Acquisition Methods: Static IP Setup / DHCP / PPPoE.

  • Supports 802.1x network access authentication.

  • Virtual Private Network (VPN): L2TP / OpenVPN.

  • Virtual Local Area Network (VLAN)

  • Link Layer Discovery Protocol (LLDP)

  • Service Quality Assurance (QoS)

  • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)。



Relevant agreements

SIP2.0 over UDP/TCP/TLS、RTP/RTCP/SRTP、STUN、DHCP、IPv6、LLDP、PPPoE、802.1x  L2TP、OpenVPN、SNTP、FTP/TFTP、HTTP/HTTPS、TR-069、AES128 & AES256。



Physical Specifications:

Home Screen:2.4 Inches (320)240) Color Screen.

Keyboard:36 keys, including 4 dynamic software-defined keys (Soft-Key), 9 function keys (Hold, Transfer, Voice Mail, Address Book, Conference, Status, Headset, Redial, Hands-Free), 3 line keys (with LED indicators), 4 directional keys, 1 OK key, 12 standard phone number keys, and 3 volume control keys (increase/decrease/mute, microphone).

RJ9 Connector2 pieces.

RJ45 interface2 pieces.



Technical Specifications:

Power Supply:  PoE

Power Consumption (PoE) 1.32 ~2.09W

Operating Temperature: 0~45℃

Relative Humidity: 10~95%

Installation Method:Desk-top or wall-mounted (wall mounting accessories required and sold separately)

Weight:8.55 kg

Product Dimensions:169x203.6x172.7 mm (Desktop, 45°)

Packaging Size: 250x220x55mm
