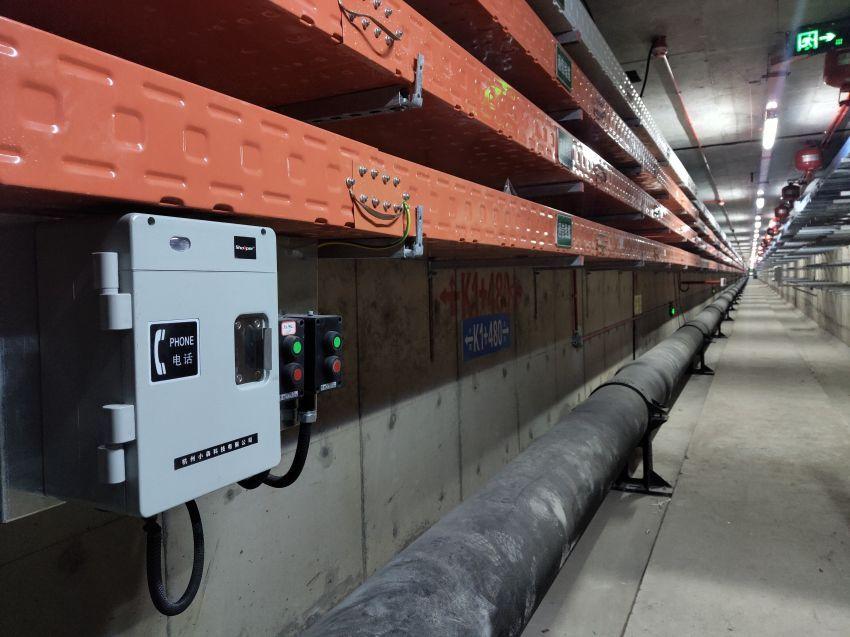

The HATSP-B4 amplifying intercom station is a new generation of IP industrial intercom stations launched by Xiaobeng Technology to meet the needs of industry users and adapt to the new industry engineering standards of the new era. It supports SIP 2.0 session protocol and can be matched and connected with any SIP voice communication system. It features an ultra-wide voltage input range and can provide 12V DC or 220V AC power input. This product is specifically designed for special application scenarios such as industrial production sites, urban underground pipelines, highway tunnels, etc. It employs a high-strength reinforced ABS shell, fanless design, low power consumption, strong anti-interference ability, and supports remote WEB debugging and unified network management, making it particularly suitable for large-scale deployment.


Product Features:

● The phone case is made of high-strength reinforced ABS engineering plastic.

● The number of incoming ring tones can be adjusted.

● Sealed structural design for dust, water, and moisture resistance.

● Handset and housing integrated design for anti-theft function.

● Achieves IP66 protection, suitable for harsh environments.

● Interface with联动functionality.

● Digital circuit design with strong anti-interference capability.

● Supports ultra-wide sampling rate of 20-8KHz.

● The ringing signal is indicated through both audio and visual modes.

● Supports G.723, G.711, and G.729 voice codecs.

● Features busy tone detection.

● Wide Operating Voltage: DC 12V (9-18V) or AC 220V (100-240V).

● zuiRedial feature for the subsequent phone number group.

● Number plate night-vision indicator.

● Supports external fixed resistance loudspeakers

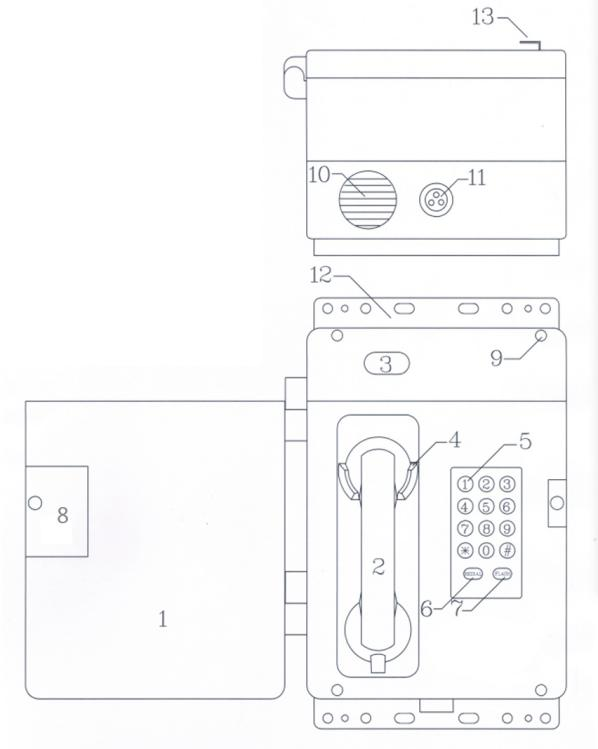

Description of Functions (See Illustration)

1. Door Cover 2. Handle 3. Ring Signal Indicator Light 4. Handle Hanger 5. Numeric Keypad 6. Redial Key 7. Quick Disconnect Key (Flash) 8. Door Lock 9. Front and Rear Cover Screws 10. Ringing Speaker 11. Lead Wire, Telephone Input Wire 12. Installation Backplate 13. Door Knob


Product Specifications:

Transmission Distance:100 meters

Transmission Cables8-core network cable

Communication Standard:VoIP

Equipment Type:Outdoor wall-mounted

Ingress Protection Rating:IP66

Body Material:ABS Glass Fiber Reinforced

Equipment Dimensions:335*235*170mm

Amplifier Power:30W

Equipment Weight:5kg

Power Input:220VAC 50HZ

Overall Power Consumption:0/10W

Ambient Temperature:-30℃~+60℃

Ambient Humidity:0%~95%
