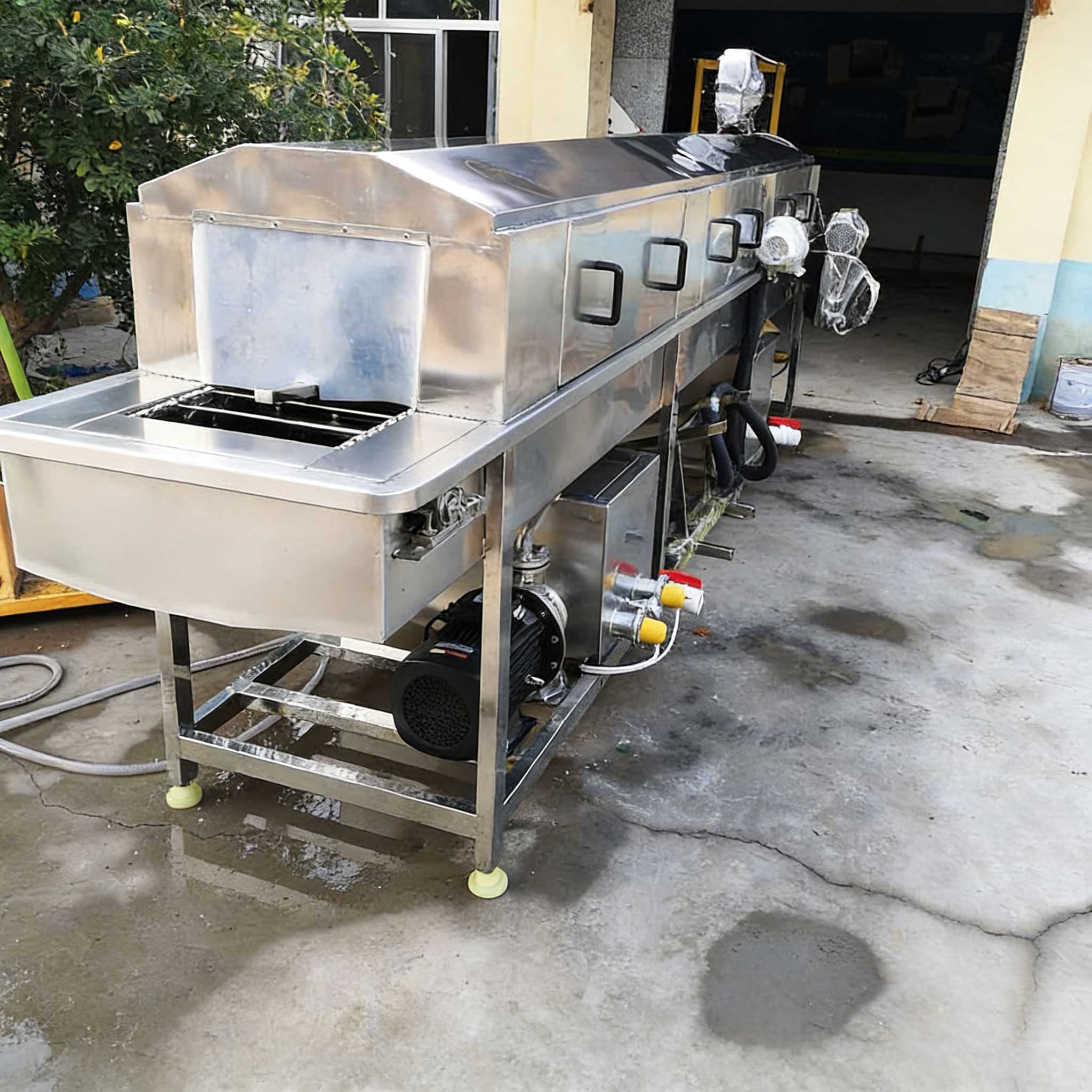

Plastic basket washers, tray washers, and washing basket frames are made of high-quality SUS304 stainless steel. This machine first employs a high-pressure bubble hot water bath for cleaning, offering great cleaning capacity, effective oil and dirt removal, and high cleanliness rates. After passing through a conveyor belt, the baskets are automatically discharged after being washed by tap water through a high-pressure spray. The basket washers, box washers, returnable containers, and washing basket equipment are another masterpiece from HuanSu Technology. The rational waterway design achieves water conservation, with water consumption as low as 500L/hour. The adjustable conveyor chain range is 6~10 meters/minute, meeting different cleaning requirements. The oscillating nozzle cleaning system ensures excellent cleaning results.

Equipment Principle: 1. The cleaning machine primarily uses high-pressure spray as the cleaning method, with approximately 80°C hot water as the main cleaning force. 2. The equipment consists of several sections, including a hot alkali water spray section, a disinfectant water spray section, and a drying section, among others. The disinfectant water spray section and drying section can be customized according to customer requirements. 3. The disinfectant solution in the disinfectant tank is manually adjusted for concentration before being added. The alkali water tank is equipped with steam heating pipes and electric heating pipes; the temperature in both tanks is automatically controlled, with a range from room temperature to 80°C as set. 4. All circulating water tanks use horizontal stainless steel centrifugal pumps for spray circulation, simultaneously spraying and washing the bins from the top, bottom, left, and right directions. Each tank is designed with two filtration systems for easy cleaning of debris. Each tank is equipped with a separate drain valve, with the drained liquid being discharged through a common pipe. Due to the varying specifications of周转框 on the market, the standard size ranges from 300-430mm in width and 150-300mm in height; for special specifications, the design and customization will be based on the actual size of the bins.
