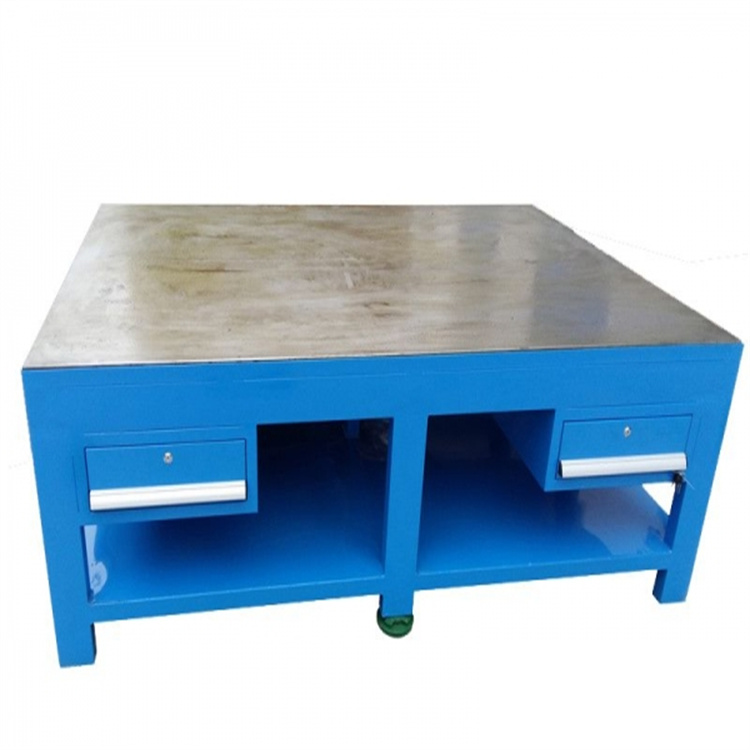

Steel Plate Fly Modeling Bench Features: The workbench is specifically designed for factory operations such as assembling molds, repairing molds, assembling molds, production, mold operation, and more. The workbench surface is treated for corrosion resistance and high impact resistance, featuring high load-bearing capacity and various surface options to accommodate different usage requirements. The workbench is equipped with drawers and cabinet doors for convenient storage of tools. Power outlets are pre-installed at the corners of the desk for easy installation of power sockets. The steel plate workbench series utilizes type tool cabinets, which, when added, optimize space usage for storing and protecting tools. The cabinet dimensions are 600W x 545D x 685Hmm. The desk top is 50mm thick, with an average load-bearing capacity of 1000KG, remaining flat after long-term use and can accommodate a vice directly on the workbench. The cabinet drawers feature double track guidance.

Reversible OBD 45# steel plate fly mold platform

Material Description:

1. The surface can be made of 2mm high polymer material, making the desk resistant to acids and alkalis, static-free, wear-resistant, and oil-resistant; or a direct steel plate surface.

2. Available in total thicknesses of 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm, etc., A3 steel sheets can be selected at will.

3. The base is constructed with high-pressure fiberboard, enhancing the desktop's impact resistance.

4. Special curved table legs, less prone to damage from impacts.

5. With upper mounting plate, component box, fluorescent light, switch, and power outlet.

6. Drawer Configuration: 1*100, 1*200mm; drawers can be partitioned internally.

Material: Cold-rolled steel plate, acid cleaned and phosphated before electrostatic powder coating.

8. 2.5mm thick C-section, cabinet 0.8, panel 1.0. Drawers feature imported silent three-section track.

9. Components are made according to national standards.

10. Desk-mounted hole-punching installation for vise, knife sharpener, cutting machine, etc. Shenzhen assembly workbench, fitter assembly workbench, mold assembly
