Steam boilers refer to boiler equipment used for producing steam, which falls underSpecial EquipmentIts design, production, manufacturing, and installation must all undergo inspection by the national technical supervision department. Users must obtain a boiler operation permit before operating the boiler.Atmospheric Pressure BoilerDifferences: Steam boilers must be equipped with boiler documents upon shipment, and these documents include...Boiler ShellImage:Installation Diagram、Instrument ValvesImages, pipeline diagrams, andCertificate of CompliancePlease wait.

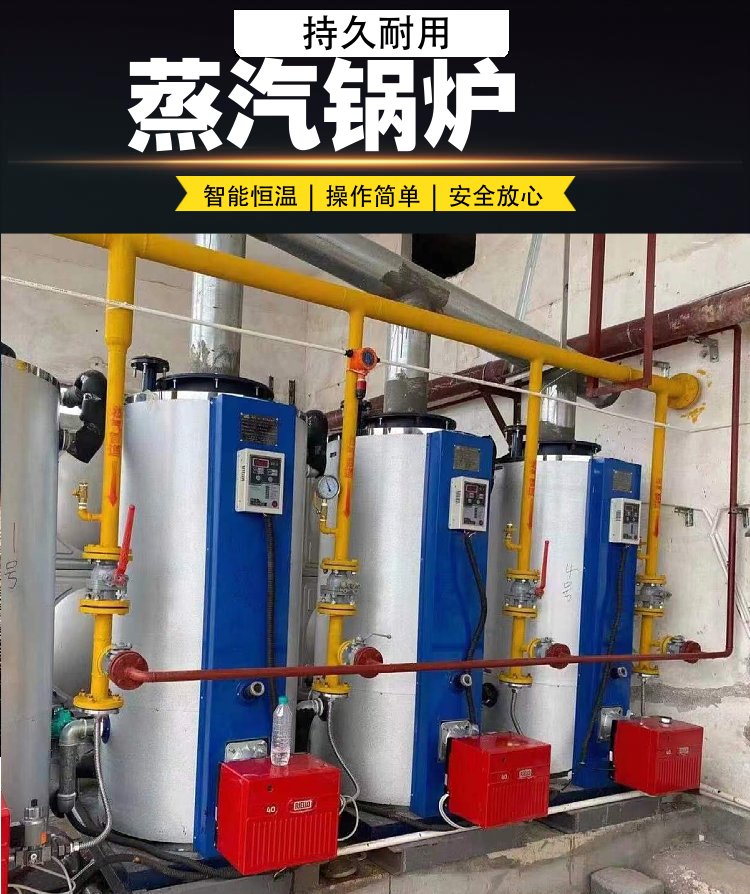

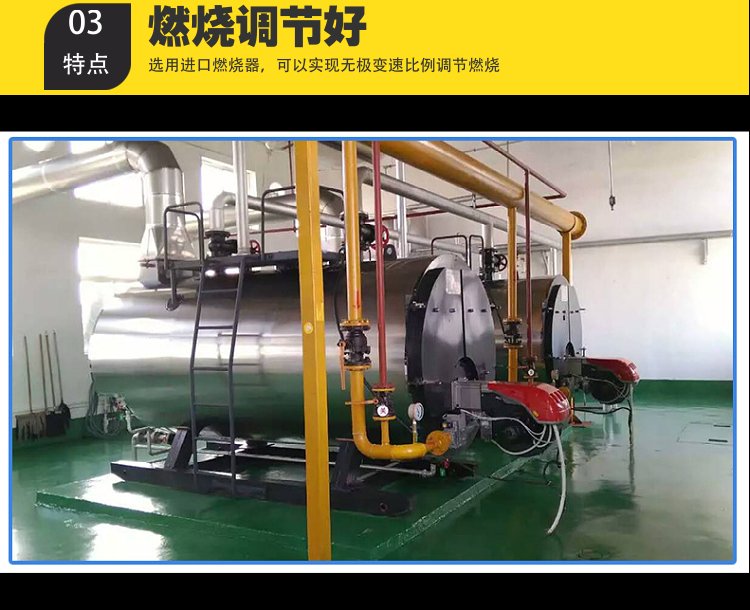

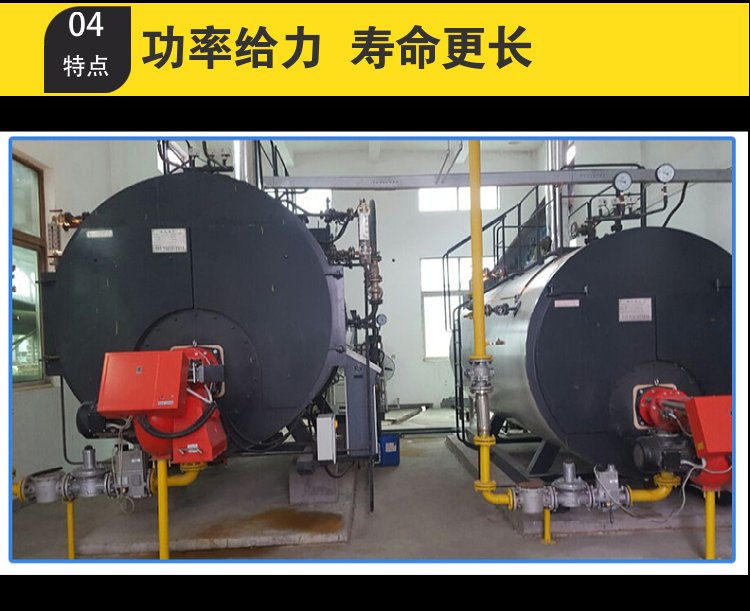

Steam boilers can be categorized according to their fuel types.Electric steam boiler、Fuel Steam Boiler、Gas Steam BoilerPlease wait; steam boiler asFuel supplyMethods can be categorized into manual combustion steam boilers and fully automatic chain combustion steam boilers; and by structure, they can be divided into...Vertical Steam Boiler、Horizontal Steam Boiler，Small Steam BoilerVertical structures are commonly single or double-revolution, while large steam boilers typically feature horizontal three-revolution designs.
The working process of a steam boiler generally includes the following steps, each requiring careful attention and patience. Raw water is fed into the tubes of the separator and evaporator (which are connected) by an injection pump. The liquid level is controlled through a level sensor connected to a PLC. Industrial steam then enters the shell of the evaporator to heat the raw water in the tubes to the evaporation temperature, transforming the raw water into steam. This steam, in the high travel of the separator at low speed, is separated by gravity, with small droplets returning to the raw water for re-evaporation. The steam then becomes pure steam, passing through a specially designed clean mesh device and into the top of the separator. It is then channeled through the output pipeline to various distribution systems and usage points.
Features: Water Level Protection; Temperature Protection; Power Failure Self-Locking Protection; Ignition Protection; Pressure Protection.
