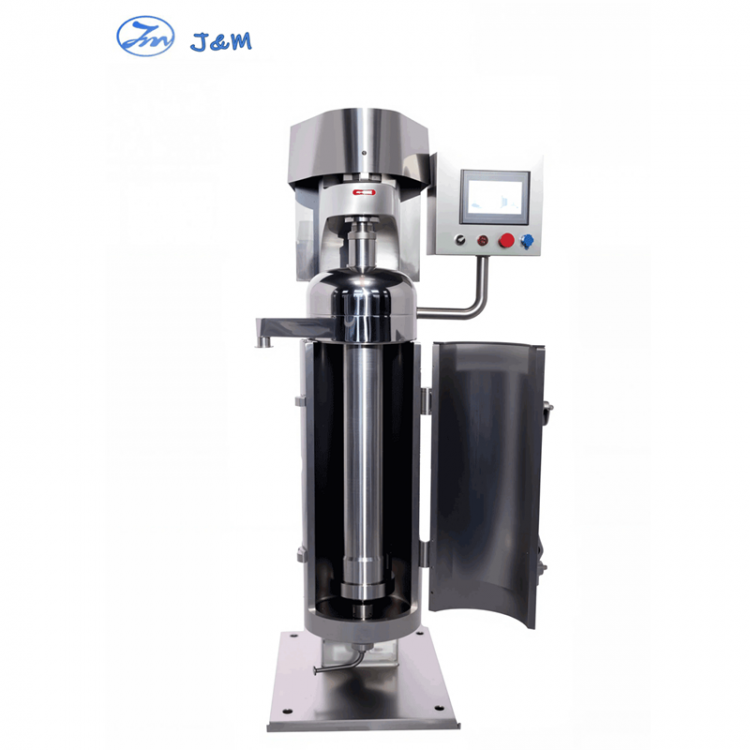

JM-16FC High-Speed Continuous Flow Centrifuge

Type:

High-speed Continuous Flow Centrifuge

Structure Type:

Top-opening, floor-standing rectangular box

Layout Type:

Vertical

Applicable to:

Pilot stage and industrial production

Application Fields:

Vaccines, biological fermentation, blood products, and other industries

Material of Equipment:

Material ContactPlease provide the Chinese content you would like translated into American English.316LStainless Steel Material Manufacturing

Separation factorsFr：

16300xg

Motor Power:

3 kw

Power supply

AC380 50Hz

Equipment Weight:

900 kg

Bearing drum inner diameter:

160 mm

Drum Rotation Speed:

13500r/min

Solid Volume:

16 liters

Production Capacity:

400-1500Ascending/hour

Flow capacity

3,000 liters/Hour

Liquid outlet diameter

Outer Diameter38.1mm

Inlet diameter

Outer Diameter12.7mm

Dimensions:

700mm×820mm×1766mm

Automation Level:

Continuous Feed Liquid-Solid Clarification Separation

Cooling Coil

Stainless Steel Coils, available for transit50°Refrigerant

Variable Frequency Drive Assembly

Displayable and adjustable speed
