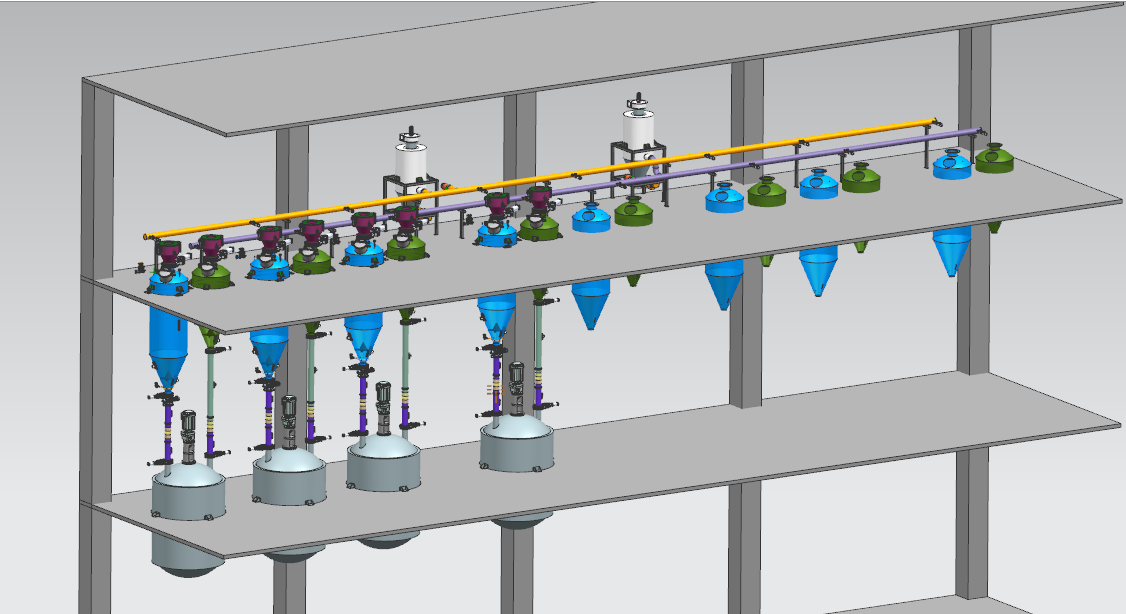

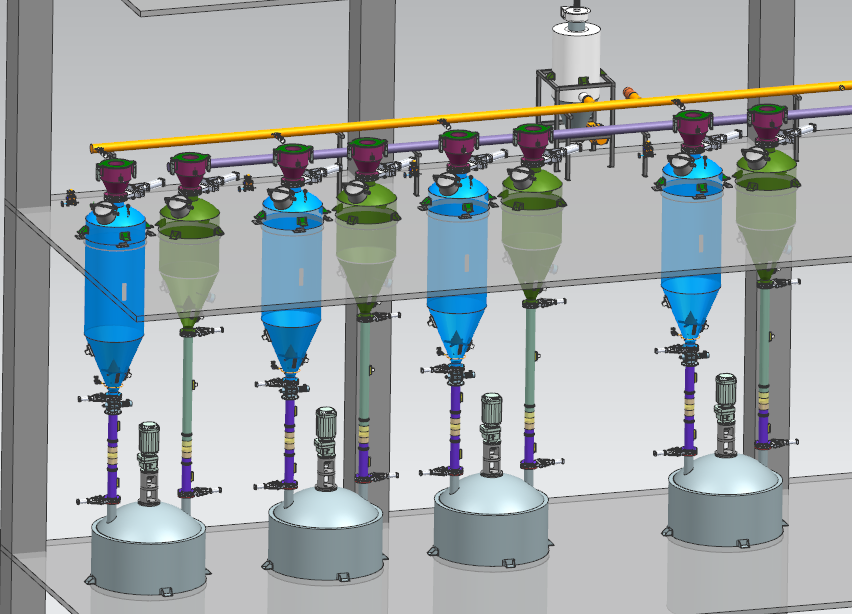

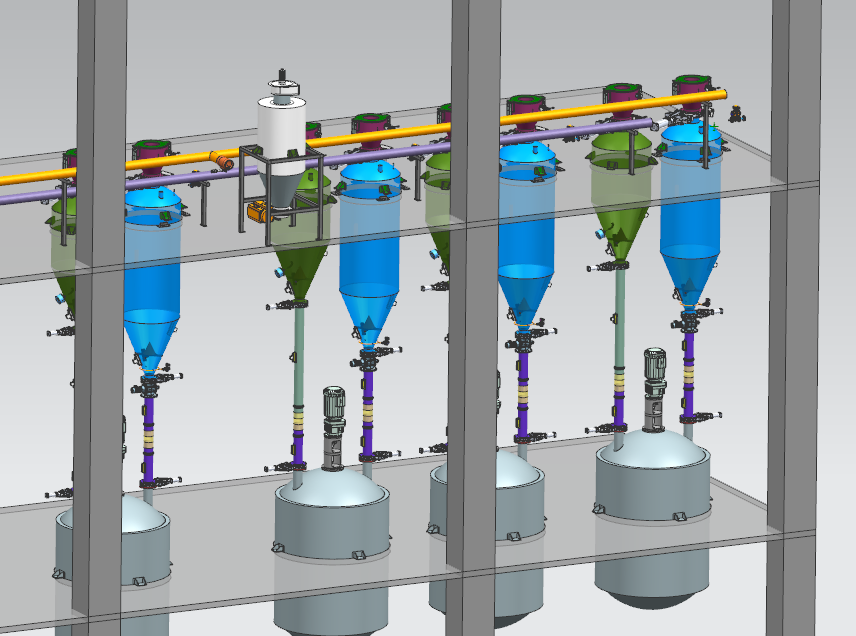

Reactor Feeding System Application Scope:

Chemical, grain and food, construction materials, new materials, environmental protection, food, biopharmaceuticals, fine chemicals, metallurgy, and other industries require high-precision automatic timing and dosing of granular, powdered, and mixed materials into hoppers, reactors, mixers, and other equipment.


Reactor Feeding System Technical Specifications:

Specs: ZJ-TL-25; ZJ-TL-1000

Material incoming packaging specifications: 0-50kg bags; 100-1000kg bags

Packaging Bag Materials: PP/PE/aluminum foil/kraft paper/cloth paper/ woven sack composite bags

Weighted Storage Volume: 0.1-3000L

Optional Features: Manual Bag Breaking/Automatic Bag Breaking; Manual Bag Breaking/Automatic Bag Breaking

Feeding Quantity: Quantitative batch 0.1-2000kg per batch or quantitative batch (controlling feeding speed) 0.1-1000kg/h

Feeding Method: Gravity/rotary valve/screw/belt/vibration

Accuracy Grade: ±0.1-0.5%

Operating Temperature: -20℃ to 45℃

Operating Humidity: ≤95%

Work Environment: Standard Environment / Explosion-Proof Environment / High-Purity Dust-Free

Gas Source Pressure: 0.4～0.6 Mpa

Power Source: AC380V / AC220V, 50Hz


Product Features of Reactor Feeding System:

Manufactured in strict compliance with FDA, GMP, and GMP standards.

2. Filters are easy to disassemble and clean, suitable for multi-product manufacturing.

3. Air-separation filtration technology, effectively prevents dust from flying, avoiding material waste.

4. The filter backflush cleaning device can schedule and intelligently cycle clean the filter.

5. Fully sealed with no leaks or cross-contamination, it can be directly installed in a clean room facility.

6. The feeding platform is designed with humanization, convenient for standing operation.

7. Vibration motor's excitation force is adjustable to meet various material requirements.

8. Directly screen materials during the feeding process, crush material blocks, and intercept foreign objects.

9. Easy and quick disassembly of screens, no tools required.

10. Equipped with an electronic lock module to prevent incorrect material feeding.

11. Material level prompts prevent material shortages and over-filling.

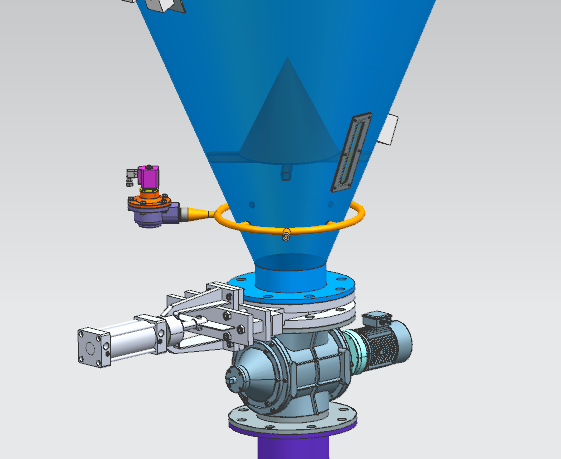

12. Self-cleaning valve function to prevent issues such as clogging, jamming, not closing tightly, or being unable to open.

13. Human-machine collaboration, data storage, and connection to the host (MES) functionalities;

14. High precision, accurate material input.

Custom-designed to meet user requirements, this equipment effectively isolates dust and powder generated during the feeding process, as well as related equipment from the human body. It then draws the dust into the filtration system under the negative pressure condition of the fan, separating the gas from the material. When the material accumulates, it falls into the storage bin due to its own weight. The device is user-friendly, easy to observe, maintain, and clean, protecting the operator's health. Made of SUS316L/SUS304 stainless steel, it is durable and long-lasting.
