Model Description: ZJ-HG Chemical Feedstock Control System


Product Description:

The system is a high-precision chemical blending system (proportioning blending control system) developed and produced by our company based on years of industrial automation experience, combined with domestic and international case studies. Various models of weighing blending systems are currently operating successfully and stably in factories of all sizes across multiple industrial sectors.

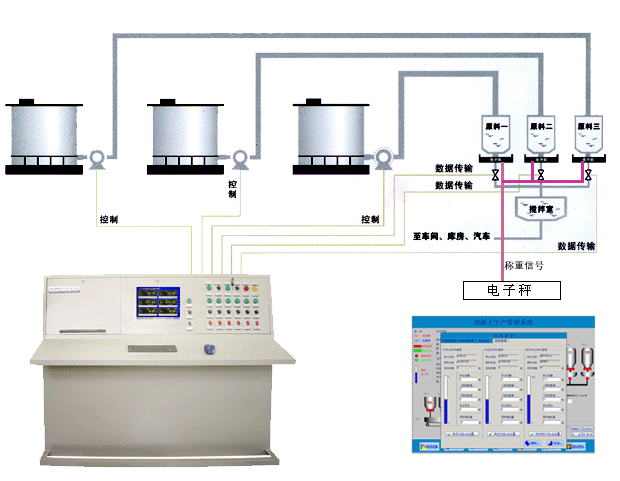

Chemical blending system main unit uses industrial PC as the host (industrial computer, fully compatible with standard computers, better suited for harsh industrial environments) + PLC + weighing transmitter (or weighing signal sampling board) + weighing sensor + weighing actuator. It may include metrology control host (host), weighing software (metrology software/control software), PLC weighing control instruments, weighing sensors, weighing hoppers (also known as hopper scales, bin scales, which can be either incremental or decremental scales); the actuator is generally; auger, belt, electric vibration machine, controllable valves, etc., and in most cases, a variable-frequency drive is used to achieve multi-level feeding.

Automatic raw material batching and automatic weighing in the chemical industry配料 system is a dynamic automatic weighing method throughout the production process, but the moment of measurement is static, ensuring the accuracy of measurement control. The software for the upper computer of the chemical industry batching system is developed in-house by our company under the Windows operating system, providing a tailored software control efficiency, and programmable software can also be adopted using configuration software.


Application Fields:

Ceramic batching control systems, glass batching control systems, chemical batching systems, food additive batching systems, grain weighing control, coal batching control systems, sintering material batching control, metallurgical protective material batching ratio control, concrete mixing control, pharmaceutical factory batching control, etc.


Key Performance Features:

Features manual, semi-automatic, and fully automatic batching functions; all weighing is done using an electronic scale.

Utilizing industrial computers and high-precision data acquisition cards, offering exceptional reliability.

Flexible material feeding sequence settings available

Can adjust control parameters online

Operation permission management feature

The formula can be set up for input and modification by relevant personnel via the local machine or local area network (optional).

Bill Printing Function

Features network management interface functionality

The management system utilizes standard databases, facilitating the client's later installation of ERP management information systems.

Comprehensive and practical

Users can customize the database for further development to suit their needs.

Control parameters fully open, facilitating flexible control of the mixing station.
