Application:

The Y300-II series weighing liquid filling machine can be used in conjunction with labeling machines, coding machines, labeling machines, capping machines, conveyors, and other auxiliary equipment. According to different material and process requirements, it can form automatic and semi-automatic filling production lines. Widely used in industries and products such as resins, daily chemicals, curing agents, lubricants, chemical solvents, adhesives, and diluents.

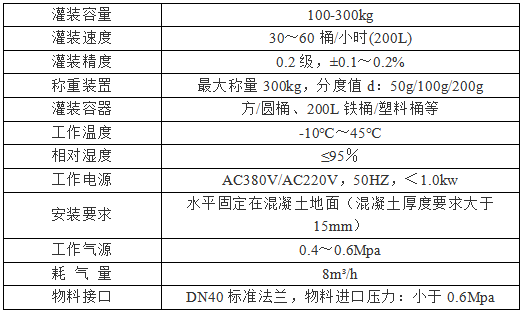

Technical Specifications:

Feature Highlights:

Manual/Automatic Selectable

Utilizing imported weighing components

Achievable working modes include bucket opening, below liquid level, at liquid level, and at the bottom of the drum.

Store up to 10 sets of formula data

Two-speed feeding, adjustable feeding speed

Automatically determine the tare weight range and remove it, resolving the impact of varying container weights on accuracy.

The contact parts are made of 316 stainless steel, while the rest is 304 stainless steel and carbon steel.

The gun barrel plug is made of polytetrafluoroethylene (PTFE) for corrosion resistance.

Automatically count the number of filling drums, total filling weight
