Y1500-I Series Weight-Feeding Liquid Filling Machine

The Y1500-I series filling machine utilizes overhead filling with a rotating filling gun design. It is suitable for filling non-foaming or light foamed liquid materials ranging from 100 to 1500 kg, and can fill multiple containers on a tray (four standard 200L drums or one IBC drum) according to pre-set values.

During filling, the operator simply moves the filling gun directly above the opening of the empty drum, presses the "Start" button, the filling gun descends, and after reaching the correct position, the system automatically removes the tare weight and then begins automatic fast/slow filling. Once filling is complete, the filling gun returns to its initial position. The operator then manually moves the filling gun to the next drum's opening, presses the "Start" button again, and repeats this process until 4 drums or 1 ICB drum are filled. Finally, the operator manually removes the full drums.



Y1500-I Series Weighing Liquid Filling Machine Application:

The Y1500-I series weighing liquid filling machine can be used in conjunction with labeling machines, coding machines, labeling machines, capping machines, conveyors, and other auxiliary equipment. It can be configured to form automatic or semi-automatic filling production lines based on different material and process requirements. Widely used in industries and products such as resins, daily chemicals, curing agents, lubricants, chemical solvents, adhesives, and diluents.



Y1500-I Series Weight-Feeding Liquid Filling Machine System Composition:

The filling machine is mainly composed of the filling gun moving mechanism (linear guide rail, locking device), filling gun, suction hood, liquid receiving cup, system control cabinet (including weighing instrument, touch screen, operation buttons, PLC), weighing platform (with imported weighing sensor), powered conveyor roller, and frame, etc.



Y1500-I Series Liquid Filling Machine Features:

Hand/Auto Selectable

Imported weighing components used

Quick Key Parameter Settings

Store up to 10 sets of formula data

Two-speed addition, adjustable addition speed

Anti-collision drum setup: Automatically returns when filling is dropped and hits an empty drum

Automatic lead time correction: Brings the next batch closer to the set value

Suitable for various container specifications, with adjustable quantitative values, offering a broader range of applications.

Intelligent operating interface, parameter modification is more convenient

Weight Overload Alarm & Fault Self-Diagnosis

Automatically determine tare weight range and tare off, mitigating the impact of varying container weights on accuracy.

The contact parts with materials are made of 316 stainless steel, while the rest are 304 stainless steel and carbon steel.

Fitting plug made of polytetrafluoroethylene (PTFE) material

Automatically count the number of filled drums and total weight of filling

Explosion-proof configuration, suitable for use in hazardous areas (optional)

Automatic Lid Loosener/Tightener (Optional)

Insulated Heating Unit (Optional)

Standard with RS232/485 interface reserved, optional DP, MUDBUS bus for convenient computer data management



Technical Specifications:

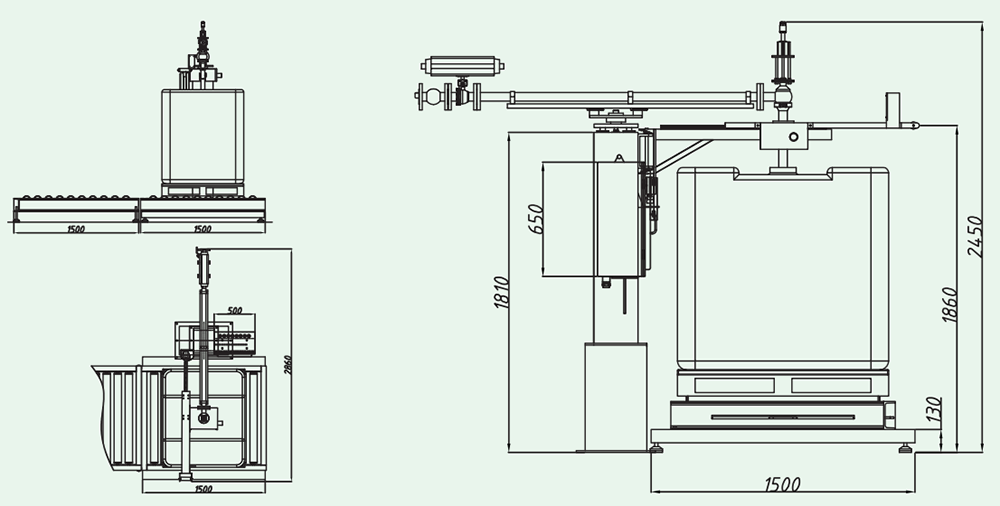

Specification Y1500-I

Filling Capacity: 100-1500kg

Filling Speed: 40-70 barrels/hour (200L)

Filling accuracy: 0.2 grade, ±0.1～0.2%

Weighing Device - Larger capacity up to 1500kg, graduation d: 100g/200g/500g

Filling Containers: Square/Circular Drums, 200L Steel/Plastic Drums/Pallets, IBCs, etc.

Operating Temperature: -10℃ to 45℃

Relative Humidity ≤ 95%

Working voltage: AC380V/AC220V, 50Hz, <1.0kW

Installation Requirements: Horizontally mounted on concrete flooring (concrete thickness required to be greater than 15mm)

Work Pressure: 0.4～0.6 MPa

Gas Consumption: 10 m³/h

Material interface DN40 standard flange, material inlet pressure: less than 0.6 Mpa
