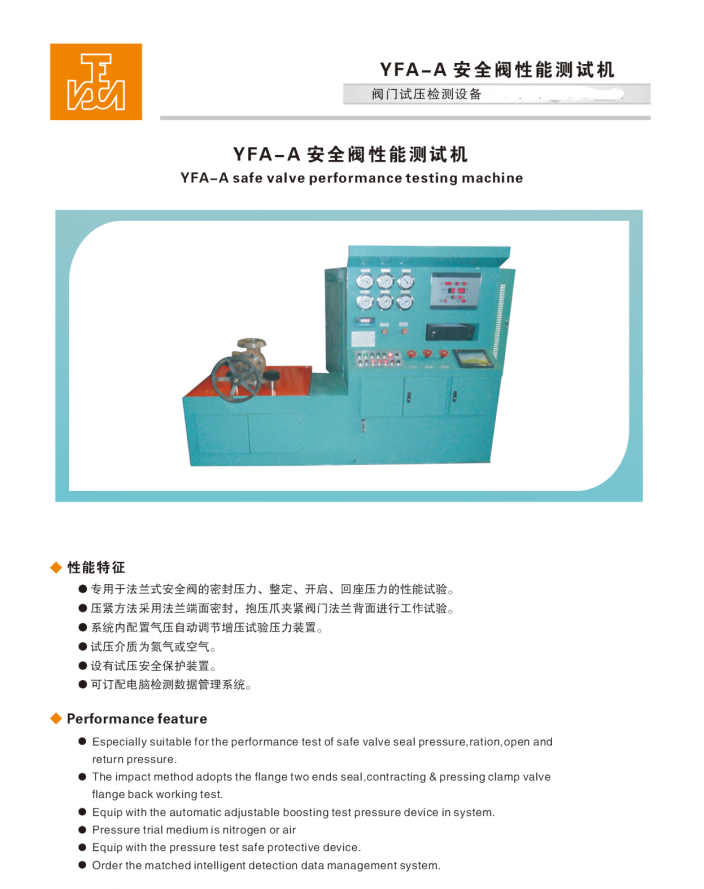

YFA-A Type Safety Valve Test Bench

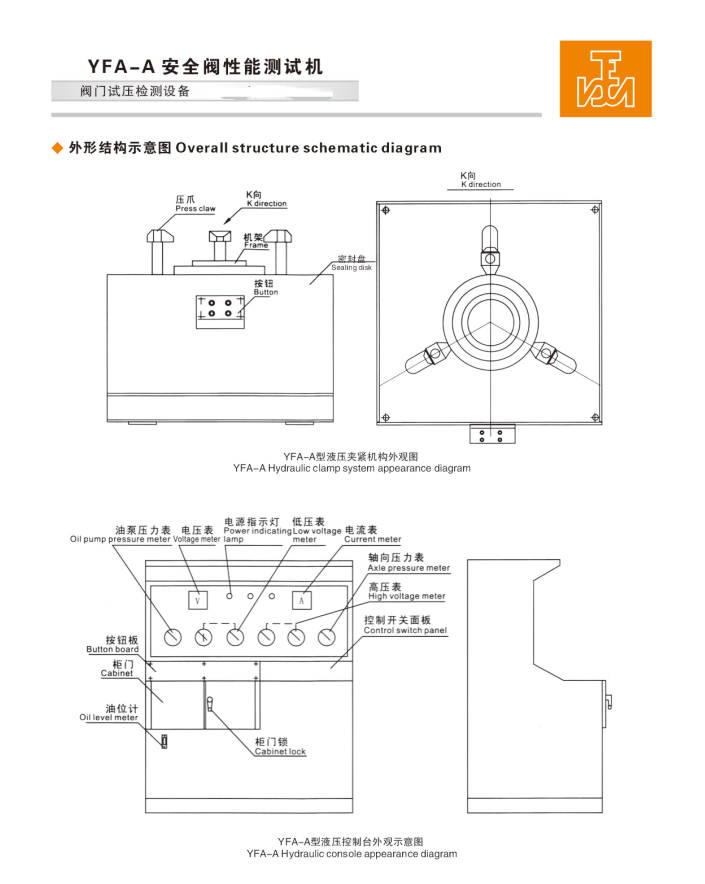

The YFA-A type safety valve hydraulic test bench integrates machinery, electricity, and fluid. It is suitable for flanged and threaded safety valves, using flange flat sealing. The workbench is equipped with a removable hydraulic clamp uniformly installed, which can automatically synchronize and adjust the position of the clamping pawls according to various valve specifications. It achieves automatic centering and positioning. During the valve test, the hydraulic clamp automatically grips the flange plane of the valve, with adjustable clamping force, having no external force impact on the tested valve itself. The clamping process is fully controlled by integrated buttons and executed by hydraulic components.
