The LXC-50 experimental centrifugal extraction machine is a new, fast, and efficient model.Liquid-liquid extractionSeparation equipment, which is superior to traditional extraction equipment such asExtracting tank、Extract TowerOffering higher separation efficiency, more conducive to continuous production realization.

Centrifugal extractors use an electric motor to drive a drum to rotate at high speed. The two liquids to be mixed and separated are mixed and transferred through the shearing force generated by the agitator blades, and then quickly separated under the centrifugal force produced by the high-speed rotation of the drum.

Centrifugal extractors can be used individually or in a multi-stage series to achieve countercurrent extraction. They feature high mass transfer efficiency, short residence times of both phases, and minimal retention, with simple operation and the ability to adjust speed, flow ratio, and mixing intensity as needed.

To meet customer needs, Zhenfen Separation offers extraction equipment consulting and services: from initial communication and planning of process objectives or operational conditions, to designing solutions, custom manufacturing, and production, we help you build the ideal extraction equipment, providing greater peace of mind and convenience. Welcome to inquire!

Hotline for inquiries: 15380766707!


Mixed process

Light and heavy phase materials are fed into the mixing zone of the equipment via the feed port at the bottom of the centrifugal extraction unit in the required ratio as per the process specifications. The motor drives the mixing structure at high speed, rapidly blending and dispersing the light and heavy phases, thereby completing the mixing mass transfer process.

Separation process

The mixed liquid enters the drum under the action of the vortex disc or feeder. Within the cavity formed by the drum's web, the mixed liquid quickly synchronizes with the drum's rotation. Under the force of centrifugal force, the heavier phase liquid with higher density gradually moves away from the drum center and towards the drum wall as it flows upwards. Conversely, the lighter phase liquid with lower density moves away from the drum wall and towards the center. After clarification, the two liquid phases enter their respective collecting chambers through individual weir plates and exit via the heavy and light phase outlets, thereby completing the two-phase separation process.

Features of the equipment

♦High mixing efficiency and extraction effect: Can flexibly match the mixing structure according to different material system requirements to achieve efficient extraction.

♦ Effective two-phase separation: The equipment uses centrifugal force to separate the aqueous phase and the organic phase, achieving rapid and stable separation while avoiding interference from human factors.

♦ Low online liquid holding capacity: The internal liquid holding capacity of the equipment is small, for example, the liquid holding capacity of a 6m³/h processing capacity equipment can be 35L.

♦ The equipment has a low magnification effect: The equipment separates using centrifugal force and employs precise mixing, making it a typical process intensification device with a low magnification effect.

♦ Energy-saving and Environmental Protection: Low power consumption equipment, fully enclosed, and high-efficiency, environmentally friendly energy-saving devices.

♦ Small equipment footprint

Application Fields: Fine Chemical Industry, Biofermentation Industry, Petrochemical Industry,HydrometallurgyIndustry, New Energy Battery Industry, Environmental Protection Industry

Wastewater Treatment, Fermentation Broth Extraction, Solvent Extraction and Recovery, Lithium-ion Battery Recycling, Rare Metal Extraction, Oil-Water Separation,Salt Lake Lithium ExtractionMaterial purification, esterification liquid washing

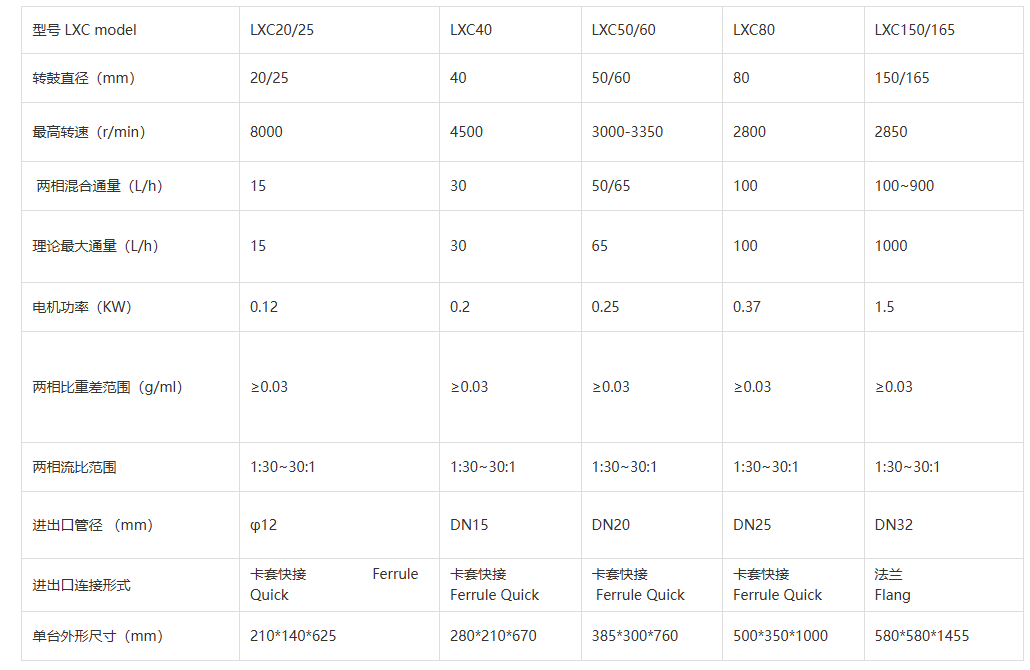

Equipment Model




Equipment Main Material: 304, 316L, 2205, fluoropolymer, reinforced fluoropolymer, steel lined fluoropolymer, etc. Customized according to customer's liquid system.Welcome to inquire! Hotline for inquiries: 15380766707!
