Well-designed

Horizontal internal combustion three-pass full-wet back design with 100% corrugated furnace tube. Excellent thermal expansion properties. The water encircles the fire overall design, with ample heating surface area and rational structural arrangement, ensuring high efficiency of the boiler.

High Efficiency and Energy Saving: Steam and hot water boiler series have a thermal efficiency of 90%-95%. The large combustion chamber, combined with reasonable structural arrangement, can transfer more heat to the water, greatly enhancing the heat exchange capabilities between fuel-steam and fuel-hot water.

Meets environmental standards: Large combustion chamber for optimal radiant heating, paired with a high-quality, reliable imported burner, ensuring complete fuel combustion and significantly reducing harmful emissions in flue gas. Our fuel (gas) steam and hot water boilers have passed legal department testing and comply with national environmental standards, making them ideal eco-friendly products.

Superior Configuration: Equipped with world-renowned burners, advanced control systems (with mainly imported components), valves, and pumps all using national quality products. The excellent boiler accessory configuration strongly ensures the safe and stable operation of the boiler.

Fully Automatic Operation: Simply press the start button, and the boiler will operate according to the set program. Load reduction, water supply, and other functions are all fully automatic, requiring no constant supervision.

Easy maintenance and repair: The boiler is equipped with movable smoke box doors at both front and back, with fire observation and inspection ports at the rear, allowing access into the furnace for inspection and cleaning. Manholes are provided on the boiler body, with the structural design thoroughly considering ease of future maintenance and repair.

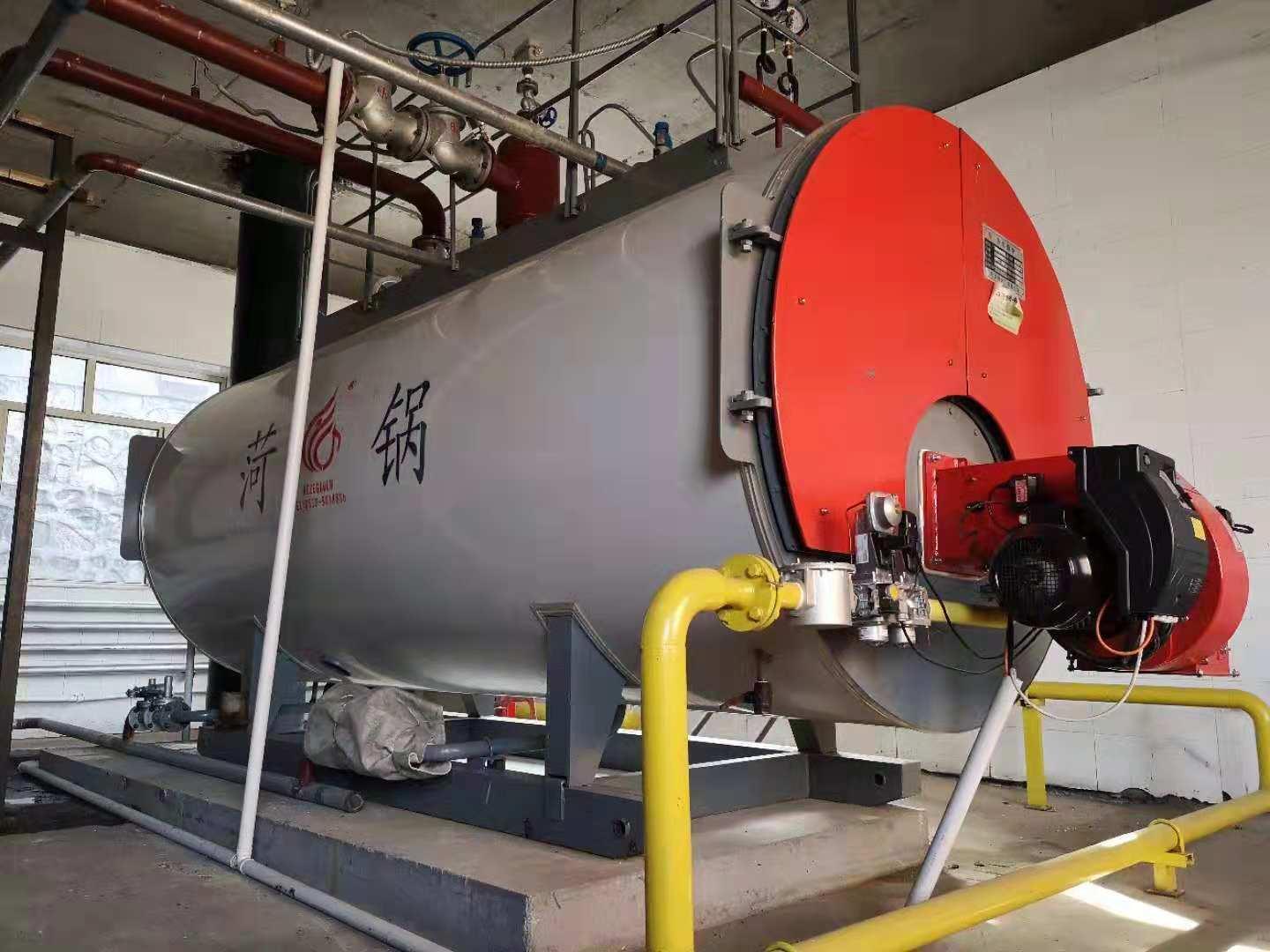

WNS Series Fuel (Gas) Steam Boiler Product Introduction

Quick-installation internal combustion three-pass fire-tube steam boiler. Utilizes an offset furnace tube wet-back structure. High-temperature flue gases sequentially pass through the second and third pass smoke tubes, then through the rear smoke chamber and up the chimney. The boiler is equipped with removable front and rear smoke box lids for easy maintenance. The boiler is fitted with high-performance technical equipment, featuring automatic proportional adjustment, automatic water regulation, programmable start and stop, and full automatic operation, as well as automatic protection functions such as high and low water level alarms, extremely low water level, over-pressure, and fireout. This type of boiler boasts compact structure, reliability, simple operation, quick response, low pollution, low noise, and high efficiency.

Key Features:

1. The overall structure of this gas-fired steam boiler is reasonable, compact, and belongs to the boiler island type, meeting the requirements for quick assembly and factory shipment. Upon delivery, the product is composed of three main parts: the boiler main unit, chimney, and piping. The main unit and chimney have been completed within the factory, and the piping valves and instruments matched with the main unit are already installed. Upon arrival at the site, simply connect the main unit and chimney, and the boiler can be tested after the gas, electricity, and water piping are connected. This significantly reduces the cycle time and ensures the product quality.

2. The boiler design features advanced performance. The main boiler body is an integral structure, with the assembly placed on the front smoke box cover, primarily arranged for the heating surface and room sections. It boasts a reasonable and compact structure, low steel consumption, and employs an offset wavy firebox. The insulation layer uses a new lightweight thermal insulation material, and the outer packaging is made of colored thin plates, with the shape of a rectangular prism.

The boiler boasts significant advancements and aesthetic appeal in performance, weight, structural dimensions, and appearance compared to domestic products of the same capacity. The water supply equipment of this boiler is mounted on the boiler base on the right side, making it an integrated unit with the main unit, eliminating the need for an additional foundation.

3. The water circulation is simple, with a well-structured pressure component design. It can operate while ensuring water quality.

4. Comprehensive auxiliary equipment available, featuring advanced comprehensive technical performance
