Our company specializes in tank-type pressure vessels, which are among our key products. These include LPG storage tanks, liquid ammonia tanks, liquid chlorine tanks, propane tanks, pentane storage tanks, and low-temperature storage tanks for liquid oxygen and nitrogen. Particularly, our LPG storage tanks have been produced in bulk quantities with a continuous production line, and various models are available in stock.

Table of Performance Parameters for Class III Storage Tanks

Tank Type Product Model Effective Volume m3 Working Pressure MPa External Dimensions mm

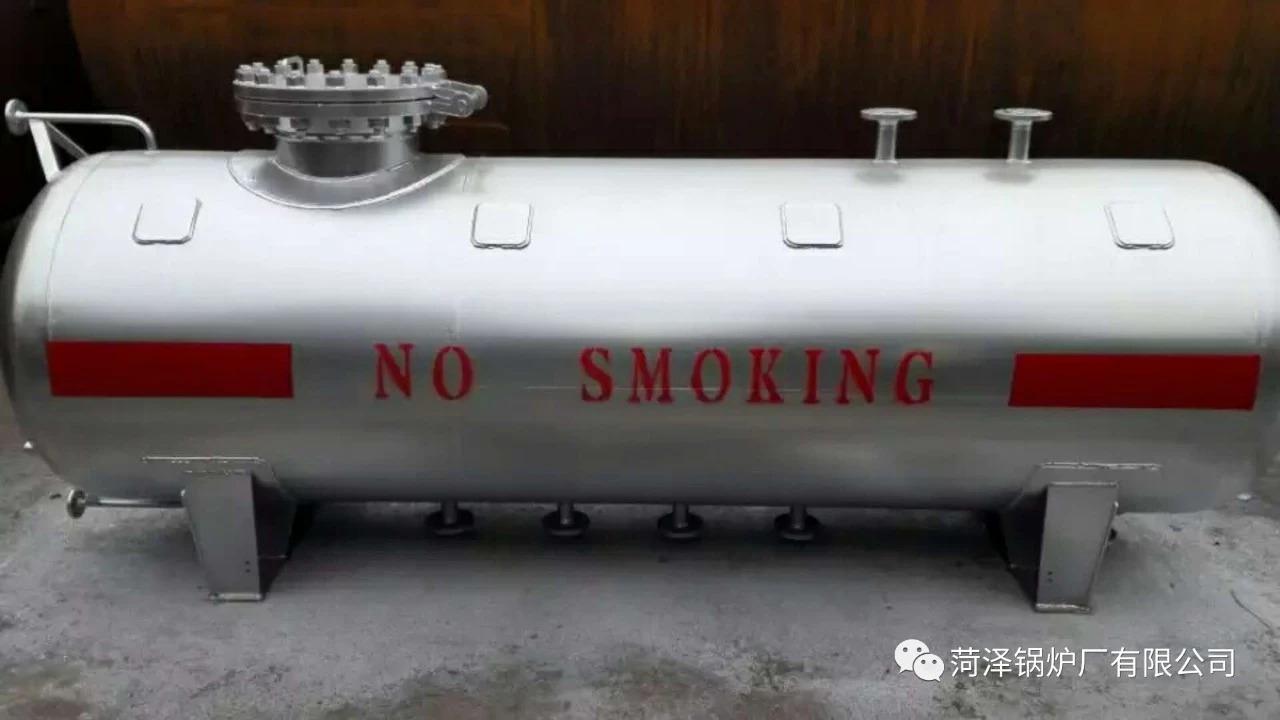

LPG Storage Tank

[On the ground]

WG 1.77-1400-551.77DN1400×2750

WG 1.77-1400-10101.77DN1400×5980

WG 1.77-1600-10101.77DN1600×4400

WG 1.77-2000-20201.77DN2000×5650

WG 1.77-2200-25251.77DN2200×5800

WG 1.77-2200-30301.77DN2200×7100

WG 1.77-2600-40401.77DN2600×6600

WG 1.77-2600-50(B)501.77DN2600×8500

WG 1.77-2600-60601.77DN2600×10360

WG 1.77-3000-1001001.77DN3000×13200

WG 1.77-3600-1201201.77DN3600×10500

WG 1.77-3600-1501501.77DN3600×13500

WG 1.77-3800-2002001.77DN3800×16300

LPG Storage Tank

[Underground]

WDG 1.77-1400-551.77DN1400×2750

WDG 1.77-1600-10101.77DN1600×4400

WDG 1.77-2200-25251.77DN2200×5770

WDG 1.77-2200-30301.77DN2200×7100

WDG 1.77-2600-50501.77DN2600×8500

WDG 1.77-2800-60601.77DN2800×8740

WDG 1.77-3000-1001001.77DN3000×13200

Supply listed company He Guo brand LPG Storage Tanks, ranging from 5 cubic meters to 200 cubic meters of LPG storage tanks

专业定制液化气储罐哪家质量好-知名液化气储罐价格-销售液化气储罐批发价-正规液化气储罐制造厂

Liquefied Petroleum Gas TankWe offer compressed gas or liquefied gas storage tanks.Liquefied Petroleum Gas (LPG) Storage TankFixed-volume and variable-volume storage tanks, respectively, depending on whether the tank volume is fixed or not; large fixed-volumeLiquefied Petroleum Gas Storage TankSpherical in shape, with smaller ones being cylindrical. The movable volume storage tank, also known as a low-pressure gas storage tank, commonly referred to as a gas holder, can vary in its geometric volume, is tightly sealed to prevent leakage, and serves to balance air pressure and regulate the gas supply volume. The pressure generally does not exceed 60MPa.

Liquefied gas storage tanks undergo rigorous quality assessment for the material of pressure components, appearance dimensions, weld quality, operational quality, installation quality, internal equipment, and safety accessories.

Routine physical and chemical testing of the drum material, such as mechanical properties and chemical composition.

The welding joints, welds, tank end caps, and the mutual geometric positions of all pressure components are rigorously inspected through X-ray non-destructive testing and magnetic particle inspection. Tests are conducted for the product's sealing, pressure resistance, and all technical indicators that could affect the safe operation of the product.
