Product Description

Brand Hegu Group Model CFW-60/0.8

Material: Stainless Steel, Diameter: 2916mm

Application Range    -162℃    Volume    60000L

Heat Exchange Area - See drawing in square meters (㎡) | Ambient Temperature - See drawing in degrees Celsius (℃)

Wall Thickness: 8mm, Outer Dimensions: φ2916*14929mm

Origin: Shandong Heze

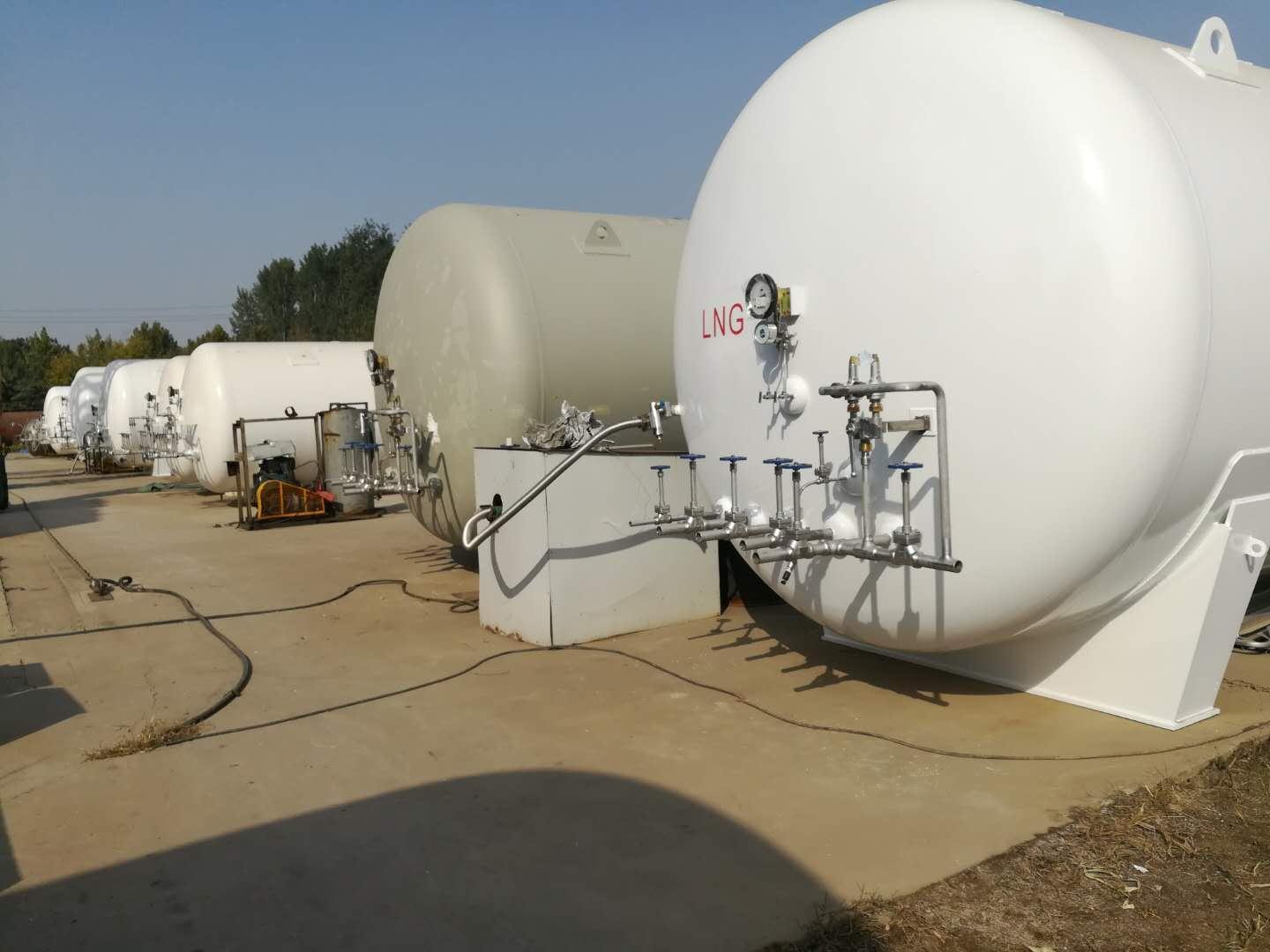

Horizontal 60 Cubic Meter LNG Storage Tank, Manufacturer of Liquefied Natural Gas Storage Tanks

LNG storage tanks are low-temperature insulated pressure vessels that can be refilled multiple times. These tanks offer high gas tightness, low thermal conductivity, excellent insulation properties, minimal evaporation loss, and a long service life. They are produced on a large scale through a continuous production line. Heze Boiler Factory produces 3-cubic, 5-cubic, 10-cubic, 15-cubic, 20-cubic, 30-cubic, 50-cubic, 60-cubic, and 100-cubic low-temperature LNG storage tanks, as well as custom-sized low-temperature LNG storage tanks.

The operational pressure of the LNG low-temperature storage tank is 0.6-1.44 MPa, with an operating temperature of -162°C, and it features a flat, double-walled cylindrical design. The tank consists of two layers: the inner layer for storing liquefied natural gas and the outer layer providing protection and insulation. To minimize heat transfer from the outside to the tank, the inner and outer shells are separate and independent. The tank is composed of a carbon steel vacuum shell and a pressure vessel within it. It can operate at low to medium pressure according to actual design requirements. The burst disk and double-acting safety valve can protect the tank in case of excess pressure. The safety relief device is designed to protect the internal pressure vessel and vacuum shell, adhering to GB150 and the "Fixed Container Regulations." This includes a double-acting safety relief valve and a burst disc assembly for the internal pressure vessel, and a burst cap for the vacuum shell (outer shell). The tank is designed and manufactured for safety, reliable operation, and durability (capable of years of trouble-free operation). When operating the tank, strict adherence to proper safety and operational procedures is mandatory.

LNG storage tanks are the main equipment of LNG gasification stations, directly affecting the normal production of the stations and accounting for a significant portion of the construction cost. They can be categorized into underground tanks, above-ground metal tanks, and metal prestressed concrete tanks. For LNG storage tanks, there are currently vacuum powder insulation tanks, positive pressure stacking insulation tanks, and high-vacuum layer insulation tanks. Medium and small-scale gasification stations typically choose vacuum powder insulation low-temperature tanks. The tanks are divided into inner and outer layers, with the space between them filled with pearly sand and evacuated to reduce the transmission of external heat, ensuring that the daily gasification rate of LNG inside the tank is less than 0.3%.

Horizontal 60-cubic-meter LNG Storage Tank, Manufacturer of Liquefied Natural Gas Storage Tanks
