The construction of the gas burner consists of the following 5 systems:
1. Air Supply System. The function of the air supply system is to deliver air of a specific velocity and volume into the combustion chamber. Its main components include: housing, fan motor, fan impeller, air gun flame tube, air door controller, air door baffle, cam adjustment mechanism, and diffuser disk.
2. Ignition System. The function of the ignition system is to ignite the mixture of air and fuel. Its main components include: an ignition transformer, an ignition electrode, and a high-voltage ignition cable. A relatively safe type of ignition system is the electronic pulse ignition, widely used by manufacturers like Zuyi Energy-saving Gas Boilers. It is convenient and time-saving, requiring only a finger press, and it boasts high safety, preventing accidents caused by unexpected extinguishing. In the event of a fireout, the control system can promptly close the solenoid valve, cutting off the gas supply.
3. Monitoring System. Its function is to ensure the safe and stable operation of the burner, with main components including flame monitor, pressure monitor, temperature monitor, etc.
4. Fuel System. The function of the fuel system is to ensure the fuel required for the burner's combustion. The fuel system of oil burners mainly includes: fuel pipes and connectors, fuel pumps, solenoid valves, nozzles, heavy oil preheaters. Gas burners mainly have filters, regulators, solenoid valve groups, ignition solenoid valve groups, and fuel butterfly valves.
5. Electric Control System. The electric control system serves as the command and coordination center for the aforementioned systems, primarily controlled by programmable controllers. Different programmable controllers are paired with various burners, with common types including the LFL series, LAL series, LOA series, and LGB series. The main distinction lies in the varying time intervals of the program steps.
YY(Q)W Fuel (Gas) Organic Heat Carrier Boiler
Product Number: 01
Simple Description: Fuel (Gas) Organic Heat Carrier Boiler
Product Keywords: Fuel (Gas) Organic Heat Carrier Boiler
YY(Q)W Fuel(Gas) Organic Heat Carrier Boiler
YY(Q)W Fuel (Gas) Organic Heat Carrier Boiler Features
The burner interface is sealed with the coil, utilizing a labyrinth patent technology for excellent sealing properties, ample expansion space, extending the burner's lifespan, and enhancing thermal efficiency.
The boiler features a two-tube structure, three-pass flue gas design, compact in structure, space-saving, and includes an air preheater, with the highest thermal efficiency reaching over 92%.
Multiple operational safety protections ensure safer and simpler boiler operation, with high temperature control accuracy (±1℃) and excellent combustion performance.
Automated control features have been implemented, saving on human resources while extending the lifespan of the equipment.
Heze Boiler Factory Co., Ltd. was established in1984Year, located in Jining Road, Economic and Technological Development Zone, Heze City2218Item No., Occupied Area10Over 10,000 square meters, main workshop area30000㎡. Currently staffed800Multiple personnel, including engineering technicians110Additional personnel, fixed assets2.5Billions.
Company possessesBGrade A boiler manufacturing qualificationA2Grade pressure vessel design and manufacturing qualifications2Grade boiler installation andGB、GCQualifications for installation of pressure pipelines, electromechanical equipment, etc. The company values technological research and innovation, and is recognized as a national high-tech enterprise, a famous trademark enterprise in Shandong Province, a provincial energy-saving and environmental protection demonstration enterprise, and a member of the China Chemical Equipment Association.

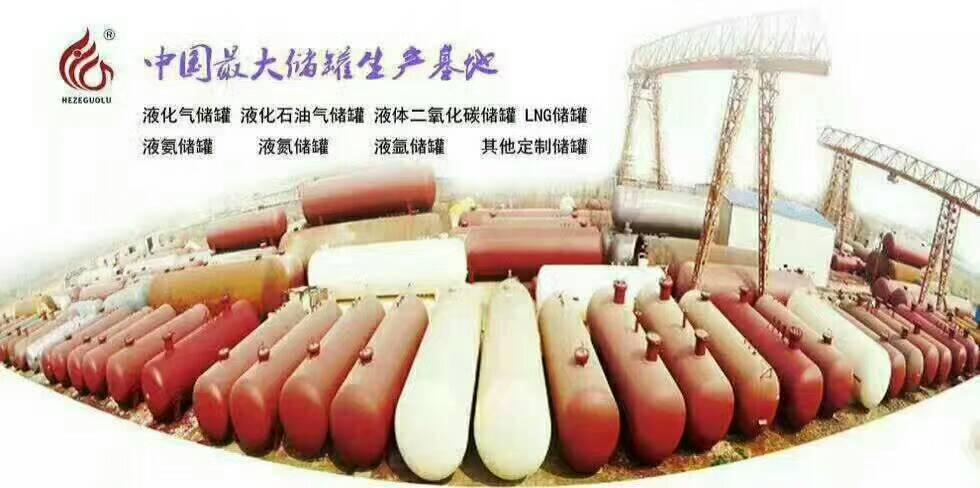

The company is highly focused on the green energy special equipment industry and is a professional manufacturer of special equipment such as boilers and pressure vessels. Leading products include: fuel oil(Gas)Boilers, biomass boilers, waste heat boilers, coal-fired boilers, organic heat carrier boilers, and other boiler products. LNGTanks, Oxygen/Nitrogen/Argon Storage TanksCO2Storage tanks and vacuum-insulated cryogenic pressure vessels; LPG storage tanks, liquid ammonia storage tanks, denitrification and auxiliary equipment, heat exchangers, complete chemical equipment sets, stainless steel pressure vessels, refrigeration auxiliary equipment, etc.
The company operates with strict and efficient management.ISO9001Quality Management SystemISO14001Environmental Management SystemOHSAS18001Occupational Health and Safety Management System Certification. The company holds independent import and export rights, with products sold in over twenty provinces, municipalities, and autonomous regions, and exported to Southeast Asia, Central Asia, Africa, Latin America, and other countries and regions, enjoying high praise from customers.
Business-oriented“Rise to become a top-tier special equipment supplier in China, and uphold the reputation of "Made in China."”In pursuit of our vision for development, the company adheres to“Achieve employees' dreams, create customer value, and strive for the prosperity of our motherland.”Our corporate mission is dedicated to the advancement of green special equipment, providing outstanding products and services to contribute to society.
