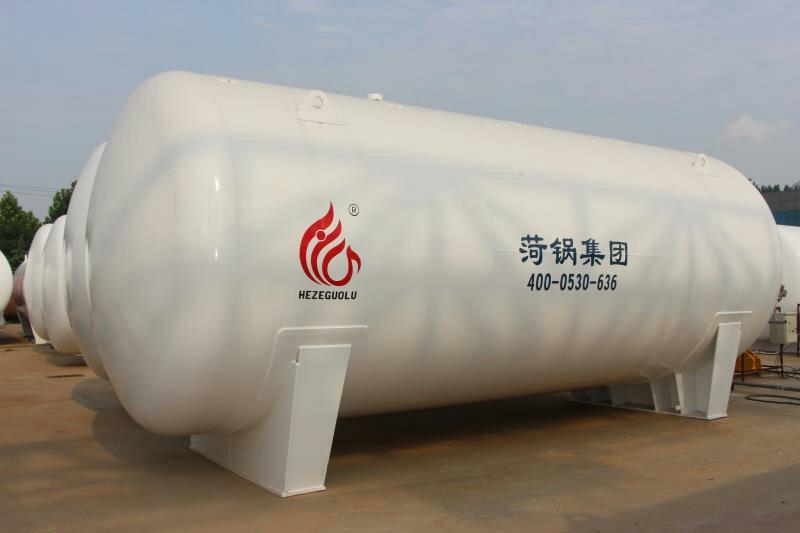

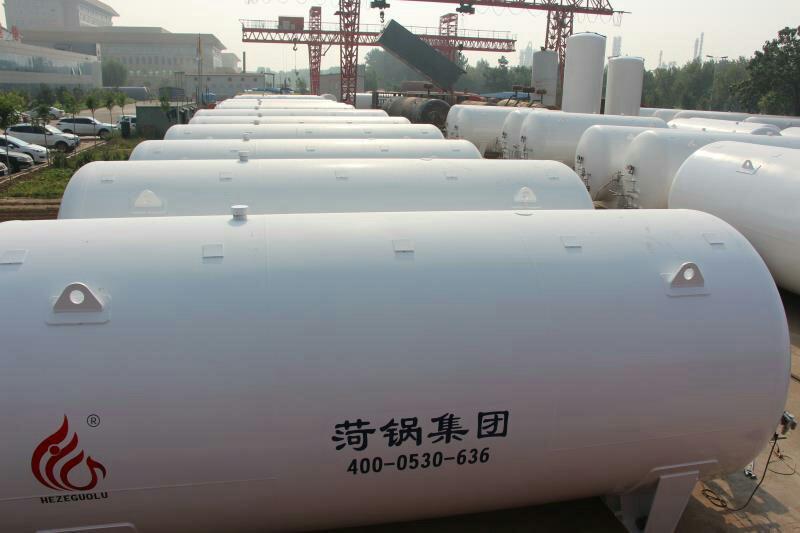

60-cubic-meter LNG tank
Liquefied Natural Gas (LNG) Storage Tank Technical Quotation Proposal
RMB Unit; (10,000 RMB)
Serial Number
Name
Specs and Models
Quantity
Unit Price
Price
Note
1
Low-temperature LNG storage tank
CFL-60/0.8
(Maximum Liquid Capacity: 23T)
1 unit
37.3
37.3
Vertical; group seat support.
Note: This quote is after tax, excluding shipping costs.
Production Cycle: Shipment ready within 15 days of contract effectiveness.
Payment Terms: 30% deposit upon contract signing, with the remaining balance to be paid in full before shipment.
Vessel Color: Base paint is polyurethane, top coat is white acrylic magnetic paint, each applied twice.
60m3 Vertical LNG Storage Tank Technical Specifications:
Container Category: Type II
Structure Type: Horizontal
Insulation Method: Vacuum Powder Insulation (Pearlescent Sand)
Medium: LNG (Liquefied Natural Gas)
Design Temperature: Inner Shell: -196℃ Outer Shell: -20-50℃
Design Pressure: 0.84 MPa Outer Shell: -0.1 MPa
Maximum Working Pressure: 0.8 Mpa Outer Shell: -0.1 MPa
Volume: 60 m³ Effective Volume: 54 m³
Material: Inner Shell: S30408; Outer Shell: Q345R
Specs: Inner Shell: ?2500×11310×10/10; Outer Shell: ?3000×12110×10/12
Total Length: 24,260 kg | Insulation Spacing: 250mm | Inner Tube Material: S30408
Insulation Sandwich Material: TCHP-50 Pearl Sand Filling Quantity: >52.2 m³
Internal Cylinder Air Pressure Test: Medium: Nitrogen; Test Pressure: 0.96 Mpa
Valves; Low-temperature stainless steel gate valves
Final vacuum degree: ≤5 Pa
Static evaporation rate ≤ 0.2%/d
Vacuum Insulated Sandwich Panel Air Leak Rate ≤ 2×10^-6 Pa.m^3/s
Manufacturing Acceptance Standards; GB150-2011, "Container Regulations", GB/T18442-2011
Tank pipeline valve instrument list (domestic high-quality products):
Serial Number
Product Name
Specification
Quantity
Manufacturer
1
Low-temperature long-handled ball valve
DN50
6 sets
Furui Special Equipment Co., Ltd.
2
Low-temperature long-handled ball valves
DN10
1 set
Furui Special Equipment Co., Ltd.
3
Three-way ball valve
DN25
1 set
Furui Special Equipment Co., Ltd.
4
Safety Valve
DN25
2 sets
Furui Special Equipment Co., Ltd.
5
Detonation Sheet
DN25
2 pieces
Shanghai Hualy
6
Level Differential Pressure Gauge
1 set
Sichuan Xinlan Stone or Lanshi
7
Vacuum Valve Assembly
DN50
1 set
Sichuan Xinlan Shi or Lan Shi
8
Oxygen Pressure Gauge
0-1.0MPa
1 piece
Chengdu Tianwei Instrument Factory
Huzhou Boiler Factory Co., Ltd.
