Heze Boiler Factory Co., Ltd. was established in1984Year, located in Jinhua Road, Economic and Technological Development Zone, Heze City2218# Number, Occupied Area10Over 10,000 square meters, main workshop area30000㎡. Currently staffed800Multiple personnel, including engineers and technicians110Additional personnel, fixed assets2.5Billions.
The company boastsBGrade boiler manufacturing qualificationA2Grade pressure vessel design and manufacturing qualifications2Grade boiler installation andGB、GCClassified pressure pipeline installation qualifications, equipment and machinery installation qualifications, etc. The company values scientific research and innovation, and is recognized as a national high-tech enterprise, a famous trademark enterprise in Shandong Province, a provincial energy-saving and environmental protection demonstration enterprise, and a member unit of the China Chemical Equipment Association.
The company is highly focused on the green energy special equipment industry, specializing in the professional manufacturing of boilers and special pressure vessels. Lead products include: fuel oil(Gas)Boilers, biomass boilers, waste heat boilers, coal-fired boilers, organic heat carrier boilers, and other boiler products. LNGTanks, Oxygen/Nitrogen/Argon Storage TanksCO2Tanks and vacuum-insulated cryogenic pressure vessels; LPG storage tanks, liquid ammonia tanks, denitrification and auxiliary equipment, heat exchangers, complete chemical equipment sets, stainless steel pressure vessels, refrigeration auxiliary equipment, and other pressure vessel products.
The company operates with strict and efficient management.ISO9001Quality Management SystemISO14001Environmental Management SystemOHSAS18001Occupational Health and Safety Management System Certification. The company holds independent import and export rights, with products sold in over twenty provinces, municipalities, and autonomous regions, and exported to Southeast Asia, Central Asia, Africa, Latin America, and other countries and regions, enjoying high praise from customers.
Corporate“Becoming a top-tier special equipment supplier in China, validating the reputation of Made in China.”For our vision of development, the company adheres to“Achieve employees' dreams, create customer value, and strive for the prosperity of our motherland.”Our corporate mission is committed to the development of green special equipment, dedicated to providing exceptional products and services to society.
Low-temperature storage tanks are primarily used in the industrial gas sector, with a broad range of applications across various industries such as steel mills, chemicals, oil, food, and aerospace. These industries require gases for their operations. Oxygen, nitrogen, argon, and other gases needed in large quantities for industrial use are separated from air using air separation equipment, which compresses and liquefies the air and then separates the oxygen, nitrogen, and argon based on their different boiling points, before storing them in low-temperature storage tanks.
The company has two shot blasting rooms, all tanks are treated with pneumatic steel shot blasting for rust removal, ensuring both the appearance quality and paint quality. (After the overall shot blasting, the paint adhesion is enhanced, significantly extending the lifespan of the paint.)
Each unit undergoes hydrostatic testing to ensure equipment strength safety; each unit is tested for airtightness to guarantee sealing performance. After hydrostatic testing, the internal air is blown clean; and plastic plates are used to seal all pipe openings to prevent secondary contamination from the outside.

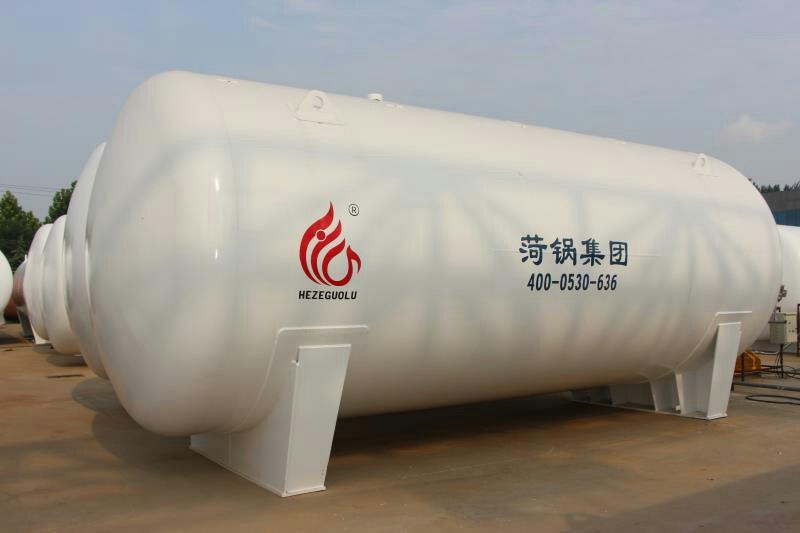

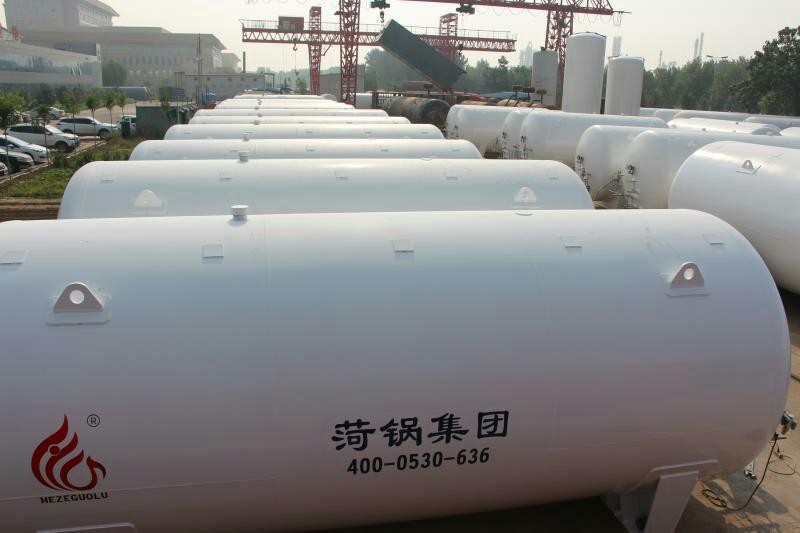

Huzhou Boiler Factory Co., Ltd.'s Pressure Vessel Department mainly produces 5-200 cubic meter liquefied gas storage tanks, liquid ammonia tanks, etc. The series of liquefied petroleum gas storage tanks are designed, manufactured, and inspected in strict accordance with the GB150-2011 standard, using Q345R steel plates specifically for pressure vessels. The entire tank is rolled using CNC coiling equipment and features fully automatic gas shielded welding technology, with strong and aesthetically pleasing welds. After undergoing overall heat treatment in an annealing furnace, the internal stress of the tank is better eliminated, enhancing the material's toughness and hardness, offering superior results compared to resistance wire heat treatment. The liquefied gas storage tanks undergo 100% X-ray inspection to ensure the steel plates and welds meet technical requirements. High-pressure jet descaling with small steel shot is used, providing much better results than manual or sandpaper polishing. Then, coated with four layers of paint, two rust-proof and two topcoats, the tanks can be used for years without repainting. Each tank is inspected and certified by the Quality and Technical Supervision Bureau before shipment, ensuring nationwide validity.
