Hekou Group 60 cubic meter LNG storage tank price
60-cubic-meter LNG tank is a low-temperature vacuum-insulated tank with a powder-insulated design. The structure consists of an inner and outer container forming a double-walled tank, made of austenitic stainless steel. The outer container material varies by customer location, choosing between Q235-B or 16MnR. The space between the inner and outer containers is filled with pearlite insulation material and evacuated. The insulation material is filled with pearlite in its heated state and evacuated within the sandwich layer.
60-cubic-meter LNG Storage Tank - Liquefied Natural Gas Storage Tank Application Scope
Our products are suitable for industries such as steel, metallurgy, construction, chemicals, pharmaceuticals, food, glass, civil, and medical, and help reduce gas consumption costs. They are the preferred liquid gas storage containers across various industries.
Product Features of Liquefied Natural Gas Tanks
1. Liquefied Natural Gas Tank Models: Vertical and Horizontal
2. Effective Tank Volume: 2m3 - 100m3 (common volumes include 2m3, 3m3, 5m3, 10m3, 15m3, 20m3, 30m3, 50m3, 100m3) and can be custom-designed according to customer specifications.
3. Working Pressure: ≥0.2 MPa (common pressures include 0.8 MPa, 1.6 MPa)
4. Storage Media: Liquid Oxygen (LOX), Liquid Nitrogen (LIN), Liquid Argon (LAr), Liquid Carbon Dioxide (LCO2), Liquefied Natural Gas (LNG), etc.
5. Design Pressure: 0.84 MPa, 1.68 MPa; Working Pressure: 0.8 MPa, 1.6 MPa
6. High impact resistance and strong shock absorption properties.
60-cubic-meter LNG Storage Tank: Advancements in Liquefied Natural Gas Storage Tanks
With the development of the gas industry and natural gas industry, the application of liquefied natural gas (LNG) storage tanks has become increasingly widespread. In addition to large-scale LNG facilities and LNG receiving stations, which are equipped with large and extra-large horizontal low-temperature storage tanks, air separation units, small and medium-sized LNG facilities, LNG storage and distribution stations, and LNG gasification stations generally use small and medium-sized horizontal low-temperature storage tanks, with capacities usually below 10,000 m³. As the core equipment of such facilities, the selection of the tank type significantly affects the overall cost and operational expenses of the unit. Choosing the appropriate type of horizontal low-temperature storage tank to meet the equipment requirements has become particularly important.

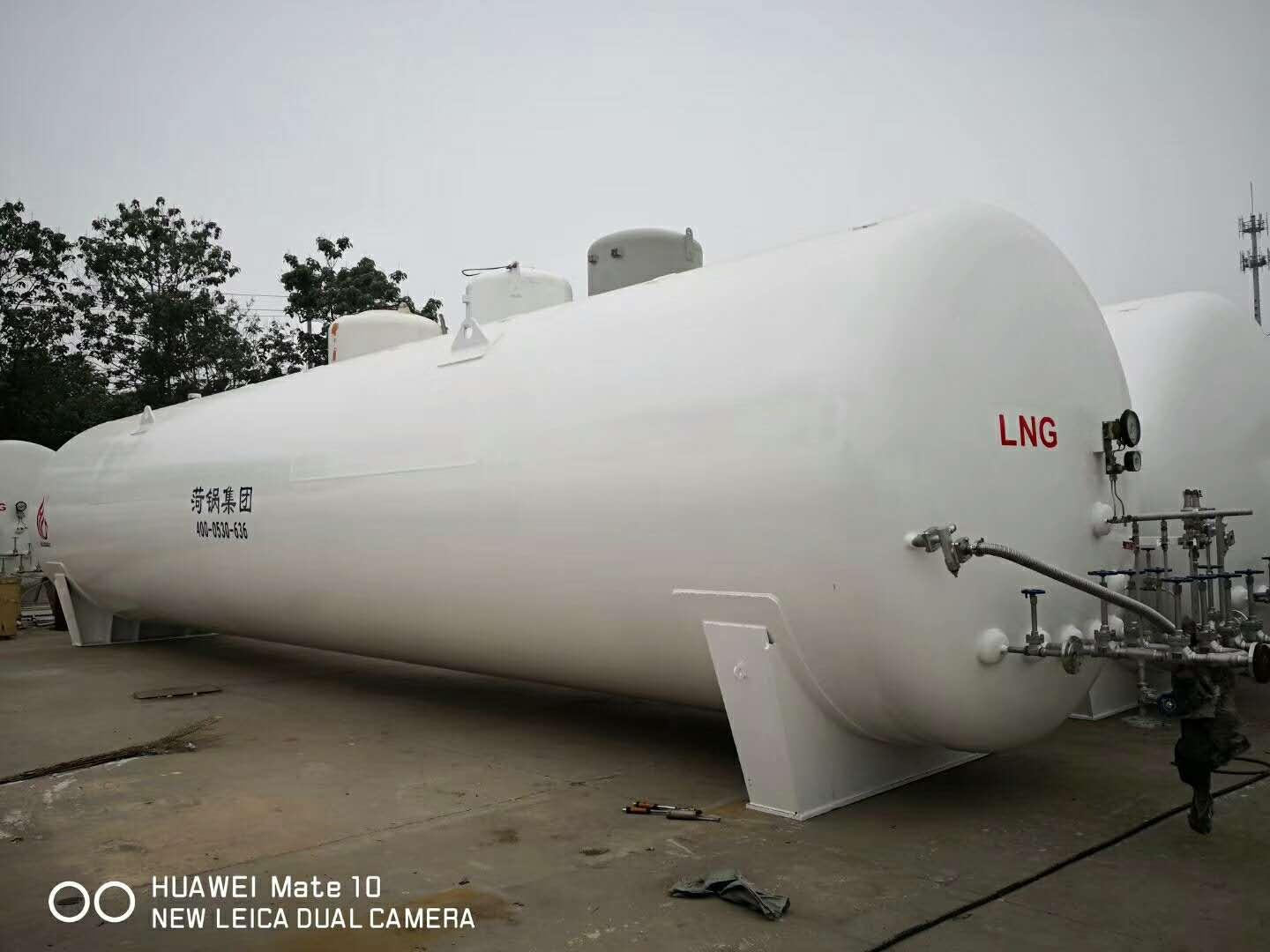

60-cubic-meter LNG storage tank
Technical Quotation for Liquefied Natural Gas (LNG) Storage Tanks
RMB Unit; (10,000 RMB)
Serial Number
Name
Specs and Models
Quantity
Unit Price
Price
Note
1
Low-temperature LNG storage tank
CFL-60/0.8
(Maximum Liquid Capacity: 23T)
1 unit
37.3
37.3
Vertical; group seating support.
Note: This quote is after tax, does not include shipping fees.
Production Cycle: Shipment ready within 15 days of contract生效.
Payment Terms: 30% deposit upon contract signing, with the remaining balance due in full before shipment.
Tank Color: Base coat is polyurethane paint, top coat is white acrylic magnetic paint, with two coats of each.
60m3 Vertical LNG Storage Tank Technical Specifications:
Container Category: Type II
Structural Style: Horizontal
Insulation Method: Vacuum Powder Insulation (Pearlescent Sand)
Medium: LNG (Liquefied Natural Gas)
Design Temperature: Inner Shell: -196℃; Outer Shell: -20-50℃
Design Pressure: 0.84 MPa Outer Shell: -0.1 MPa
Maximum Working Pressure: 0.8 MPa Outer Shell: -0.1 MPa
Volume: 60 m³ Effective Volume: 54 m³
Material: Inner Shell: S30408; Outer Shell: Q345R
Specs: Inner Shell: ?2500×11310×10/10; Outer Shell: ?3000×12110×10/12
Total Length: 24,260 kg | Sandwich Layer Spacing: 250mm | Inner Tank Inner Tube Material: S30408
Insulating Sandwich Material: TCHP-50 Pearl Sand, Filling Volume: >52.2 m³
Inner cylinder pressure test: Medium: Nitrogen; Test pressure: 0.96 Mpa
Valves; Low-temperature stainless steel stop valves
Sealing Vacuum Degree: ≤5 Pa
Static evaporation rate ≤ 0.2%/d
Vacuum insulated sandwich leakage rate ≤ 2×10^-6 Pa.m^3/s
Manufacturing Acceptance Standards; GB150-2011, "Container Regulations", GB/T18442-2011
Tank pipeline valve instrument list (domestic high-quality products):
Serial Number
Product Name
Specs
Quantity
Manufacturer
1
Low-temperature long-handled ball valve
DN50
6 sets
Furui Special Equipment Co., Ltd.
2
Low-temperature long-handled ball valve
DN10
1 set
Furu Special Equipment Co., Ltd.
3
Three-way ball valve
DN25
1 set
Furui Special Equipment Co., Ltd.
4
Safety valve
DN25
2 sets
Furui Special Equipment Co., Ltd.
5
Detonation Sheet
DN25
2 pieces
Shanghai Huali
6
Level Differential Pressure Gauge
1 set
Sichuan Xinlan Shi or Lan Shi
7
Vacuum Valve Assembly
DN50
1 set
Sichuan Xinlan Stone or Lanshi
8
Oxygen Pressure Gauge
0-1.0MPa
1 piece
Chengdu Tianwei Instrument Factory
