Heze Boiler Factory Co., Ltd. was established in1984Year, located in the Jiaozhou Road, Development Zone, Heze City2218Number, occupies10Over 10,000 square meters, main workshop area30000㎡. Current staff800Multiple personnel, including engineering technicians110Additional personnel, fixed assets2.5Billions.
The company possessesBGrade A boiler manufacturing qualificationA2Grade pressure vessel design and manufacturing qualifications2Grade boiler installation andGB、GCClass A pressure pipeline installation qualification, mechanical and electrical equipment installation qualification, etc. The company values scientific research and innovation, being recognized as a national high-tech enterprise, a famous trademark enterprise in Shandong Province, a provincial energy-saving and environmental protection demonstration enterprise, and a member unit of the China Chemical Equipment Association.

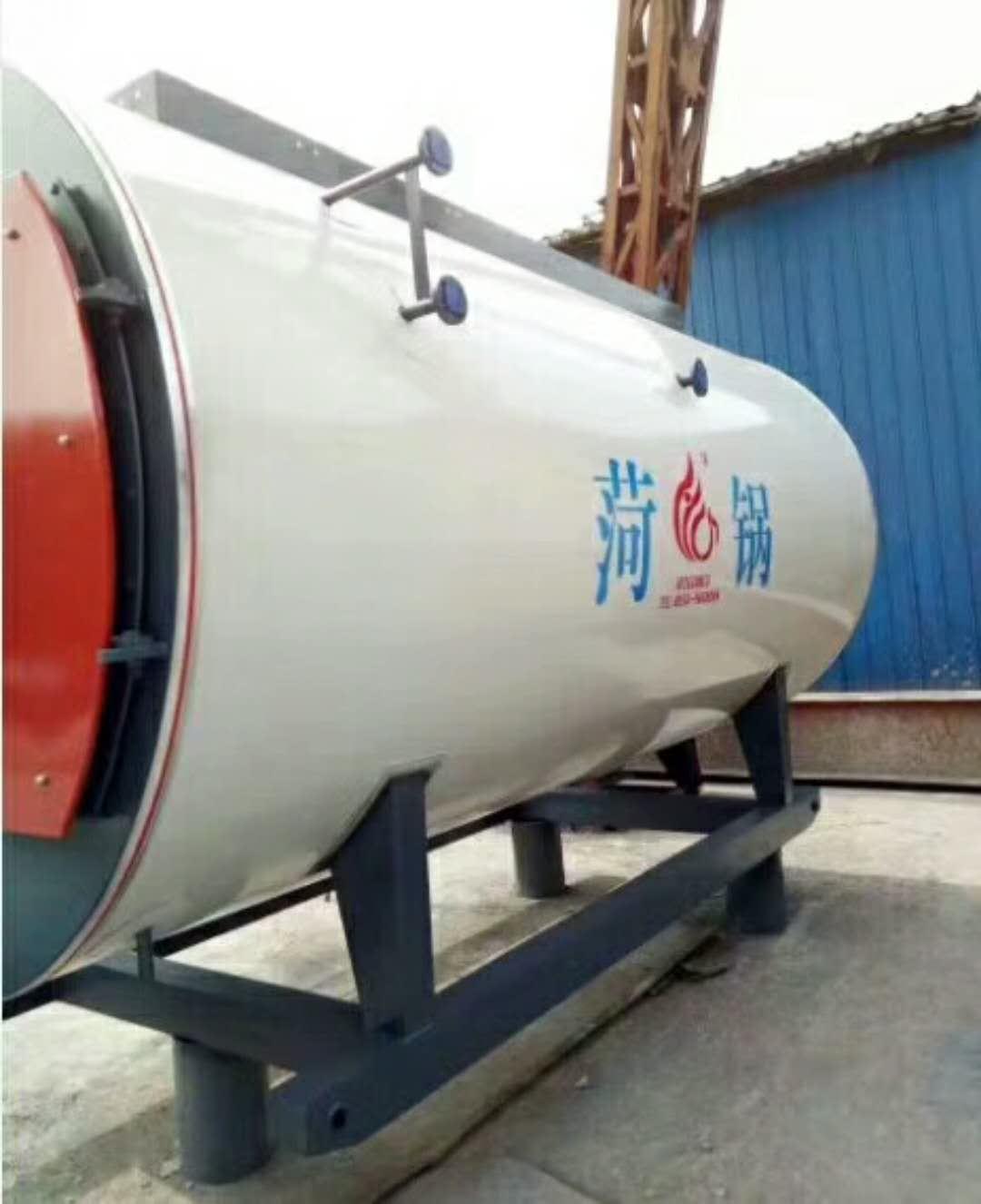

The company is highly focused on the specialized equipment industry of green energy, and is a professional manufacturer of boiler and pressure vessel special equipment. Leading products include: fuel oil(Gas)Boilers, biomass boilers, waste heat boilers, coal-fired boilers, organic heat carrier boilers, and other boiler products. LNGTanks, Oxygen/Nitrogen/Argon Storage TanksCO2Storage tanks and vacuum-insulated cryogenic pressure vessels; LPG storage tanks, liquid ammonia storage tanks, denitration and auxiliary equipment, heat exchangers, complete chemical equipment sets, stainless steel pressure vessels, refrigeration auxiliary equipment, etc.
Our company operates with stringent management and efficiency.ISO9001Quality Management SystemISO14001Environmental Management SystemOHSAS18001Occupational Health and Safety Management System Certification. The company holds independent import and export rights, with products distributed to over twenty provinces, municipalities, and autonomous regions, and exported to countries and regions in Southeast Asia, Central Asia, Africa, Latin America, and more, receiving high praise from customers.
Company operates“Ascend to become a top-tier special equipment supplier in China, and redefine "Made in China."”In pursuit of our vision for growth, the company adheres to“Achieving employees' dreams, creating customer value, and striving for our nation's prosperity.”Our corporate mission is dedicated to the development of green special equipment, offering outstanding products and services to society.
Low-temperature storage tanks are primarily used in the industrial gas sector, with a broad industry application. Industries such as steel mills, chemical, oil, food, and aerospace all require gases. Industrial gases like oxygen, nitrogen, and argon, which are in high demand, are separated from air using air separation equipment. The air is compressed and liquefied, then separated based on the different boiling points of oxygen, nitrogen, and argon, and stored in low-temperature storage tanks.
The company boasts two sandblasting rooms, with all tanks being treated using the pneumatic steel shot sandblasting process, ensuring both exterior quality and paint quality. (After the overall sandblasting, the paint's adhesion is enhanced, significantly extending its lifespan.)
Each unit undergoes hydrostatic testing to ensure equipment strength and safety; each unit is tested for airtightness to guarantee sealing performance. After hydrostatic testing, the internal air is blown clean; and each pipe opening is sealed with plastic plates to prevent secondary contamination from the outside.
Huzhou Boiler Factory Co., Ltd.'s Pressure Vessel Division primarily produces 5-200 cubic meter liquefied gas storage tanks, liquid ammonia tanks, etc. Our series of liquefied petroleum gas storage tanks are designed, manufactured, and inspected in accordance with the GB150-2011 standard, using Q345R steel plates specific for pressure vessels. The entire tank is rolled using CNC coiling equipment and焊接 with automatic gas shielded welding technology, ensuring sturdy and aesthetically pleasing welds. Post-welding, the tanks undergo heat treatment in an overall annealing furnace to better eliminate internal stresses, enhance material toughness and hardness, and provide superior results compared to resistance wire heat treatment. The liquefied gas storage tanks undergo 100% radiographic testing to ensure that the steel plates and welds meet technical requirements. High-pressure water jet small steel shot blasting is used for rust removal, offering much better results than manual or abrasive wheel polishing. Then, coated with four layers of paint—two rustproof and two topcoats—the tanks ensure years of use without the need for repainting. Each tank is inspected and certified by the Quality and Technical Supervision Bureau before shipment, ensuring nationwide validity.
