Main equipment for LNG vehicle refueling stations

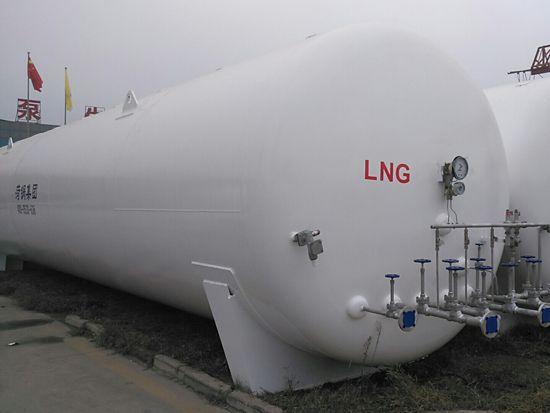

LNG Storage Tanks
Internal灌装Design Pressure
External irrigation operating temperature
Ambient Temperature
External irrigation design pressure
-0.1MPa
Effective Volume
Internal灌 pressure
0.45～0.8MPa
Filling rate
90%
External irrigation working pressure
-0.1MPa
Evaporation rate
Internal灌 design temperature
-196℃
Injected Material
External irrigation design temperature
-19～50℃
External灌Material
Internal灌 temperature
-146℃
2. Low-temperature pump
Operating Temperature
-146℃
Design Head
220m
Design Temperature
-196℃
Maximum Lift
255m
Design Flow
L/min
Required Net Positive Suction Head (NPSH)
0.7～3.0m
2. Car Unloading Turbocharger, Storage Tank Turbocharger
Single-unit processing capacity
M3/h
Highest working pressure
0.8MPa
Imported Temperature
-162℃
Design Pressure
1.6MPa
Export Temperature
-146℃
Design Temperature
-196℃
3. Gas Generator
Minimum Nozzle Pressure
0.41 MPa
Operating Temperature
-146℃
Traffic
0.15 cu. m/min
Measurement Accuracy
+0.5～-0.5%
Hose configuration
Single tube
