Fully Automatic High-Efficiency Energy-Saving Gas Steam Boiler

Section 1: Working Principle of Boilers:

    WNThe S Series fuel (gas) steam boiler is a quick-assembly internal combustion boiler, equipped with a high-performance fully automatic burner as the main combustion unit. It generates high-temperature flames through an automatic ignition function, which then exit the boiler through the upper smoke channel and are discharged into the atmosphere through the chimney. This model boasts high heat exchange efficiency, a simple structure, and a long service life.

Section 2: Features of the Boiler Body:

Manufactured with high-quality boiler steel plate, in compliance with the national JB/T10393 standard.

2. Utilizes a through-pipe flow structure for high heat exchange efficiency and long service life.

3. 100% X-ray inspection for boiler welds with accompanying certificate.

4. Utilizes high-quality, efficient thermal insulation materials with minimal heat loss.

Section 3: Features of the Boiler Electric Control System:

Pressure Limit Automatic Control Device

2. Automatic Safety Valve Discharge Unit

3. High or low water level, trigger an alarm and immediately stop heating.

4. Overcurrent shutdown and alarm

Gas boiler working principle:

Water inside the pot (pot shell) is continuously heated by the energy released from the combustion of the gas fuel in the furnace. As the temperature rises, it produces pressurized steam. Since the boiling point of water increases with pressure, the pot is sealed, and the expansion of the steam is restricted, creating pressure and forming thermal power (strictly speaking, the steam in the boiler is formed by water heated to saturation at a constant pressure in the pot shell and then vaporized). As a source of energy, it is widely used.

Product Introduction:

WNS fuel (gas) steam and hot water condensing boilers feature external integrated finned tube economizers, separate condensers, compact structure, and easy maintenance, with highly significant energy-saving effects. The thermal efficiency exceeds 100% based on the lower heating value of the fuel. To meet user requirements, a programmable logic controller (PLC) combined with a touch screen can be installed, along with buttons, to achieve a dual-path intelligent control system for manual and automatic operation. Interfaces can be reserved for remote control capabilities.

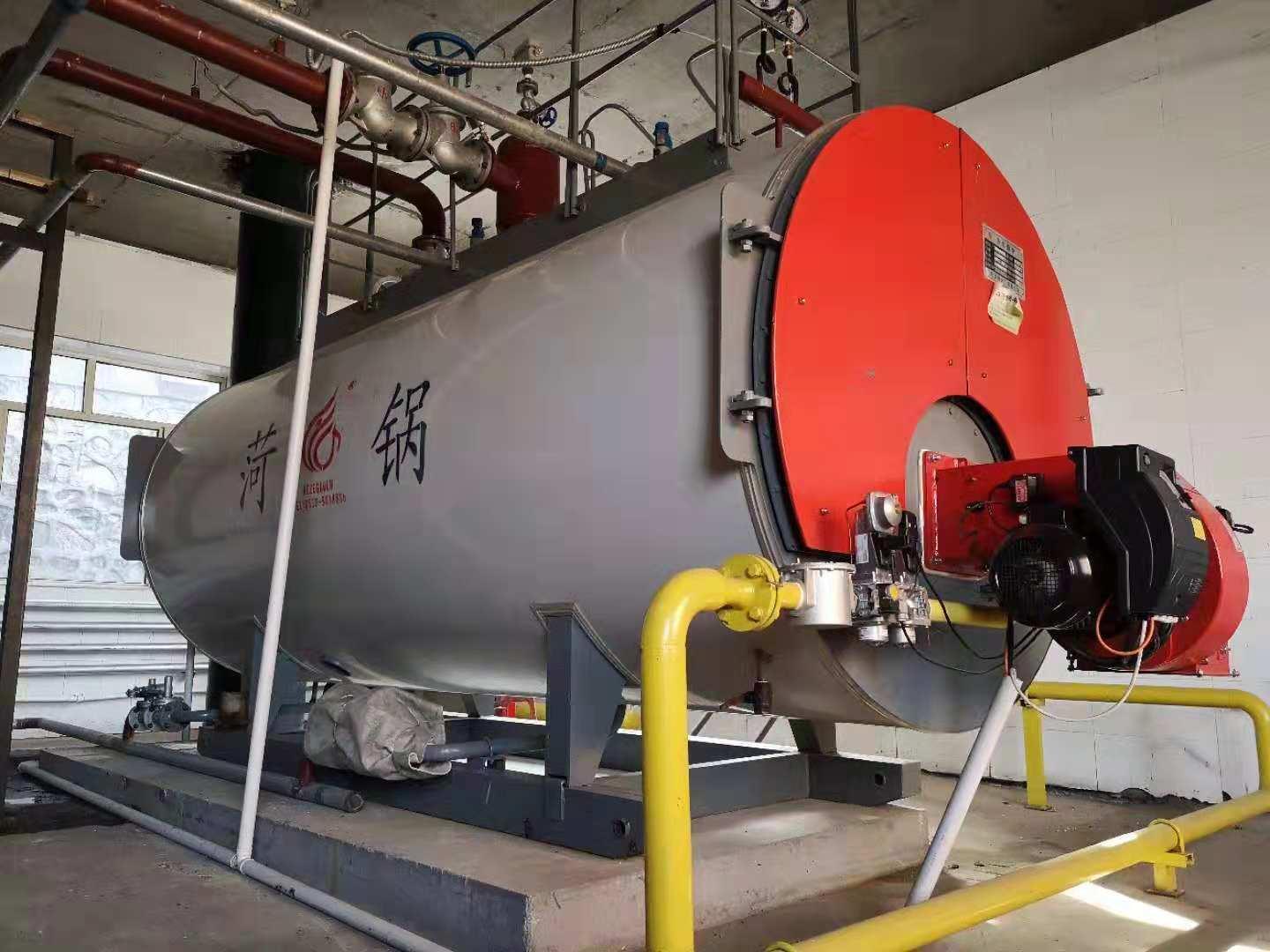

The WNS series fully automatic fuel (gas) steam boilers (novel utility patent) feature a horizontal three-pass wet-back structure, improving the boiler's operating environment, enhancing efficiency, and extending service life. All flue gas channels are submerged in water, equipped with a surplus hot water tank and a comprehensive insulation design. The smoke box is sealed with a labyrinth structure, preventing any smoke leakage. The boiler's thermal efficiency exceeds 85%, utilizing a combination of corrugated and conical furnace tubes with excellent expansion properties, ensuring the tube size matches the flame. The flue gas flow area decreases progressively, allowing for uniform flow, ensuring sufficient heat exchange time for high-temperature flue gas within the boiler for better heat transfer. A high-performance burner that perfectly matches the boiler is used for comprehensive automatic regulation, ensuring complete combustion, fuel savings, and reduced pollution. Ultra-fine glass wool with high insulation properties is used to minimize heat loss. An intelligent energy-saving control system is employed to control the boiler and steam (water) supply systems, adjusting fuel supply based on different loads for greater energy efficiency. The installation method is a complete quick-installation boiler, with minimal vibration, no special foundation requirements, and no need for anchor bolts, making installation simple and easy. The movable furnace head structure can accommodate various burners, allowing for quick and convenient replacement of the furnace head and maintenance of the boiler body. The front and rear smoke boxes are designed with a removable structure, enabling easy inspection, maintenance, and care of the boiler interior. The product's innovative design, reasonable structure, and good process performance contribute to its exceptional quality.

Product Features:

1. The design, manufacturing, and supervision inspection of the boiler strictly adhere to the "Regulations for Safety Supervision of Steam Boilers," JB/T 10094-2002 "General Technical Conditions for Industrial Boilers," and JB/T 1619-2002 "Technical Conditions for the Manufacturing of Shell Boilers," ensuring the long-term safe and stable operation of the boiler.

2. The body features a shell-type full-wet back, countercurrent three-pass flue gas tube structure. The flame burns micro-positive pressure within the large combustion chamber, fully extending, with low combustion heat load and minimal NOx emissions.

3. Wave-shaped furnace tube and threaded chimney structure, which enhances strength while meeting the expansion requirements of each part.

4. All primary weld seams are joined using butt connections and undergo X-ray and ultrasonic non-destructive testing to ensure the welding quality meets national standards.

5. The boiler has a large water volume and gas space, with strong load adaptation capability. The design of the internal equipment is reasonable, ensuring the steam water content is less than 4%, meeting the higher quality requirements of steam from the user.

6. Utilizes advanced thermal insulation materials, featuring lightweight, minimal heat loss, and excellent thermal retention properties.

7. The water level alarm features a stainless steel electrode rod and Teflon as the insulating material. It is inserted from above, minimizing dirt adherence, ensuring reliable performance, and boasting a long service life.

8. The front and rear cigarette boxes are hinged for easy opening, facilitating quick maintenance and repair.

9. Oxygen Content Regulation (Optional): This system successfully monitors the oxygen content in flue gas and transmits the data in real-time to the control system. Through intelligent analysis by the computer, it automatically adjusts the ratio of the combustion equipment, keeping it in perfect working condition, significantly improving combustion efficiency, and thereby greatly reducing fuel consumption.

System Protection:

Boilers come with multiple safety features: electrical leakage protection, which automatically cuts off power in case of leakage; overheat protection, which stops the burner and sounds an alarm when the boiler water temperature exceeds the alarm temperature; secondary overheat protection, which automatically cuts off the secondary circuit and stops the boiler when the outer shell temperature goes above 105℃; dry burning protection, which uses a precise water level electrode rod to monitor water levels in real-time and stops the boiler to prevent dry burning in case the water level reaches or falls below the critically low level due to other reasons.

Application Fields:

Ironing, dry cleaning, drying, washing, spinning, flatting machines, irons, and other equipment for配套 use.

2: Provide drinking water, steamed food, rice noodle production, soy milk boiling, tofu machine, rice steamer, sterilization tank, labeling machine, filling machine

Coating equipment, sealing machines, and utensil washing equipment for complementary use.

3: Room heating, central heating, radiant heating, community centralized heating, auxiliary air conditioning (heat pump) heating, combined with solar energy for hot water supply.

Hot water supply for hotels, dormitories, schools, and mixing stations; concrete curing for bridges and railways; sauna and bath services at leisure beauty clubs; wood flooring processing, etc.

4: Automotive and train vehicle cleaning, shoe sole rubber molding, painting industries, etc.
