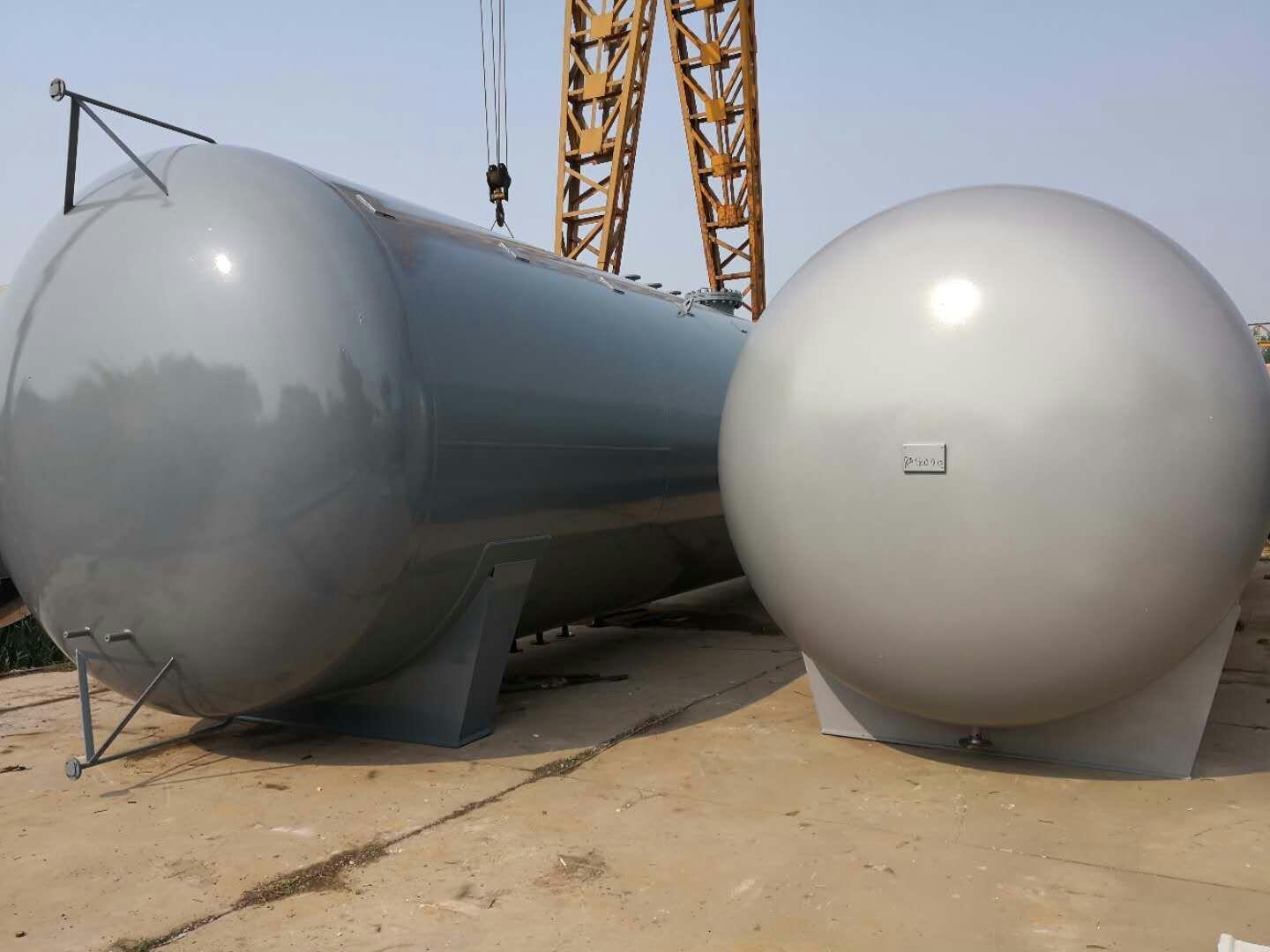

Liquefied Natural Gas (LNG) Storage Tanks, also known as LNG tanks, are specialized low-temperature liquid pressure vessels designed for the storage of liquefied natural gas.

Natural gas, under atmospheric pressure, transforms from a gaseous to a liquid state when cooled to -162°C, known as liquefied natural gas (LNG).

Liquefied Natural Gas (LNG) is colorless, odorless, non-toxic, and non-corrosive. It primarily consists of methane, with a certain amount of ethane, propane, and heavier hydrocarbons.

Hydrocarbons of high quality. Also, trace amounts of nitrogen, oxygen, carbon dioxide, and sulfur compounds.

Liquefied Natural Gas (LNG) storage tanks are classified as Category III pressure vessels. They are manufactured and inspected in accordance with the national standards GB150-98 for steel pressure vessels and GB18442-2001 for low-temperature vessels, under on-site supervision by the National Technical Supervision authority.

The Liquefied Natural Gas (LNG) storage tank is a double-layer vacuum-insulated low-temperature storage tank, consisting of an outer cylinder, inner body, insulating layer, thermal insulation material, root valve, liquid level gauge, vacuum pump valve, and in/out liquid pipes.

The outer cylinder is made of 235B or 345R steel, while the inner cylinder is made of Austenitic stainless steel.。

Product Specifications: 5-100 cubic units
