Materials used for liquefied gas storage tanks:Q345RThis is a special steel plate for pressure vessels, and this equipment has been heat-treated with high-temperature annealing.,Heze Boiler Factory Co., Ltd. is one of the top competitive private enterprises in China's pressure vessel manufacturing industry, especially renowned for its standalone low-temperature storage tanks.|Low-temperature thermal insulation storage tank(LiquidCO2,Liquid Nitrogen,Liquid Oxygen, Liquid Argon)Frame-type low-temperature insulation storage tank|Tanks, frame-type container,And other chemical pressure vessels(Liquid ammonia tanks, liquid chlorine, ethylene oxide storage tanks,Ethylene, Propane Storage Tank,Propylene)Aspects, After years of accumulation, we have developed a series of products, user solutions, and equipment installation and debugging technologies, offering comprehensive solutions including consulting, design, production, integration, and installation and debugging services.

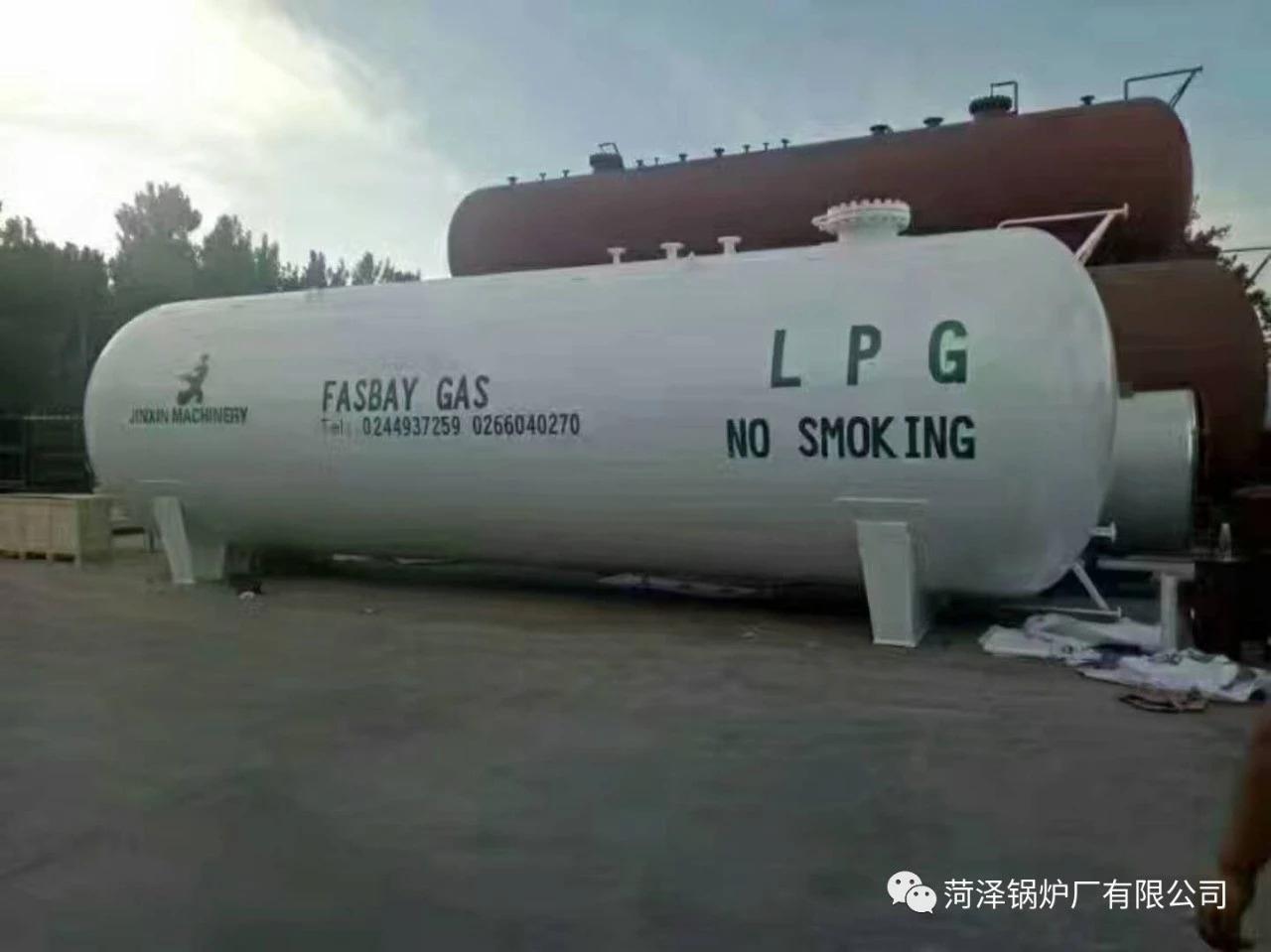

  Liquefied Petroleum Gas (LPG) storage tanks are pressure vessels designed for storing LPG. They are special equipment that can only be produced by enterprises approved by the National Quality Supervision and Inspection总局. Such production requires a Class 3 pressure vessel design and manufacturing qualification issued by the state. Shandong Heze Boiler Factory Co., Ltd. is a state-approved design and manufacturing enterprise for Class 1, 2, and 3 pressure vessels, capable of producing pressure vessels like LPG storage tanks of less than 200 cubic meters. It is one of the few companies that can produce such equipment.200Cubic Corporation.

Advantages of our LPG storage tanks:

  One, our company conducts an annual quality assessment of all suppliers to ensure supplier quality.

  Two, all major pressure materials are custom steel plates from Jining Steel and Ansteel, with thickness deviations all exceeding national standards.***Standard Specifications50m3For example, in the case of liquefied gas storage tanks, to ensure the design service life of the tank, the nominal thickness of the standard hemispherical head is14mm, but our company uses customized steel plates for the caps***薄厚度14.7mmSheet steel. (Other companies have low production capacity and cannot customize sheet steel; either directly purchase14mmSteel plate, may cause premature scrapping during future inspections due to insufficient thickness of the end cap curvature; either adopt16mmSheet metal manufacturing can lead to resource wastage, imposing additional costs on the customer.

  Section 3: Prior to the manufacturing process in the production workshop, the custom steel plates procured need100%Ultrasonic re-inspection to further ensure the quality of the steel plate, guaranteeing the production of superior products.

  Four: The product is produced on an assembly line with standardized operations. This has increased efficiency, ensured the smooth operation of the quality system, and guaranteed the quality of the product.

  Five, the main body of the product is焊接 using both internal and external automatic welding, ensuring welding shape and internal quality.

  All pressure parts are welded using full penetration structures to ensure welding strength.

  All liquefied petroleum gas tanks undergo whole-tank stress-relieving heat treatment. The company has constructed two gas-fired whole-tank heat treatment furnaces, with a single unit processing capacity of300Rectangular storage tankDN≤4000mm，LTotal ≤25000mmThe product's lifespan and safety quality play a significant role. It's also a major selling point for our company's exports.

Inspection (at various inspection points)

  8. Throughout the product manufacturing process, from raw materials to the factory and to product inspection upon shipment, establish various inspection checkpoints to effectively control product quality.

 All main weld seams100% XRay inspection, fittings, flangesC、DWelding-like100%Surface flaw detection ensures welding quality. The company has a non-destructive testing room and employs certified inspectors at various levels.

 Ten, individual hydrostatic testing to ensure equipment strength safety; individual air tightness testing to guarantee equipment sealing performance. After hydrostatic testing, internal air blowing and cleaning.

  Eleven, the company has2A cabinet type shot blasting room, all tanks are treated with pneumatic steel shot blasting for rust removal, ensuring both exterior quality and paint quality. (After overall shot blasting and rust removal, the lifespan of the paint can be significantly extended.) Apply two coats of anti-rust primer, followed by two coats of topcoat; four layers of paint guarantee the tank will not peel for five to ten years, and with good maintenance, it can last up to twenty years without repainting.

  Twelve, High yield, customers can see the real products at the company. Regular products are all available in stock, allowing customers to shorten the construction cycle and make money sooner.

  Chapter 13: Witnessing the Project4000Households above, distributed worldwide, for your peace of mind shopping.

Our company specializes in tank-type pressure vessels, which are among our key products. These include LPG storage tanks, liquid ammonia tanks, liquid chlorine tanks, propane tanks, C5 storage tanks, and low-temperature storage tanks for liquid oxygen and nitrogen. Particularly, our LPG storage tanks have reached mass production levels with a continuous production line, and various models are available in stock.

Table of Performance Parameters for Class III Storage Tanks

Tank type Product model Effective volume m³ Working pressure MPa External dimensions mm

LPG Storage Tank

[On the ground]

WG 1.77-1400-551.77DN1400×2750

WG 1.77-1400-10101.77DN1400×5980

WG 1.77-1600-10101.77DN1600×4400

WG 1.77-2000-20201.77DN2000×5650

WG 1.77-2200-25251.77DN2200×5800

WG 1.77-2200-30301.77DN2200×7100

WG 1.77-2600-40401.77DN2600×6600

WG 1.77-2600-50(B)501.77DN2600×8500

WG 1.77-2600-60601.77DN2600×10360

WG 1.77-3000-1001001.77DN3000×13200

WG 1.77-3600-1201201.77DN3600×10500

WG 1.77-3600-1501501.77DN3600×13500

WG 1.77-3800-2002001.77DN3800×16300

LPG Storage Tanks

[Underground]

WDG 1.77-1400-551.77DN1400×2750

WDG 1.77-1600-10101.77DN1600×4400

WDG 1.77-2200-25251.77DN2200×5770

WDG 1.77-2200-30301.77DN2200×7100

WDG 1.77-2600-50501.77DN2600×8500

WDG 1.77-2800-60601.77DN2800×8740

WDG 1.77-3000-1001001.77DN3000×13200

Supply listed company He Guo brand LPG Storage Tanks, ranging from 5 cubic meters to 200 cubic meters of LPG storage tanks
