60CubeLNGStorage Tank Technical Parameters:

Container Category: IICategory   Structure Type: Horizontal   Insulation Method: Vacuum Powder Insulation (Pearlescent Sand)

Please provide the Chinese content to be translated.    Quality: LNG(Liquefied Natural Gas (LNG)      Maximum Allowable Working Pressure:0.86Mpa

Design Temperature: Inner Shell:-196℃           Outer Shell:-20-50℃

Work Stress:0.8Mpa  Outer Case:-0.1 MPa Design Pressure:0.84Mpa Outer Shell:-0.1 MPa

Available    Accumulation:60m3   Effective Volume:54m3 Material: Inner ShellS30408    Outer Shell:Q345R

Specification: Inner Liner:?2400×12400×7/8 Outer Case:?2900×13140×8/10 Total Length:14929mm
  Total Weight:21760kg      Laminate Spacing:250mm       Inner tube material:S30408       Dimensions?2916×14929mm

Insulation Sandwich Material:TCHP-50Pearlized sand    Fill Volume: >30.8m3

Internal cylinder pressure test: Medium: Nitrogen         Test Pressure:1.06Mpa

Valves; Low-temperature stainless steel stop valves  Final vacuum degree: ≤5Pa    Static evaporation rate ≤0.316%/d

Vacuum Insulated Double Skin Leakage Rate ≤2×10-6 Pa.m3/s Vacuum Insulated Double Skin Leakage Rate ≤6×10-5 Pa.m3/s

Manufacturing Acceptance Standards:

GB/T18442.1~18442.6-2011, TSG21~2016"Regulation for Solid Content"NB/T47042-2014

60m3Horizontal Low-Temperature Liquefied Natural Gas Storage Tank Technical Specifications

（2）Tank Pipeline Valve Instrument List (Domestic High-Quality Products)

Huzhou Boiler FactoryLimited Company

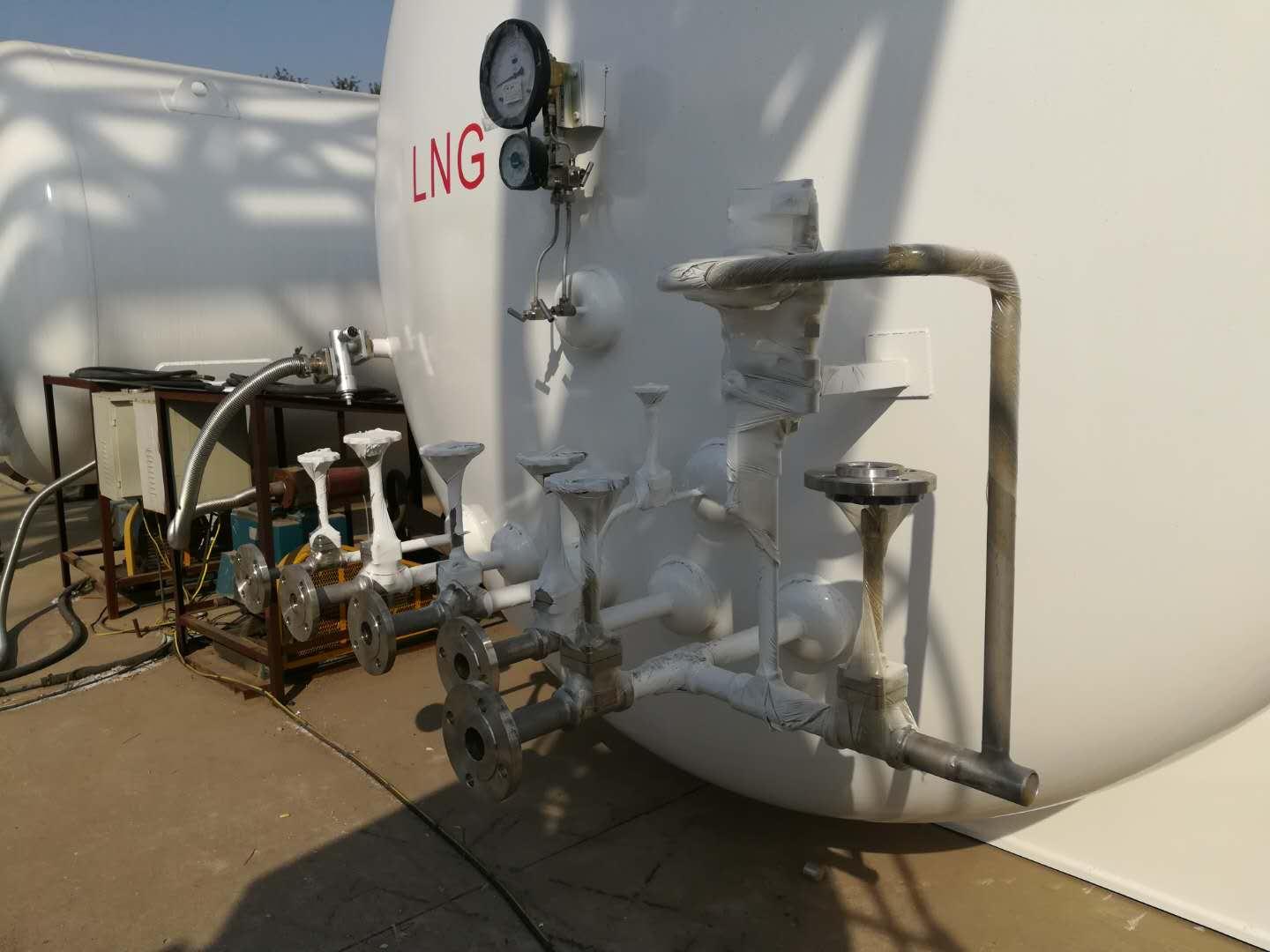

LNG Storage Tank

Huzhou Boiler FactoryOur Company specializes in manufacturing various models ofGas-fired boiler, biomass boilerLNG tanks, LPG tanks, equipped withBGrade A boiler manufacturing qualificationA2Grade pressure vessel design and manufacturing qualifications2Grade boiler installationGB、GCClass A pressure pipeline installation qualification, equipment and machinery installation qualification, etc.Yearly production capacity exceeds 1,000 units, with some products available in stock. Welcome to call for inquiries.

LNG liquefied natural gas storage tanks are specialized products for storing liquefied natural gas, classified as special equipment and type III pressure vessels. They are made of 06Ni9DR material, and undergo non-destructive testing, hydrostatic and pneumatic testing, as well as on-site inspection by the Technical Supervision Bureau, with a pressure vessel inspection certificate issued. The manufacturing process also includes external rust removal and painting. The liquefied gas storage tanks undergo strict quality assessment for the material of the pressure components, appearance dimensions, weld quality, operational quality, installation quality, internal equipment, and safety accessories.

Routine physical and chemical tests of the drum material, such as mechanical properties and chemical composition.

The welding joints, seams, tank end caps, and the mutual geometric positions of all pressure elements are rigorously inspected through X-ray non-destructive testing and magnetic particle inspection. Tests are conducted on the product's sealing, pressure resistance, and all technical indicators that could affect the safe operation of the product.
