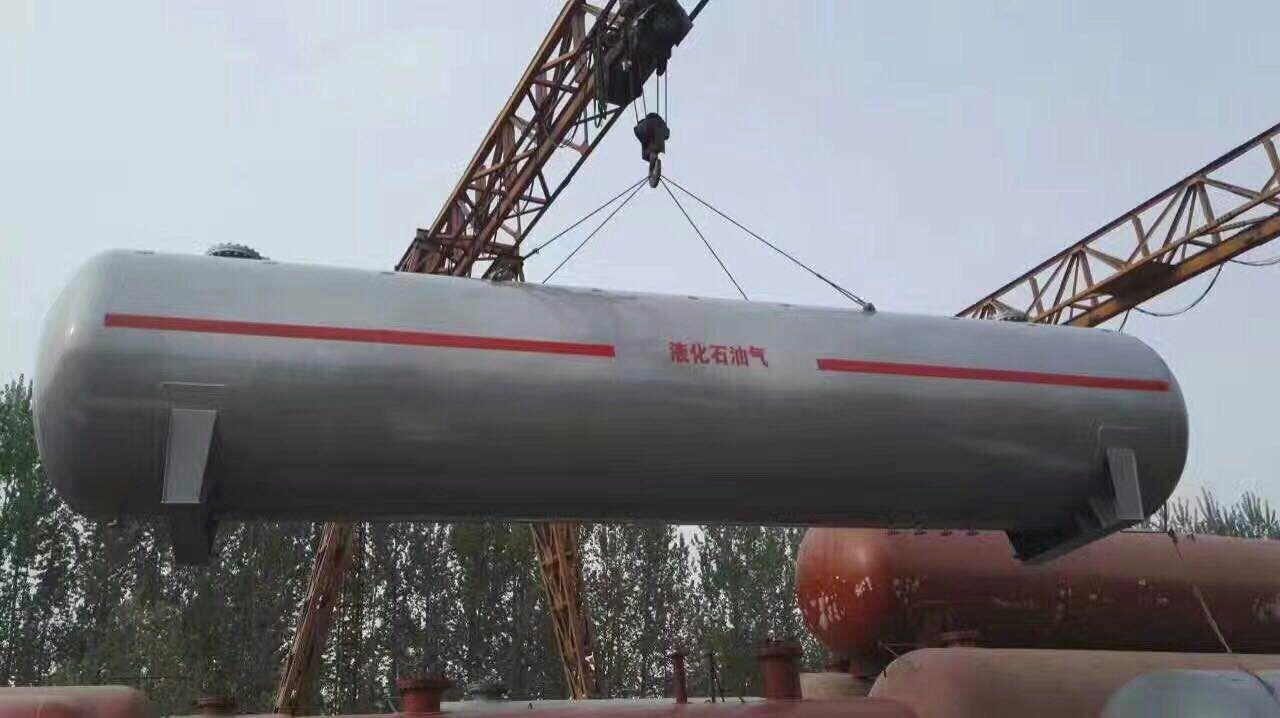

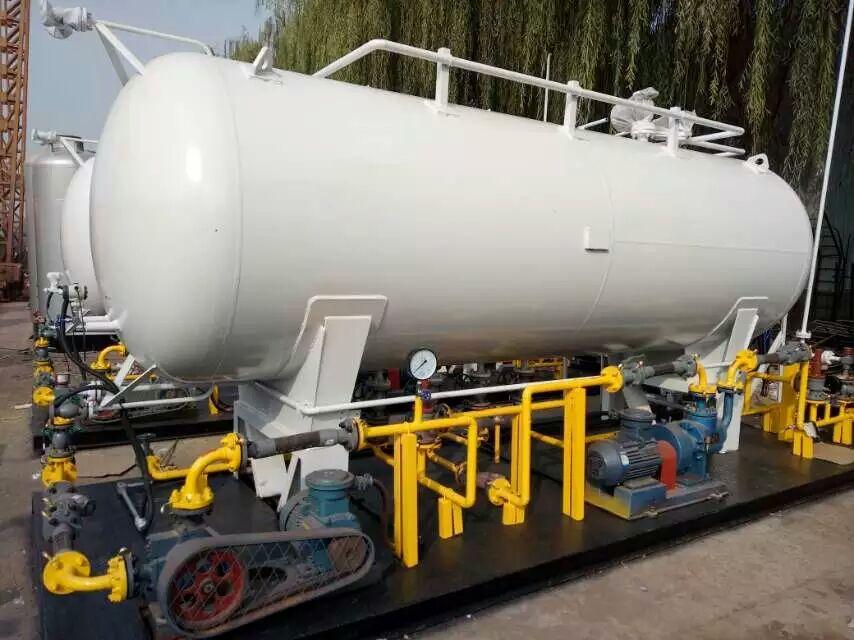

Our company specializes in tank-type pressure vessels, which are one of our key products. We offer a variety of tanks including LPG storage tanks, anhydrous ammonia tanks, liquid chlorine tanks, propane tanks, C5 storage tanks, and low-temperature tanks for liquid oxygen and nitrogen. Particularly, our LPG storage tanks have reached mass production with a continuous production line, and multiple models are available in stock.

III Class Storage Tank Performance Parameters Statistics Sheet

Tank Type Product Model Effective Volume m³ Working Pressure MPa External Dimensions mm

LPG Storage Tank

[On the ground]

WG 1.77-1400-551.77DN1400×2750

WG 1.77-1400-10101.77DN1400×5980

WG 1.77-1600-10101.77DN1600×4400

WG 1.77-2000-20201.77DN2000×5650

WG 1.77-2200-25251.77DN2200×5800

WG 1.77-2200-30301.77DN2200×7100

WG 1.77-2600-40401.77DN2600×6600

WG 1.77-2600-50(B)501.77DN2600×8500

WG 1.77-2600-60601.77DN2600×10360

WG 1.77-3000-1001001.77DN3000×13200

WG 1.77-3600-1201201.77DN3600×10500

WG 1.77-3600-1501501.77DN3600×13500

WG 1.77-3800-2002001.77DN3800×16300

LPG Storage Tank

[Belowground]

WDG 1.77-1400-551.77DN1400×2750

WDG 1.77-1600-10101.77DN1600×4400

WDG 1.77-2200-25251.77DN2200×5770

WDG 1.77-2200-30301.77DN2200×7100

WDG 1.77-2600-50501.77DN2600×8500

WDG 1.77-2800-60601.77DN2800×8740

WDG 1.77-3000-1001001.77DN3000×13200

Supplying listed company He Guo brand LPG tanks, ranging from 5 cubic meters to 200 cubic meters of liquefied petroleum gas tanks

Liquefied Gas Storage TankLeakage can be extremely dangerous.Liquefied Gas Storage Tank1. In any legitimate industrial facility, a comprehensive tank safety operation specification and management system should be established during use. 1) In case of minor leakage from the tank, the transporter should immediately close all pipeline valves of the tank and stop the operation of other surrounding equipment. Rapidly evacuate personnel from the leakage contaminated area to the upwind location (due to the storage of liquefied gas, it is easy to float in the air) and conduct safe isolation. Cut off all ignition sources and, as safely as possible, prevent the spread of the leakage source. 2) In the event of a large-scale leakage, in addition to the basic emergency response measures, the transporter should immediately report to the local government, "119," local environmental protection department, and public security traffic police department. The report should include: the name of the accident unit, time and location of the accident, chemical name and amount of leakage, level of danger, presence or absence of casualties, and the name and phone number of the person reporting.Liquefied Gas Storage TankInspection is a major operation for any liquefied gas station. Given the unique characteristics of simultaneous inspection for opening containers, and the complete halt of the entire station's normal production operations, thorough preparatory work is particularly crucial in the initial phase.
