LiquefiedNatural Gas Storage TankA professional product for storing liquefied natural gas, a special equipment, type III pressure vessel, made of 06Ni9DR material. It undergoes non-destructive testing, hydrostatic and pneumatic testing, on-site inspection by the Technical Supervision Bureau, and is issued with a pressure vessel inspection certificate. The manufacturing process includes external rust removal and painting, etc. The liquefied gas tank undergoes strict quality assessment on the material, dimensions, weld quality, operational quality, installation quality, internal equipment, and safety accessories of the pressure components.

Routine physical and chemical tests for the drum material, such as mechanical properties and chemical composition.

The welding joints, welds, tank end caps, and the mutual geometric positions of all pressure elements are rigorously inspected through X-ray non-destructive testing and magnetic particle inspection. Tests are conducted on the product's sealing, pressure resistance, and all technical indicators that could affect the safe operation of the product.

Common structures of LNG tanks include: vertical LNG tanks, horizontal LNG tanks, vertical mother-child tanks, and atmospheric storage tanks.

Vertical LNG Storage Tank

Volume options include 50, 100, 150, and 200 cubic units.

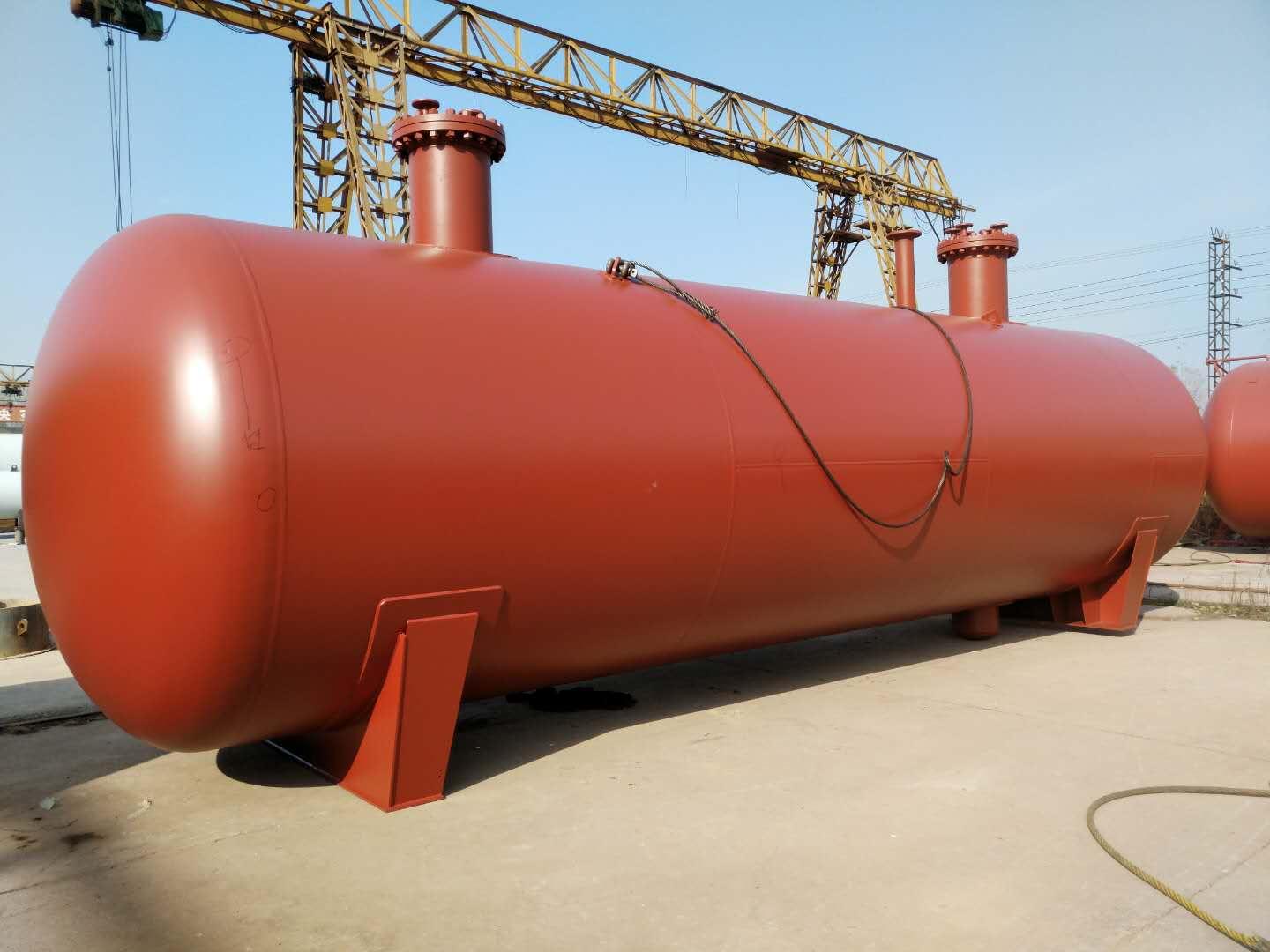

Horizontal LNG Storage Tank

Volume options include 60 cubic and 100 cubic.

Vertical mother and son tanks

Sub-Drum refers to an inner drum composed of multiple sub-drums connected in parallel to meet large capacity storage needs. Multiple sub-drums are assembled side by side within a large outer drum. The number of sub-drums ranges from 3 to 7, generally not exceeding 12. The volume of individual sub-drums should not be too large, typically between 100 to 150 cubic units, with the maximum reaching 250 cubic units. Common sizes include 1000 cubic units, 1750 cubic units, and 2000 cubic units.

Atmospheric Storage Tank:

We offer large and medium-sized atmospheric LNG storage tanks, as well as extra-large atmospheric LNG storage tanks.
