Heze Boiler FactoryLimited Company

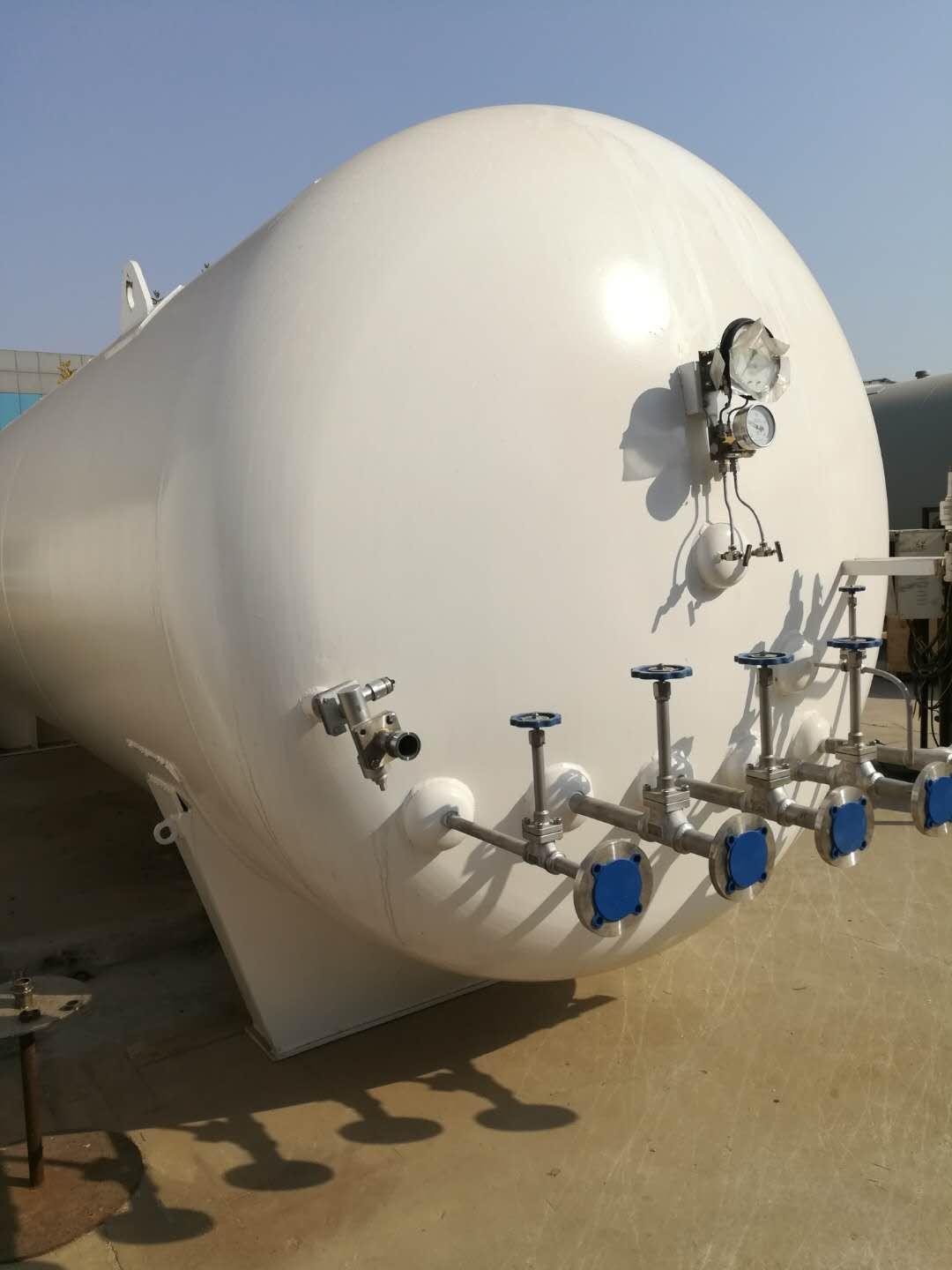

 60CubeLNGTank Technical Specifications:

Container Type: IICategory   Structure Type: Horizontal   Insulation Method: Vacuum Powder Insulation (Pearlescent Sand)

Please provide the Chinese content to be translated.    Quality: LNG(Liquefied Natural Gas (LNG)      Maximum allowable working pressure:0.86Mpa

Design Temperature: Inner Shell:-196℃           Exterior Shell:-20-50℃

Work pressure:0.8Mpa  Exterior Shell:-0.1 MPa Design Pressure:0.84Mpa Outer Shell:-0.1 MPa

Available    Accumulated:60m3   Effective Volume:54m3 Material: Inner Shell:S30408    Outer Shell:Q345R

Specifications: Inner Liner:?2400×12400×7/8 Outer Shell:?2900×13140×8/10 Total Length:14929mm
  Total Weight:21760kg      Laminate Spacing:250mm       Inner tube material:S30408       外形尺寸: Dimension Size?2916×14929mm

Insulation Sandwich Material:TCHP-50Type Pearl Glaze    Fill Volume: >30.8m3

Internal Cylinder Pressure Test: Medium: Nitrogen         Test Pressure:1.06Mpa

Valves; Low-temperature stainless steel stop valves  Final vacuum degree: ≤5Pa    Static Evaporation Rate ≤0.316%/d

Vacuum Insulation Layer Leak Rate ≤2×10-6 Pa.m3/s Vacuum Insulated Sandwich Panel Air Leak Rate ≤6×10-5 Pa.m3/s

Manufacturing Acceptance Criteria:

GB/T18442.1~18442.6-2011, TSG21~2016"Regulations for Solid Content"NB/T47042-2014
