Compact, high-performance, next-generation servo motors with built-in encoders, designed for industrial applications and versatile to meet various demands.

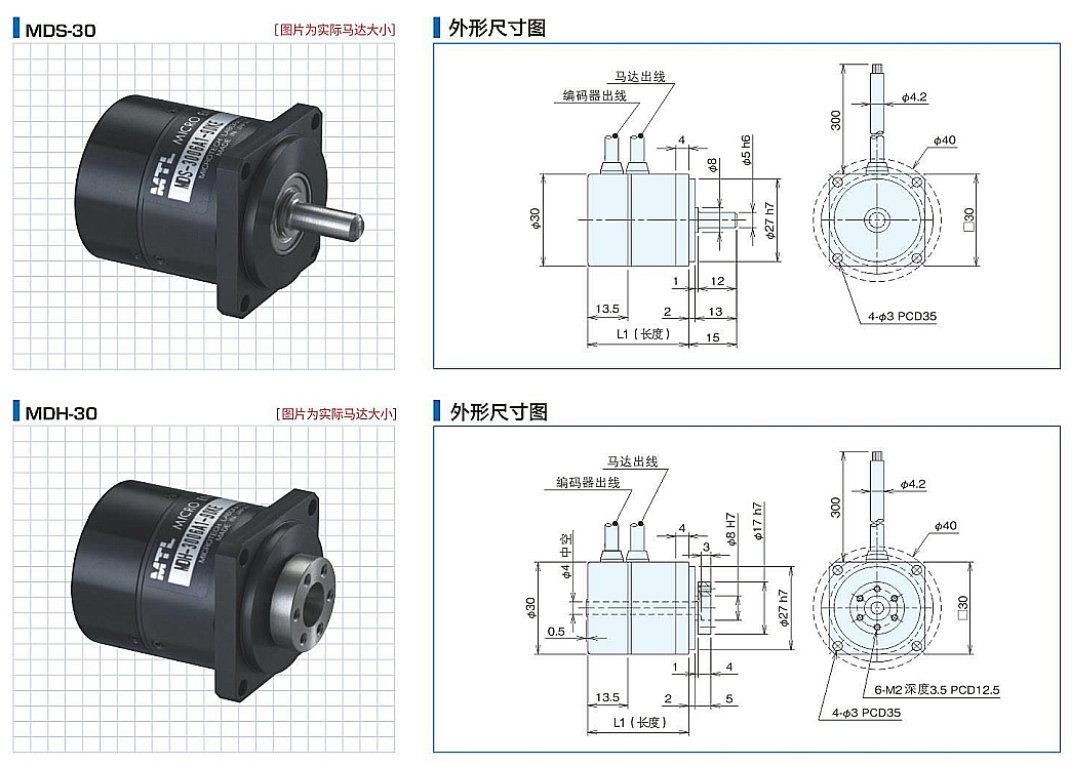

·Diameter: φ30mm Length: 32/38/44mm

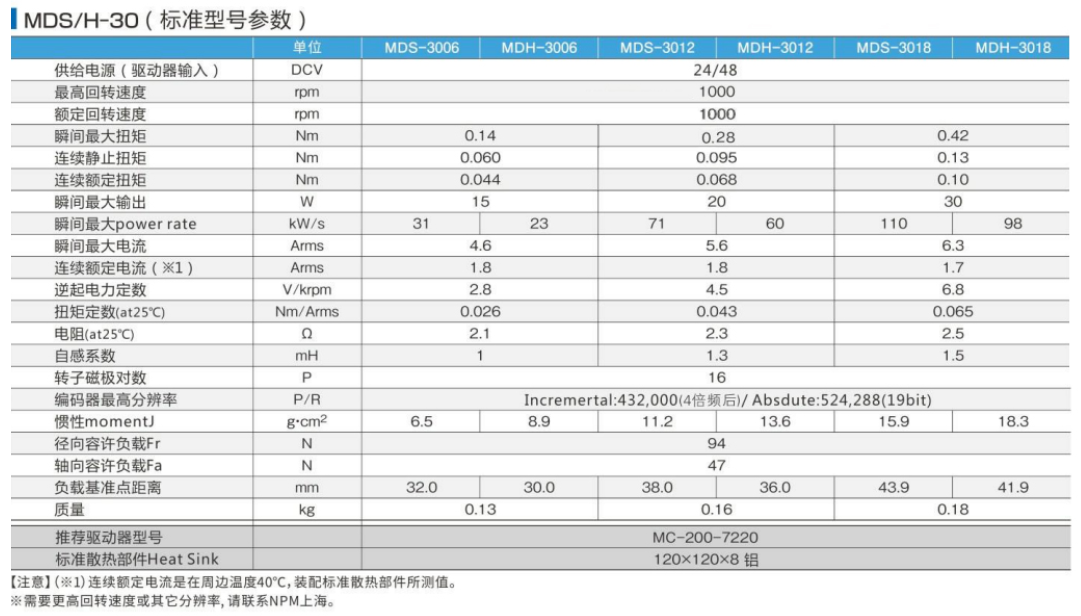

·Maximum Torque: 140/280/420 mN.m
·Hollow Diameter: φ4mm (MDH Type)
·Maximum Speed: 1000 rpm
·Maximum Resolution: 432,000P/R (after 4x frequency multiplication), 19-bit
【For details, please contact: 13424317800
