Overview of Server Room Ventilation Floor

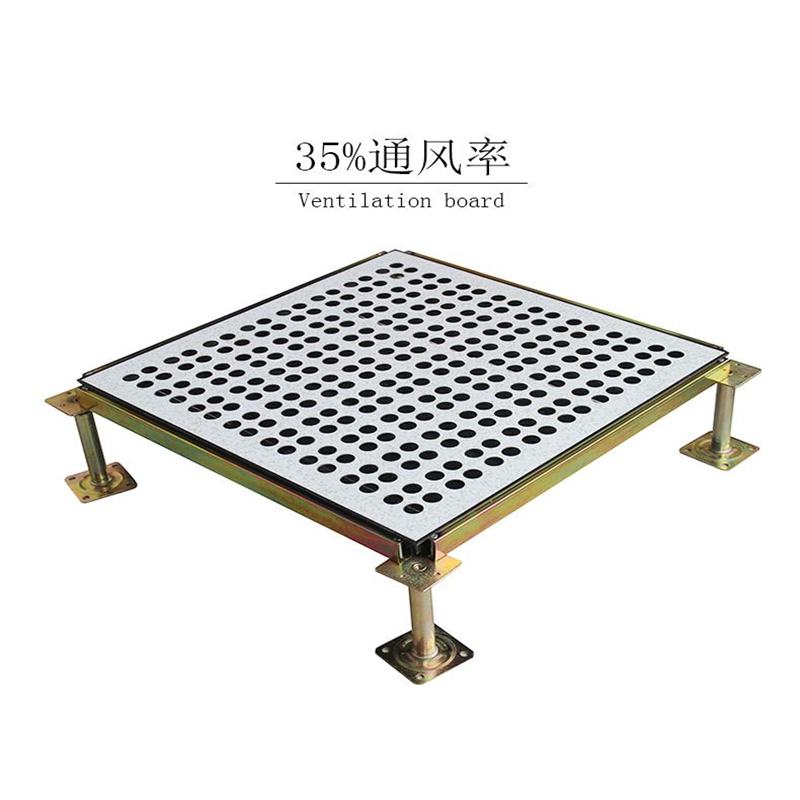

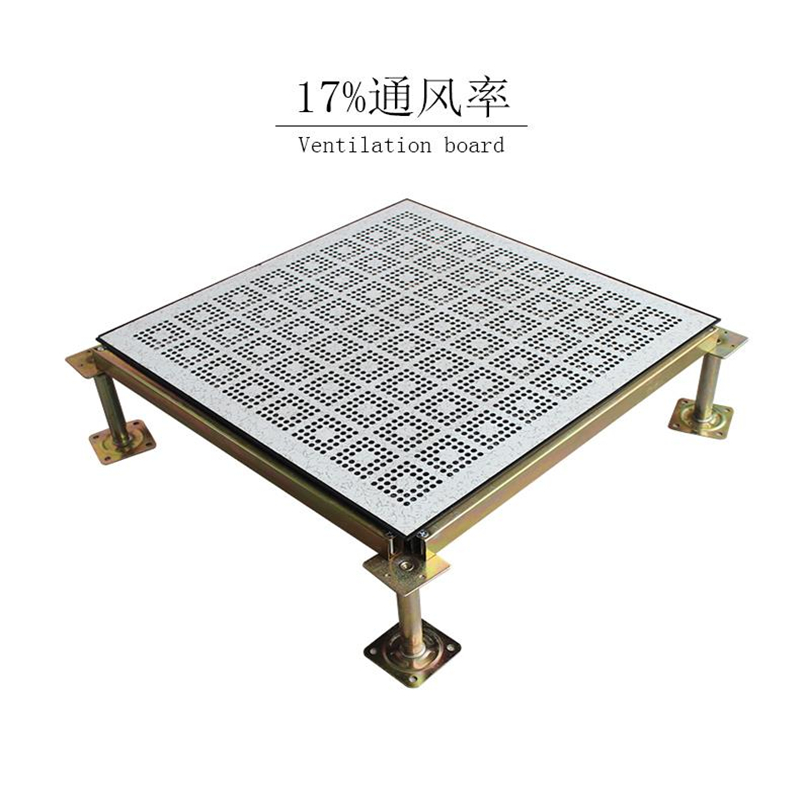

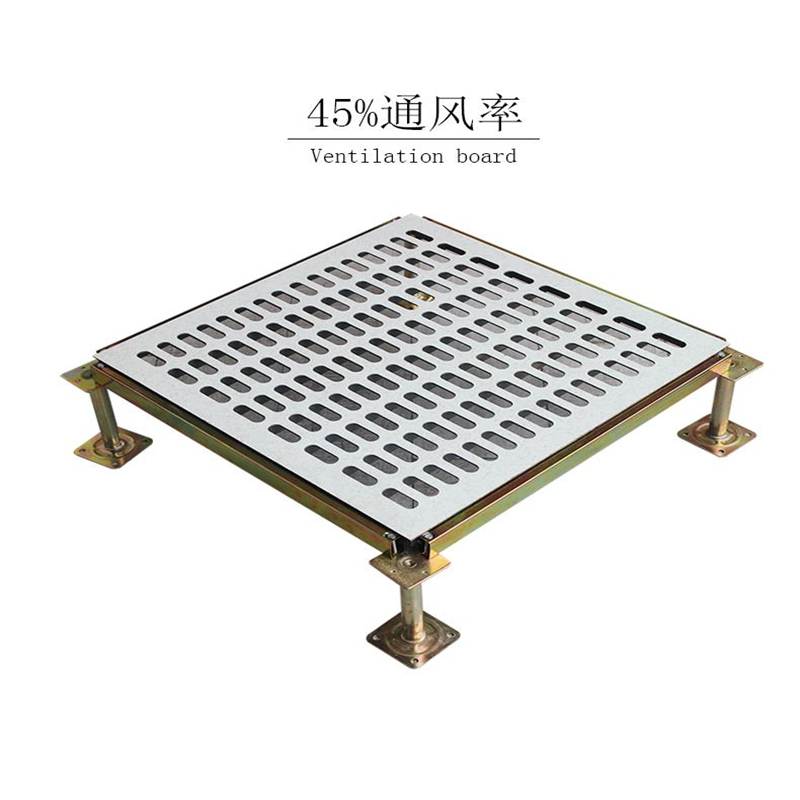

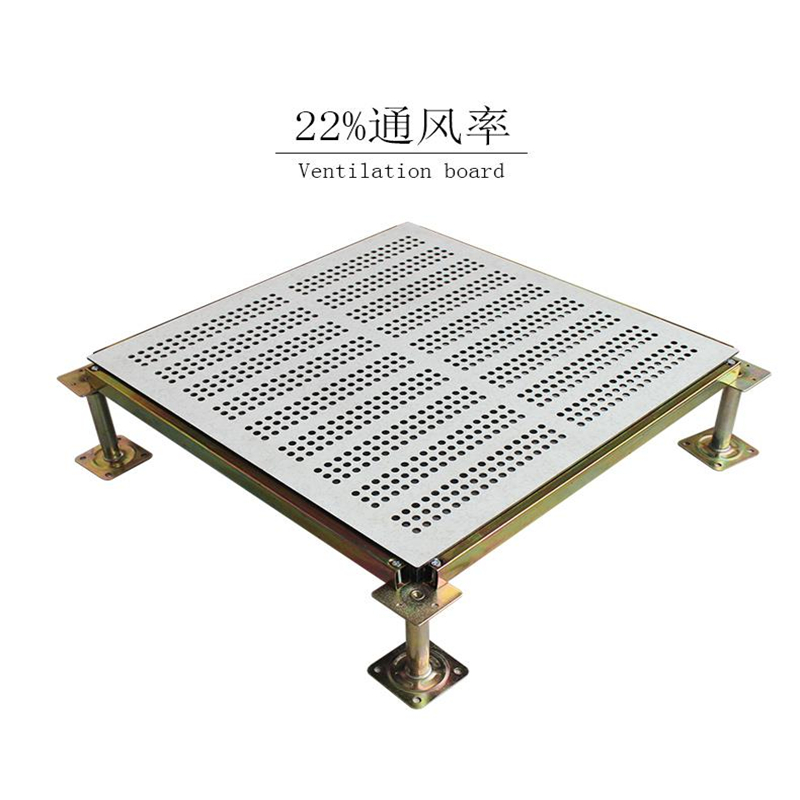

The ventilation floor panel is structurally similar to the anti-static floor panel, with the same top and bottom surfaces, but the interior cavity of the ventilation floor is empty and unfilled with foam concrete. The upper and lower steel plates of the ventilation floor, as well as the upper surface material, are punched with ventilation holes. The ventilation floor is used in conjunction with the anti-static floor, where ventilation is required beneath the floor. The ventilation rate of the ventilation floor ranges from 17% to 55%.

Data Center Ventilation Floor System Assembly

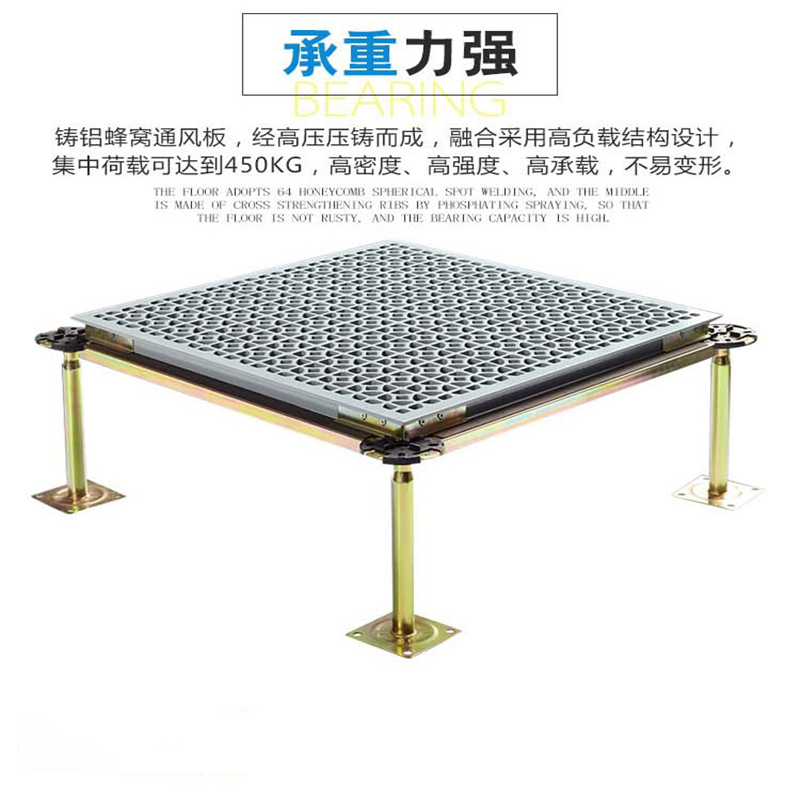

The ventilation floor system consists of panels, beams, and supports. The ventilation panels and adjustable supports are securely fastened to form a stable lower support system using screws, with the ventilation panels embedded in the grid formed by the beams.

Chassis Ventilation Floor Features:

The flooring is constructed with a full steel composite structure, offering high strength and excellent impact resistance.

2: Floors feature ventilation holes, hollow interiors, or reinforced grating.

The floor dimensions have high precision and excellent interchangeability.

The flooring can be cut to any size, with convenient installation accessories.

The floor surface is treated with electrostatic coating, offering excellent corrosion resistance.

6: Fire-resistant, static-dissipative, and dust-proof flooring

7: Edges of the floor are securely fastened, easy to install.

For overweight equipment, simply adding supports beneath the floor can resolve the load-bearing issue.

Floor Ventilation Application Scope:

Ventilation floors are suitable for control rooms in the telecommunications, power electronics, and microelectronics industries, as well as computer rooms, power dispatching centers, and various types of computer rooms.
