Product Description
Heating sources include steam, electric, and electric-steam dual-use options.
◎Operating Temperature: Steam heating 50-140°C, max 150°C; electric heating 50-350°C1.jpg
The temperature is automatically controlled and recorded by a recording instrument.
The interior walls of the box are fully welded, with rounded transitions at all junctions, ensuring no blind spots.
The machine boasts excellent sealing properties, with a unique guide rail sealing device ensuring the integrity of the machine's seal.
Intake air port equipped with high-efficiency air filters; exhaust moisture port fitted with medium-efficiency air filters.

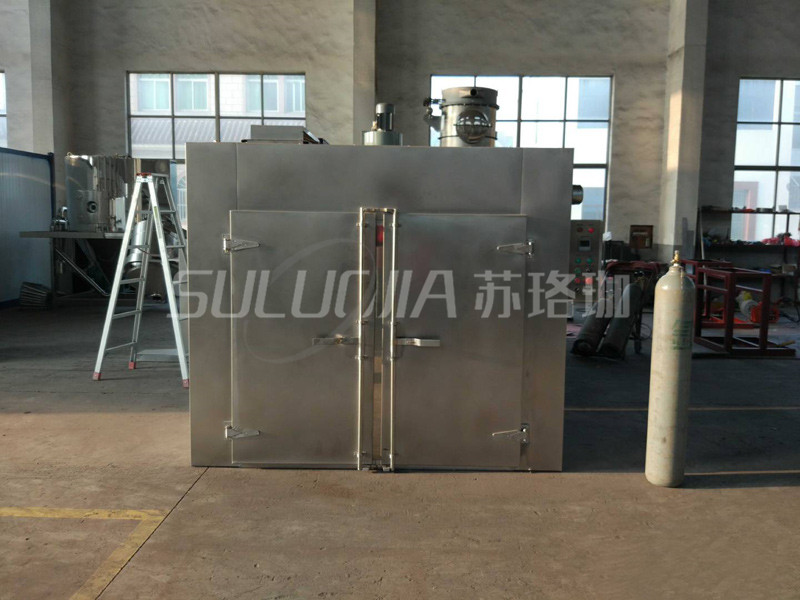

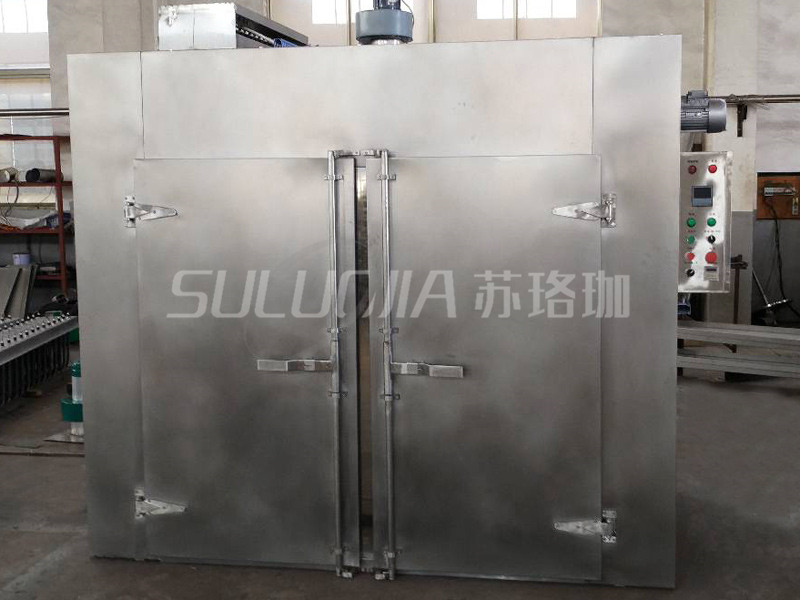

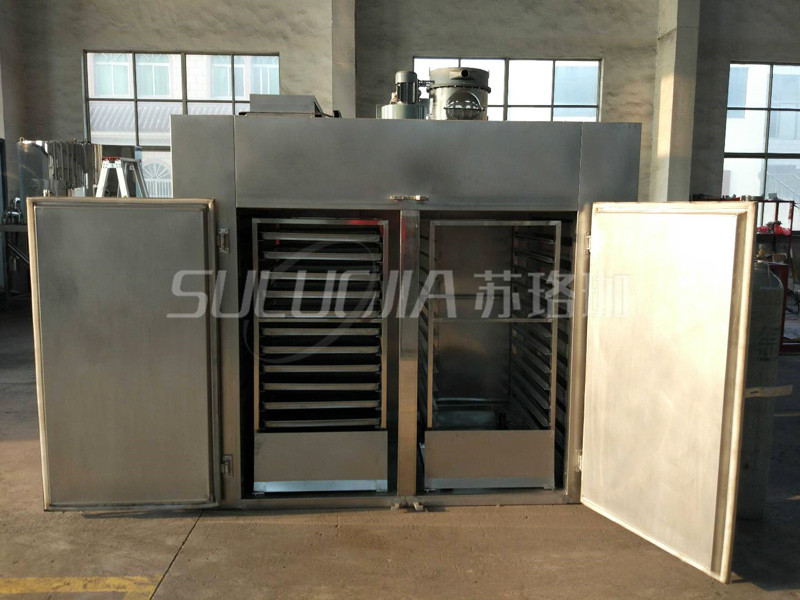

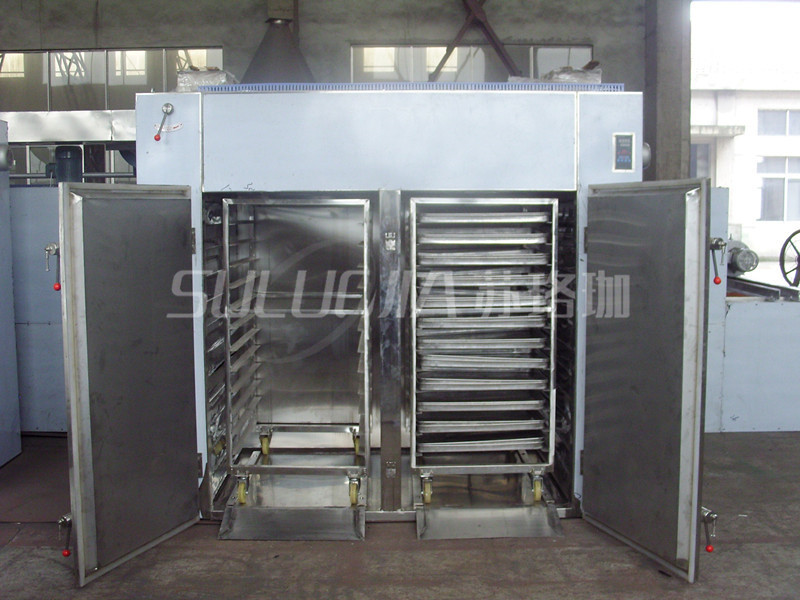

Double-door oven with mechanical interlocking on both doors.
All components inside the oven can be quickly disassembled and reassembled for easy cleaning.
The control system is equipped with a text display and a touchscreen for selection.
The complete machine meets "GMP" requirements.

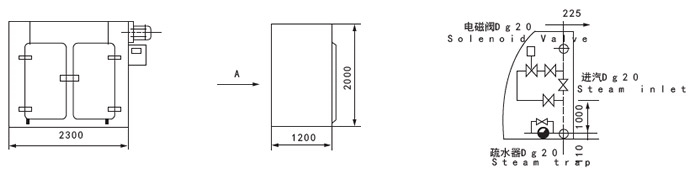

Installation Diagram


Specification parameters







Model and Specifications

Each Drying Quantity (kg)

Fan Power (kw)

Steam Consumption (kg/h)

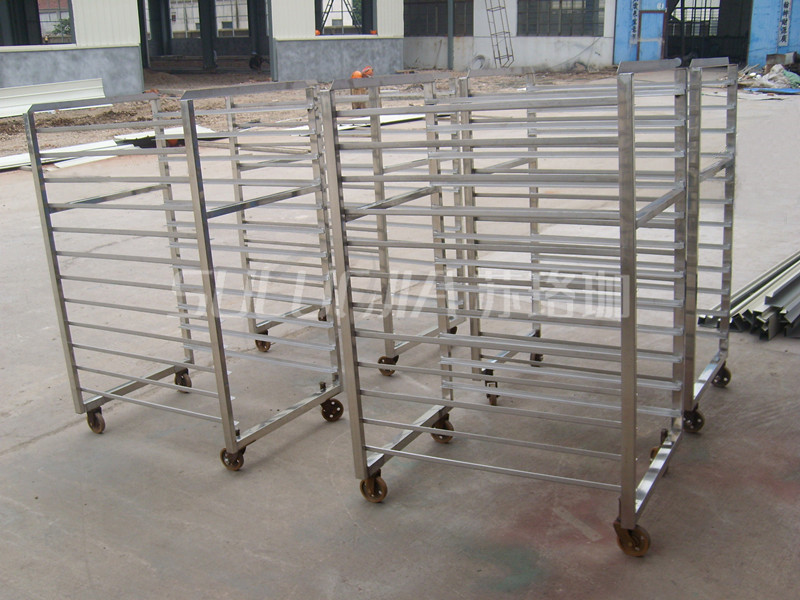

Heating Car (Set)

Baking Sheet (Each)

Width x Depth x Height (mm)

Up and down temperature (°C)

GMP-O

35

0.45

8

/

16

1130×1100×1750

±2

GMP-I

120

0.45

18

2

48

2300×1200×2000

±2

GMP-II

240

0.9

36

4

96

2300×2200×2000

±2

GMP-III

360

1.35

54

6

144

3430×2200×2000

±2

GMP-IV

480

1.8

72

8

192

4460×2200×2290

±2
