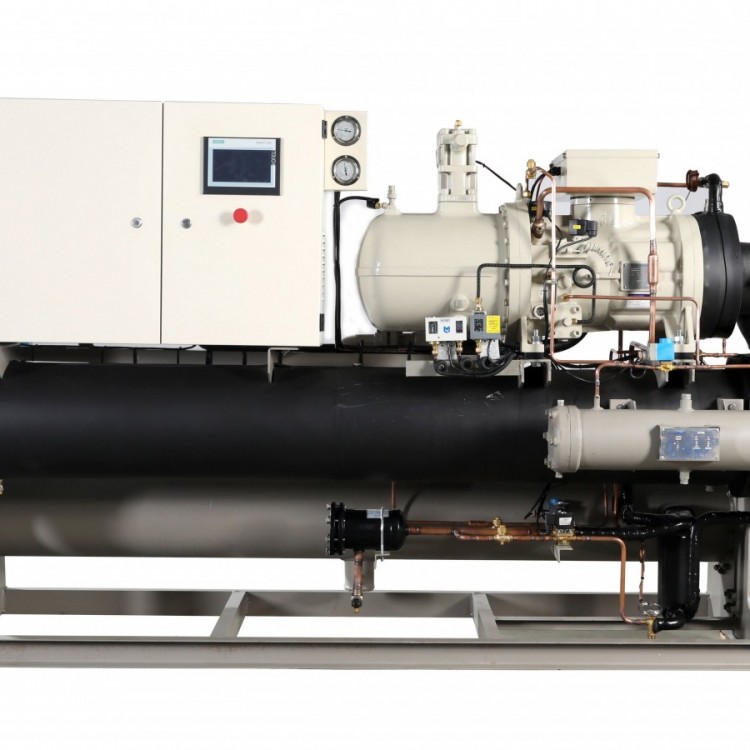

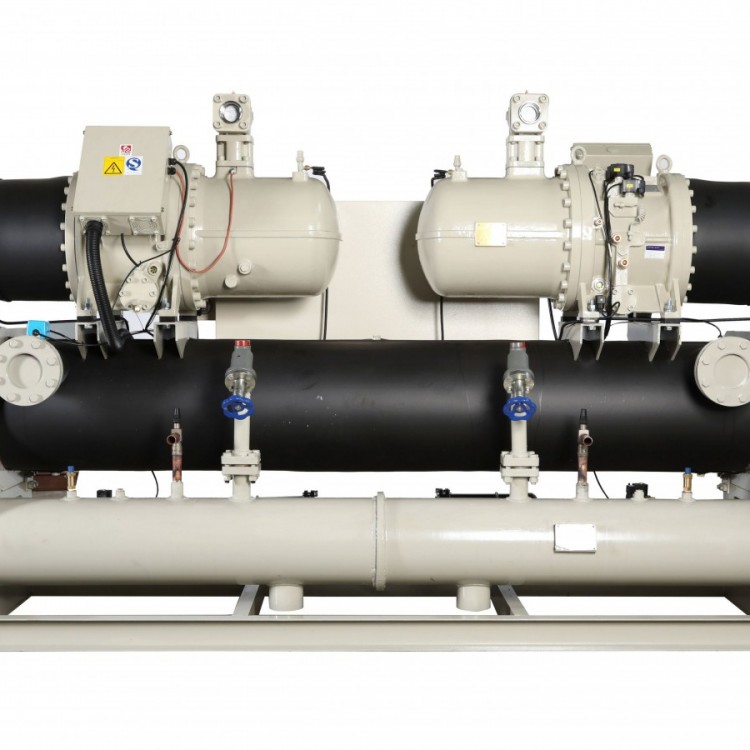

Our company specializes in the research, development, production, and sales of an energy-saving product known as the spray-down film water-cooled screw chiller. It is more energy-efficient than traditional dry-type water-cooled screw chillers and even more so than full-liquid type water-cooled screw chillers. It acts as an evaporator that falls between the dry-type and full-liquid type heat exchangers, commonly referred to as a film evaporator. With mature and stable technology, it operates with high energy efficiency and has been applied in the fields of chemical fiber, food, biopharmaceuticals, electronics, industrial plant air conditioning, and process chilled water systems, significantly reducing energy consumption and delivering excellent economic benefits to customers.
This series of units primarily utilizes spray-down film evaporators, integrated oil separators, electronic expansion valves, and advanced fine control systems. This significantly enhances the heat exchange efficiency of the refrigerant evaporator tubes, reduces the heat exchange temperature difference between the evaporator and water, thereby improving the overall operational performance of the spray-down film water-cooled screw chiller units, achieving energy-saving goals.
Key Features Include:
1. System High Efficiency Energy Saving: More energy-efficient than traditional dry-type evaporators and full-liquid evaporators. Significantly reduces energy consumption for customers, yielding substantial economic benefits.
2. Dedicated Compressor: Utilizes a dedicated spray cooling film-type compressor, equipped with twin-screw design and SKF bearings, ensuring stable operation, low noise, and extended motor lifespan.
3. System refrigerant charge reduced: Spray film evaporator, liquid refrigerant sprayed onto copper tubes, forming a thin refrigerant film, evaporating, energy-saving is significant, with less refrigerant charge compared to full liquid evaporator, achieving good economic and environmental benefits.
4. Oil Separation Technology: Separator utilizing impact and interception oil separation techniques, achieving separation efficiency up to thousands of grades. Utilizes normal oil return to the compressor, ensuring continuous oil supply to the compressor and not affecting the oil film adhesion on the heat exchanger, thereby maintaining heat exchanger efficiency.
5. Advanced Control Technology: Equipped with the latest Siemens PLC programmable touch screen control, supporting remote operation via computer, smartphone, and network communication. This enables factory professionals to provide proactive 24/7 after-sales service, ensuring customers have no concerns and significantly enhancing the professionalism of equipment operation and reducing errors, thereby improving user experience.
6. Comprehensive and advanced overall system protection design: Efficient oil separation, advanced control, ejector pump recirculation, electrical control system protection, water flow, anti-freezing, under-voltage, phase sequence protection are all fully implemented, with quick response, significantly enhancing the stability and safety of the unit's operation.
7. All products pass factory inspection: All equipment undergoes rigorous testing at the factory to maintain optimal overall performance, ensuring each unit is qualified for shipment. Simply boot up on-site is sufficient.
The Spray Film Water-Cooled Screw Chiller has been launched and has received a strong market response, focusing on energy efficiency and high-end performance. For Spray Film Water-Cooled Screw Chiller services, please contact our staff at any time. We will make every effort to provide you with solutions and services.
