Supply Model OOM45-18 Multi-Rotation Electric Actuator, OOM Series Integrated Switch Type
Product Features
Product advantage
I: Overview
The DZW series electric actuators are a new generation of products that our company has improved and optimized the structure of our mature products, enhanced the protective performance and key components, and are entirely self-developed. They feature compact design, small size, attractive appearance, and stable and reliable performance. The high protection grade meets the needs of various designs: explosion-proof, overall switching, and overall regulating types.
The DZW series is used for controlling the opening and closing of valves. Suitable for gate valves, stop valves, check valves, diaphragm valves, its derivative products can be used for ball valves, butterfly valves, and dampers, etc. It can accurately actuate according to control commands, and is an indispensable driving device for remote control, centralized control, and automatic control of valves.
This product's performance meets the requirements of JB/T8528-1997 (Technical Conditions for Electric Actuators of General Valves) and the explosion-proof type meets the specifications of GB3836.1-2000 (Part 1 of Electrical Equipment for Explosive Gas Environment: General Requirements), GB3836.2-2000 (Part 2 of Electrical Equipment for Explosive Gas Environment: Explosion-proof Type "d"), and JB/T8529-1997 (Technical Conditions for Explosion-proof Electric Actuators).
II: Technical Conditions
Z: Integrated Type T: Adjustable Type N: Smart Type
Protection Type: W for Outdoor, B for Explosion-proof
Output Speed: Numeric, unit r/min (revolutions per minute)
Connection Type: T for Thrust Type, I for Power Station Type; Standard Type without Code. Rated Torque: Numerical value, unit kgf.m.
Product Form: Multi-revolution electric device
Power Supply: Motor is 3-phase AC 380V, 50Hz. Control is 2-phase AC 220V, 50Hz.
Optional Power Supply: AC 220~660V, 50/60Hz (to be specified at time of order) 2: Environmental Temperature; -20℃ to +60℃; Optional Temperature: -40℃ to +70℃
3: Relative humidity; not greater than 95% (at 25°C)
4: Working Environment; Standard type for areas without flammable, explosive, and strongly corrosive media; Explosion-proof type (ExdIIBT4) suitable for II A, II B groups of explosive gases, T1-T4 groups
5: Protection Class; IP65/67 (Special Order IP68)
The motor operates in a duty cycle; rated operating time is 10 minutes. F-grade insulation.
7: Corrosion-Resistant Coating: High-Temperature Bake Paint
Product Featuresfeatures
Three: Adjust
Adjusting the torque, during travel, it is essential to check if the potentiometer on the position indicator has been disengaged (simply loosen the set screw on the gear of the potentiometer shaft to disengage) to prevent damage.
Torque control mechanism adjustment:
Firstly, adjust the torque.
(2) Begin with a low torque value and gradually increase it until the valve is fully closed.
(3) Adjust the torque for switch direction based on the valve's operational characteristics; typically, the open direction torque is greater than the close direction torque.
(4) Adjustments are made under conditions of no-load, no medium pressure, etc. When there is pressure and temperature, attention should be given to whether it can be sealed properly. If it cannot be sealed, the torque value should be appropriately increased to ensure it can be tightly sealed and easily opened.
2. Travel control mechanism adjustment:
(1) Manually close the valve tightly.
(2) Disengage the travel control mechanism by using a screwdriver to push the top rod in the travel control mechanism and rotate it 90°, thereby separating the driven small gear from the counter's unit gear set.
(3) Rotate the "OFF" position adjustment shaft with a screwdriver in the direction of the arrow until the cam presses against the spring plate, causing the microswitch to activate. This indicates that the initial "OFF" position travel is properly adjusted.
（4）
At this point, turn a few circles using the electric function, then turn it off. Check if the closing travel meets the requirements. If not, adjust according to the above procedure.
(5) Opening Direction Adjustment: After adjusting the closing direction, manually open the valve to the required position. Then, disengage the stroke control mechanism, rotate the "open" adjustment shaft until the cam engages the spring plate and the microswitch operates. Once the microswitch is activated, engage the stroke mechanism with the driving gear for the opening stroke to be complete. After adjusting the stroke control mechanism, it can be operated repeatedly. Generally, the opening of the valve is controlled at about 90%.
3. Adjustment of the adjustable opening indicator:
(1) Adjust the adjustable opening indicator and remote potentiometer after tuning the gear ratio and travel.

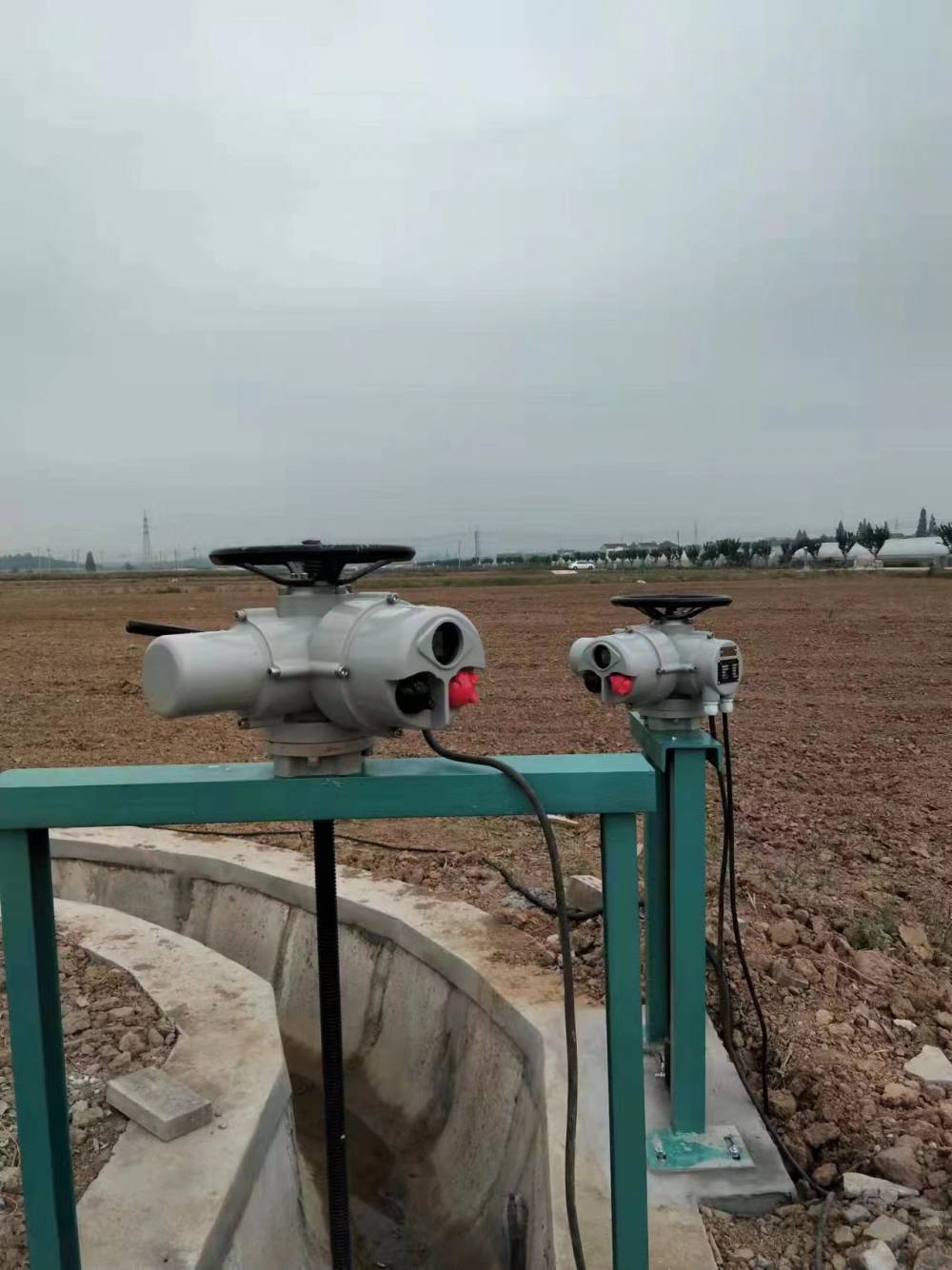

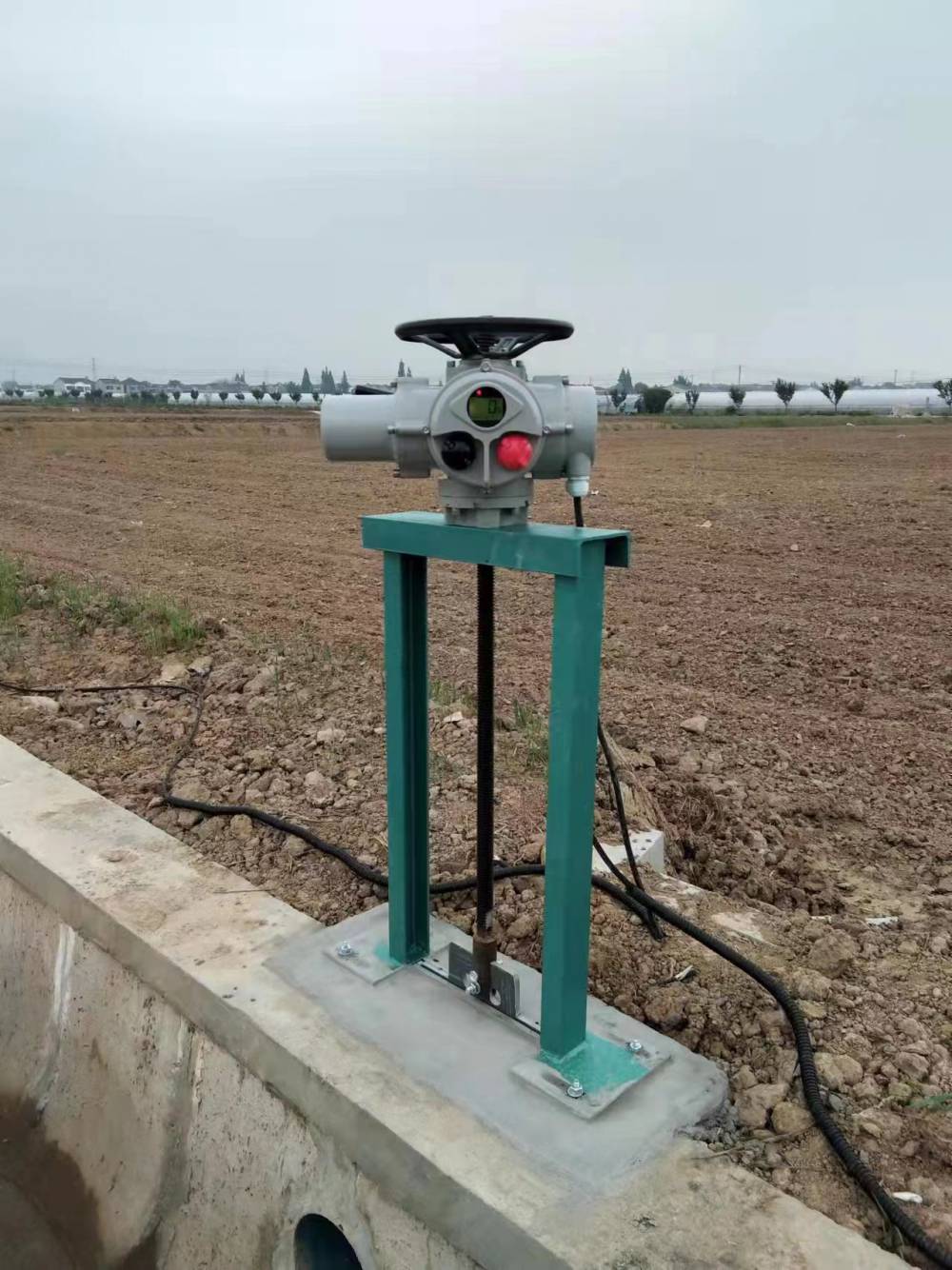

Product detail imagedetails
Su Valve brand electric device
Acid and alkali-resistant electric equipment
DZW60 Electric Unit
Corporate Strengthenterprise
Yangzhou Su Valve Control Equipment Co., Ltd. is located in Yangzhou, a historically and culturally renowned city in our country, and is a professional manufacturer specializing in the research, development, and market sales of electric valve actuators. The company has established a reliable quality assurance system, with product quality standards strictly implemented. Our product range of electric valve actuators is comprehensive, widely used in power, metallurgy, petroleum, chemical, papermaking, and water supply and drainage industries, and has received high praise from customers. For many years, Yangzhou Su Valve Control Equipment Co., Ltd. has adhered to the business philosophy of "Quality, Integrity, and Customer First," gaining recognition from users across various industries, establishing the company's brand image, and creating high-quality products in the electric valve sector. Our products are based in China, facing the world, and distributed in more than 30 provinces, municipalities, and autonomous regions across the country. The company offers comprehensive customer services...
After-Sales Policyafter sale
About Shipment
Subject to customer's requirements
About Returns and Exchanges
If there are any disputes upon receiving the product, please contact us promptly for negotiation and resolution.
Subject to customer's requirements
